File Detail parts/92713k02.dat

Official File parts/92713k02.dat

Part Attributes:

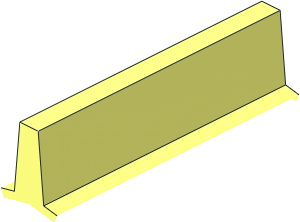

~Conveyor Belt 4 x 16 with 14 Treads - Tread Segment (Formed Circular)

File Header:

0 ~Conveyor Belt  4 x 16 with 14 Treads - Tread Segment (Formed Circular)
0 Name: 92713k02.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part Flexible_Section UPDATE 2018-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2018-12-08 [PTadmin] Official Update 2018-02
