Official File parts/92716.dat
Part Attributes:
File Header:

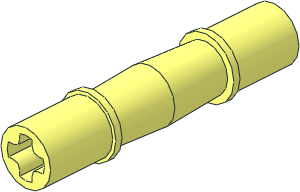

0 Conveyor Belt Drive Axle 4L
0 Name: 92716.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2017-12-16 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2018-12-08 [PTadmin] Official Update 2018-02
0 !HISTORY 2021-12-31 [MagFors] Reshaped axleholes
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
Show contents
1 16 0 0 20 1 0 0 0 0 1 0 -1 0 axl5end.dat
1 16 0 0 20 1 0 0 0 0 -1 0 1 0 axl5hol9.dat
1 16 0 0 20 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 0 0 40 1 0 0 0 0 -1 0 -20 0 axl5hol8.dat
1 16 0 0 40 1 0 0 0 0 -1 0 1 0 axl5hol9.dat
1 16 0 0 40 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 0 0 40 1 0 0 0 0 -1 0 -1 0 axl5ho10.dat
1 16 0 0 40 1 0 0 0 0 -1 0 -1 0 4-4ring6.dat
1 16 0 0 40 1 0 0 0 0 -1 0 -1 0 4-4ring7.dat
1 16 0 0 40 8 0 0 0 0 -8 0 -20 0 4-4cylo.dat
1 16 0 0 20 1 0 0 0 0 -1 0 -1 0 4-4ring8.dat
1 16 0 0 20 9 0 0 0 0 -9 0 -2 0 4-4cylo.dat
1 16 0 0 18 1 0 0 0 0 1 0 1 0 4-4ring8.dat
1 16 0 0 18 1 0 0 0 0 1 0 1 0 4-4ring7.dat
1 16 0 0 18 7 0 0 0 0 7 0 1 0 4-4edge.dat
1 16 0 0 0 -1 0 0 0 0 1 0 18 0 4-4con7.dat
1 16 0 0 0 8 0 0 0 0 8 0 1 0 4-4edge.dat
1 16 0 0 0 1 0 0 0 0 1 0 -18 0 4-4con7.dat
1 16 0 0 -18 7 0 0 0 0 7 0 1 0 4-4edge.dat
1 16 0 0 -18 1 0 0 0 0 1 0 -1 0 4-4ring7.dat
1 16 0 0 -18 1 0 0 0 0 1 0 -1 0 4-4ring8.dat
1 16 0 0 -20 9 0 0 0 0 -9 0 2 0 4-4cylo.dat
1 16 0 0 -20 1 0 0 0 0 -1 0 1 0 4-4ring8.dat
1 16 0 0 -40 8 0 0 0 0 -8 0 20 0 4-4cylo.dat
1 16 0 0 -40 1 0 0 0 0 -1 0 1 0 4-4ring7.dat
1 16 0 0 -40 1 0 0 0 0 -1 0 1 0 4-4ring6.dat
1 16 0 0 -40 1 0 0 0 0 -1 0 1 0 axl5ho10.dat
1 16 0 0 -40 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 0 0 -40 1 0 0 0 0 -1 0 1 0 axl5hol9.dat
1 16 0 0 -40 1 0 0 0 0 -1 0 20 0 axl5hol8.dat
1 16 0 0 -20 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 0 0 -20 1 0 0 0 0 -1 0 1 0 axl5hol9.dat
1 16 0 0 -20 1 0 0 0 0 -1 0 1 0 axl5end.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
