File Detail parts/92946.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/92946.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

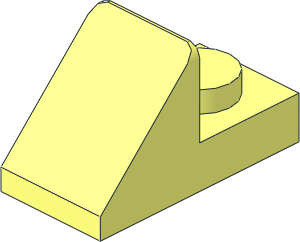

0 Slope Plate 45.73  2 x  1
0 Name: 92946.dat
0 Author: Donald Sutter [technog]
0 !LDRAW_ORG Part UPDATE 2022-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP This isn't an alias of 15672
0 !HELP This part does NOT have the exact same angle as 3040b. 15672 does.
0 !HELP If 92946 were to be redesigned, it has to be made different
0 !HELP due to having a differently angled top surface.
0 !HELP http://rebrickable.com/blog/2016/mysterious-slope

0 BFC CERTIFY CCW

0 !HISTORY 2011-07-25 [PTadmin] Official Update 2011-01
0 !HISTORY 2017-01-06 [Steffen] added note which compares 92946 vs 15672
0 !HISTORY 2021-11-14 [Holly-Wood] Fixed issue raised in the comment, rounded corner
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
