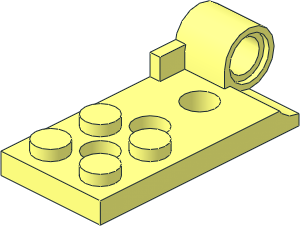

0 Hinge Plate 2 x 4.5 Base with Technic Pin Hole and 3 Holes
0 Name: 98285.dat
0 Author: Tim Gould [timgould]
0 !LDRAW_ORG Part UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2012-12-28 [PTadmin] Official Update 2012-03
0 !HISTORY 2019-12-21 [Philo] Subparted for variants, minor improvements
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\98285s01.dat
1 16 0 4 20 0 0 -1 0 -1 0 1 0 0 stud4h.dat
1 16 0 0 20 0 0 6 0 1 0 6 0 0 4-4ndis.dat
4 16 6 0 14 -6 0 14 -6 0 6 6 0 6
1 16 0 4 20 0 0 8 0 -1 0 8 0 0 4-4ndis.dat
3 16 0 0 30 6 0 26 20 0.005 32.212
4 16 -16 0 30 -6 0 26 6 0 26 0 0 30
4 16 16 4 36 8 4 28 -8 4 28 -16 4 36
4 16 8 4 12 8 4 8 -8 4 8 -8 4 12
3 16 -8 4 28 -8 4 8 -16 4 36
3 16 8 4 8 8 4 28 16 4 36
3 16 -6 0 6 -6 0 26 -16 0 30
3 16 6 0 26 6 0 6 20 0.005 32.212
This part is copyright © Tim Gould
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Philippe Hurbain,
Orion Pobursky,
