Official File parts/98313.dat
Part Attributes:
File Header:

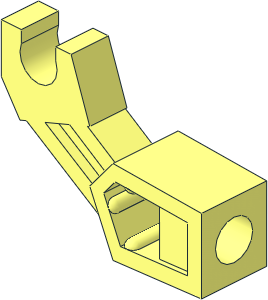

0 Minifig Mechanical Arm with Clip and Rod Hole with Thick Forearm
0 Name: 98313.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2022-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
Show contents
