File Detail parts/985.dat

Official File parts/985.dat

Part Attributes:

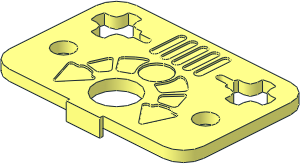

~Technic Axle Joiner 3 x 2 with Axial Torsion Spring - Top

File Header:

0 ~Technic Axle Joiner 3 x 2 with Axial Torsion Spring - Top
0 Name: 985.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2013-06-16 [arezey] Added surface/axlehole details, moved screw hole locations, retitled, BFC'd
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\985s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\985s01.dat
1 16 -20 0 10 1 0 0 0 3 0 0 0 1 s\985s02.dat
1 16 20 0 10 -1 0 0 0 3 0 0 0 1 s\985s02.dat
1 16 -23 0 13 0 0 -6 0 1 0 6 0 0 1-4chrd.dat
1 16 -23 0 -13 -6 0 0 0 1 0 0 0 -6 1-4chrd.dat
1 16 23 0 13 0 0 6 0 1 0 6 0 0 1-4chrd.dat
1 16 23 0 -13 6 0 0 0 1 0 0 0 -6 1-4chrd.dat
0 // Miscellaneous stuff
2 24 29 0 13 29 0 -13
2 24 -29 0 13 -29 0 -13
2 24 -23 0 19 23 0 19
4 16 -23 0 19 23 0 19 23 3 19 -23 3 19
2 24 5 0 -19 23 0 -19
4 16 5 0 -19 5 3 -19 23 3 -19 23 0 -19
4 16 -23 0 -19 -23 3 -19 -5 3 -19 -5 0 -19
2 24 -23 0 -19 -5 0 -19
1 16 -23 0 13 0 0 -6 0 1 0 6 0 0 1-4edge.dat
1 16 -23 3 13 0 0 -6 0 -1 0 6 0 0 1-4chrd.dat
1 16 -23 0 13 0 0 -6 0 3 0 6 0 0 1-4cyli.dat
1 16 23 0 13 6 0 0 0 1 0 0 0 6 1-4edge.dat
1 16 23 3 13 6 0 0 0 -1 0 0 0 6 1-4chrd.dat
1 16 23 0 13 6 0 0 0 3 0 0 0 6 1-4cyli.dat
1 16 23 0 -13 0 0 6 0 1 0 -6 0 0 1-4edge.dat
1 16 0 0 -10 0 0 -6 0 1 0 6 0 0 4-4edge.dat
1 16 0 3 -10 0 0 -6 0 -1 0 6 0 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 0 -10 0 0 -6 0 3 0 6 0 0 4-4cyli.dat
1 16 0 3 -10 0 0 -6 0 1 0 6 0 0 4-4edge.dat
1 16 23 3 -13 0 0 6 0 -1 0 -6 0 0 1-4chrd.dat
1 16 23 0 -13 0 0 6 0 3 0 -6 0 0 1-4cyli.dat
1 16 -23 0 -13 -6 0 0 0 1 0 0 0 -6 1-4edge.dat
1 16 -23 3 -13 -6 0 0 0 -1 0 0 0 -6 1-4chrd.dat
1 16 -23 0 -13 -6 0 0 0 3 0 0 0 -6 1-4cyli.dat
2 24 29 3 13 29 3 -13
4 16 29 3 13 29 0 13 29 0 -13 29 3 -13
4 16 -29 3 13 -29 3 -13 -29 0 -13 -29 0 13
2 24 -29 3 13 -29 3 -13
2 24 -23 3 19 23 3 19
2 24 -23 3 -19 23 3 -19
1 16 -23 3 13 0 0 -6 0 1 0 6 0 0 1-4edge.dat
1 16 23 3 13 6 0 0 0 1 0 0 0 6 1-4edge.dat
1 16 23 3 -13 0 0 6 0 1 0 -6 0 0 1-4edge.dat
1 16 -23 3 -13 -6 0 0 0 1 0 0 0 -6 1-4edge.dat
2 24 -5 0 -20 5 0 -20
4 16 -5 0 -20 5 0 -20 5 0 -19 -5 0 -19
4 16 -5 5 -20 -5 5 -19 5 5 -19 5 5 -20
2 24 -5 5 -20 5 5 -20
4 16 -5 5 -19 -5 3 -19 5 3 -19 5 5 -19
4 16 -5 5 -20 5 5 -20 5 0 -20 -5 0 -20
2 24 -5 5 -19 5 5 -19
2 24 -5 5 -20 -5 5 -19
2 24 5 5 -20 5 5 -19
4 16 5 5 -20 5 5 -19 5 0 -19 5 0 -20
4 16 -5 5 -20 -5 0 -20 -5 0 -19 -5 5 -19
2 24 5 0 -20 5 0 -19
2 24 -5 0 -20 -5 0 -19
2 24 -5 0 -20 -5 5 -20
2 24 5 0 -20 5 5 -20
2 24 5 0 -19 5 5 -19
2 24 -5 0 -19 -5 5 -19
0 // Hole for screw
1 16 -21.2 0 -4.6 0 0 -3 0 1 0 3 0 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 -21.2 0 -4.6 0 0 -3 0 3 0 3 0 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 -21.2 3 -4.6 0 0 -2 0 2 0 2 0 0 4-4cylo.dat
1 16 -21.2 3 -4.6 0 0 -4 0 2 0 4 0 0 4-4cylo.dat
1 16 -21.2 3 -4.6 0 0 -4 0 -1 0 4 0 0 4-4ndis.dat
1 16 -21.2 3 -4.6 0 0 -1 0 1 0 1 0 0 4-4ring2.dat
1 16 -21.2 5 -4.6 0 0 -2 0 -1 0 2 0 0 4-4ring1.dat
1 16 21.2 0 -4.6 0 0 -3 0 1 0 3 0 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 21.2 0 -4.6 0 0 -3 0 3 0 3 0 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 21.2 3 -4.6 0 0 -2 0 2 0 2 0 0 4-4cylo.dat
1 16 21.2 3 -4.6 0 0 -4 0 2 0 4 0 0 4-4cylo.dat
1 16 21.2 3 -4.6 0 0 -4 0 -1 0 4 0 0 4-4ndis.dat
1 16 21.2 3 -4.6 0 0 -1 0 1 0 1 0 0 4-4ring2.dat
1 16 21.2 5 -4.6 0 0 -2 0 -1 0 2 0 0 4-4ring1.dat
0 // Top surface
4 16 -29 3 -13 -25.2 3 -8.6 -17.2 3 -8.6 -23 3 -19
4 16 -29 3 -13 -29 3 13 -25.2 3 -0.6 -25.2 3 -8.6
3 16 -29 3 13 -26 3 16 -26 3 4
3 16 -29 3 13 -26 3 4 -25.2 3 -0.6
4 16 -25.2 3 -0.6 -26 3 4 -20 3 4 -17.2 3 -0.6
3 16 -23 3 -19 -17.2 3 -8.6 -6 3 -16
4 16 -23 3 -19 -6 3 -16 0 3 -16 0 3 -19
4 16 -17.2 3 -8.6 -17.2 3 -0.6 -6 3 -4 -6 3 -16
3 16 -17.2 3 -0.6 -20 3 4 -17.704 3 4.457
3 16 -17.2 3 -0.6 -17.704 3 4.457 -15.757 3 5.757
4 16 -17.2 3 -0.6 -15.757 3 5.757 0 3 -4 -6 3 -4
3 16 0 3 -4 -15.757 3 5.757 -14.457 3 7.704
3 16 0 3 -4 -14.457 3 7.704 -14.398 3 8
4 16 0 3 -4 -14.398 3 8 -14 3 9 -10 3 9
4 16 29 3 -13 23 3 -19 17.2 3 -8.6 25.2 3 -8.6
4 16 29 3 -13 25.2 3 -8.6 25.2 3 -0.6 29 3 13
3 16 29 3 13 26 3 4 26 3 16
3 16 29 3 13 25.2 3 -0.6 26 3 4
4 16 25.2 3 -0.6 17.2 3 -0.6 20 3 4 26 3 4
3 16 23 3 -19 6 3 -16 17.2 3 -8.6
4 16 23 3 -19 0 3 -19 0 3 -16 6 3 -16
4 16 17.2 3 -8.6 6 3 -16 6 3 -4 17.2 3 -0.6
3 16 17.2 3 -0.6 17.704 3 4.457 20 3 4
3 16 17.2 3 -0.6 15.757 3 5.757 17.704 3 4.457
4 16 17.2 3 -0.6 6 3 -4 0 3 -4 15.757 3 5.757
3 16 0 3 -4 14.457 3 7.704 15.757 3 5.757
3 16 0 3 -4 14.398 3 8 14.457 3 7.704
4 16 0 3 -4 10 3 9 14 3 9 14.398 3 8
4 16 -26 3 16 -23 3 19 23 3 19 26 3 16
3 16 -10 3 9 10 3 9 0 3 -4
4 16 -10 3 9 -10 3 11 10 3 11 10 3 9
4 16 -20 3 16 20 3 16 17.704 3 15.543 -17.704 3 15.543
4 16 -15.757 3 14.243 -17.704 3 15.543 17.704 3 15.543 15.757 3 14.243
4 16 -15.757 3 14.243 15.757 3 14.243 14.457 3 12.296 -14.457 3 12.296
4 16 -14.457 3 12.296 14.457 3 12.296 14.398 3 12 -14.398 3 12
4 16 -14 3 11 -14.398 3 12 14.398 3 12 14 3 11
1 16 -20 3 10 -6 0 0 0 -1 0 0 0 6 1-4ndis.dat
1 16 20 3 10 6 0 0 0 -1 0 0 0 6 1-4ndis.dat
