File Detail parts/986.dat

Official File parts/986.dat

Part Attributes:

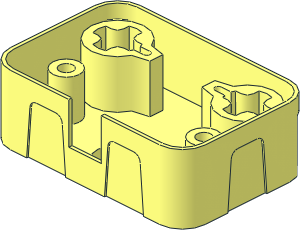

~Technic Axle Joiner 3 x 2 with Spring - Housing Bottom

File Header:

0 ~Technic Axle Joiner  3 x  2 with Spring - Housing Bottom
0 Name: 986.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2013-06-16 [arezey] Added surface/axlehole details, moved screw hole locations, retitled
0 !HISTORY 2013-09-02 [MagFors] Rectified, boxified, removed some t-junctions
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02

Show contents
