Official File parts/t1044.dat
Part Attributes:
File Header:

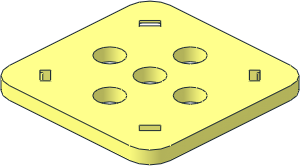

0 ~| Circuit Cubes Bottom Plate
0 Name: t1044.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2022-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Electric
0 !HISTORY 2022-09-15 [PTadmin] Official Update 2022-05
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\t1044s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\t1044s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\t1044s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\t1044s01.dat
3 16 0 0 28 -1 0 36 1 0 36
4 16 19 0 36 -19 0 36 -30 0 40 30 0 40
1 16 0 -3 40 -30 0 0 0 0 -3 0 -1 0 rect2p.dat
3 16 -30 -6 40 0 -6 26 30 -6 40
0 BFC INVERTNEXT
1 16 0 0 20 6 0 0 0 -6 0 0 0 6 4-4cylo.dat
1 16 0 0 20 2 0 0 0 -1 0 0 0 2 4-4ring3.dat
3 16 28 0 0 36 0 1 36 0 -1
4 16 36 0 -19 36 0 19 40 0 30 40 0 -30
1 16 40 -3 0 0 -1 0 0 0 -3 30 0 0 rect2p.dat
3 16 40 -6 30 26 -6 0 40 -6 -30
0 BFC INVERTNEXT
1 16 20 0 0 0 0 6 0 -6 0 -6 0 0 4-4cylo.dat
1 16 20 0 0 0 0 2 0 -1 0 -2 0 0 4-4ring3.dat
3 16 0 0 -28 1 0 -36 -1 0 -36
4 16 -19 0 -36 19 0 -36 30 0 -40 -30 0 -40
1 16 0 -3 -40 30 0 0 0 0 -3 0 1 0 rect2p.dat
3 16 30 -6 -40 0 -6 -26 -30 -6 -40
0 BFC INVERTNEXT
1 16 0 0 -20 -6 0 0 0 -6 0 0 0 -6 4-4cylo.dat
1 16 0 0 -20 -2 0 0 0 -1 0 0 0 -2 4-4ring3.dat
3 16 -28 0 0 -36 0 -1 -36 0 1
4 16 -36 0 19 -36 0 -19 -40 0 -30 -40 0 30
1 16 -40 -3 0 0 1 0 0 0 -3 -30 0 0 rect2p.dat
3 16 -40 -6 -30 -26 -6 0 -40 -6 30
0 BFC INVERTNEXT
1 16 -20 0 0 0 0 -6 0 -6 0 6 0 0 4-4cylo.dat
1 16 -20 0 0 0 0 -2 0 -1 0 2 0 0 4-4ring3.dat
0 BFC INVERTNEXT
1 16 0 0 0 0 0 -6 0 -6 0 6 0 0 4-4cylo.dat
1 16 0 0 0 0 0 -2 0 -1 0 2 0 0 4-4ring3.dat
5 24 16.9386 0 27.391 16.9386 -5 27.391 19 -5 28 14.343 0 25.657
5 24 3.0614 -5 27.391 3.0614 0 27.391 1 -5 28 5.657 0 25.657
5 24 7.391 0 23.0615 7.391 -5 23.0615 8 0 21 5.657 0 25.657
5 24 12.609 -5 23.0615 12.609 0 23.0615 12 0 21 14.343 -5 25.657
5 24 27.391 -5 16.9386 27.391 0 16.9386 28 0 19 25.657 0 14.343
5 24 27.391 0 3.0614 27.391 -5 3.0614 28 -5 1 25.657 0 5.657
5 24 23.0615 -5 7.391 23.0615 0 7.391 21 0 8 25.657 -5 5.657
5 24 23.0615 0 12.609 23.0615 -5 12.609 21 0 12 25.657 0 14.343
5 24 7.391 -5 16.9385 7.391 0 16.9385 8 0 19 5.657 -5 14.343
5 24 12.609 0 16.9385 12.609 -5 16.9385 12 0 19 14.343 0 14.343
5 24 16.9385 -5 12.609 16.9385 0 12.609 19 0 12 14.343 0 14.343
5 24 16.9385 0 7.391 16.9385 -5 7.391 19 0 8 14.343 0 5.657
5 24 12.609 -5 3.0615 12.609 0 3.0615 12 0 1 14.343 0 5.657
5 24 7.391 0 3.0615 7.391 -5 3.0615 8 0 1 5.657 0 5.657
5 24 3.0615 0 12.609 3.0615 -5 12.609 1 0 12 5.657 0 14.343
5 24 3.0615 -5 7.391 3.0615 0 7.391 1 0 8 5.657 0 5.657
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
