File Detail parts/t1052c06-f1.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/t1052c06-f1.dat

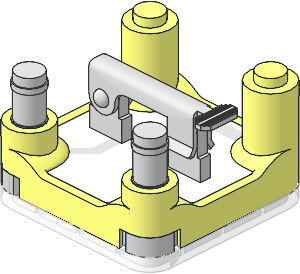

0 | Circuit Cubes Knife Switch (Closed)
0 Name: t1052c06-f1.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Shortcut UPDATE 2022-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Electric

0 !HISTORY 2022-09-15 [PTadmin] Official Update 2022-05

Show file code:

0 // Cover

1 16 0 0 0 1 0 0 0 1 0 0 0 1 t1052.dat
0 // Base
1 47 0 48 0 -1 0 0 0 1 0 0 0 -1 t1044.dat

0 // Metal Posts
1 494 30 0 -30 -1 0 0 0 1 0 0 0 -1 t1045.dat
1 494 -30 0 -30 -1 0 0 0 1 0 0 0 -1 t1045.dat

0 // Side contacts
1 494 -30 34 -30 -1 0 0 0 1 0 0 0 -1 t1048.dat
1 494 30 34 -30 0 0 1 0 1 0 -1 0 0 t1048.dat

0 // PCB
1 15 0 34 0 -1 0 0 0 1 0 0 0 -1 t1053p04.dat

0 // bottom contacts
1 494 30 34 -30 0.70711 0 0.70711 0 1 0 -0.70711 0 0.70711 t1049.dat
1 494 -30 34 -30 -0.70711 0 0.70711 0 1 0 -0.70711 0 -0.70711 t1049.dat
1 494 -30 34 30 -0.70711 0 -0.70711 0 1 0 0.70711 0 -0.70711 t1049.dat
1 494 30 34 30 0.70711 0 -0.70711 0 1 0 0.70711 0 0.70711 t1049.dat

0 // Magnets
1 494 30 34 -30 0.70711 0 0.70711 0 1 0 -0.70711 0 0.70711 t1050.dat
1 494 -30 34 -30 -0.70711 0 0.70711 0 1 0 -0.70711 0 -0.70711 t1050.dat
1 494 -30 34 30 -0.70711 0 -0.70711 0 1 0 0.70711 0 -0.70711 t1050.dat
1 494 30 34 30 0.70711 0 -0.70711 0 1 0 0.70711 0 0.70711 t1050.dat

0 // Pins
1 494 -19.5 29.5 0 1 0 0 0 1 0 0 0 1 t1098.dat
1 494 19.5 29.5 0 1 0 0 0 1 0 0 0 1 t1098.dat

0 // Lever
1 494 -19.5 13.5 0 1 0 0 0 1 0 0 0 1 t1099.dat
