Official File parts/t1052c06-f2.dat
Part Attributes:
Base Part: t1052.dat
File Header:

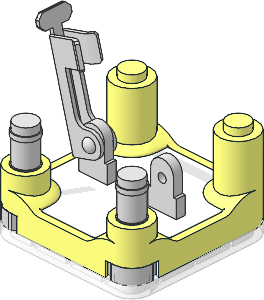

0 | Circuit Cubes Knife Switch (Opened)
0 Name: t1052c06-f2.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Shortcut UPDATE 2022-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Electric
0 !HISTORY 2022-09-15 [PTadmin] Official Update 2022-05
Show contents
0 // Cover
1 16 0 0 0 1 0 0 0 1 0 0 0 1 t1052.dat
0 // Base
1 47 0 48 0 -1 0 0 0 1 0 0 0 -1 t1044.dat
0 // Metal Posts
1 494 30 0 -30 -1 0 0 0 1 0 0 0 -1 t1045.dat
1 494 -30 0 -30 -1 0 0 0 1 0 0 0 -1 t1045.dat
0 // Side contacts
1 494 -30 34 -30 -1 0 0 0 1 0 0 0 -1 t1048.dat
1 494 30 34 -30 0 0 1 0 1 0 -1 0 0 t1048.dat
0 // PCB
1 15 0 34 0 -1 0 0 0 1 0 0 0 -1 t1053p03.dat
0 // bottom contacts
1 494 30 34 -30 0.70711 0 0.70711 0 1 0 -0.70711 0 0.70711 t1049.dat
1 494 -30 34 -30 -0.70711 0 0.70711 0 1 0 -0.70711 0 -0.70711 t1049.dat
1 494 -30 34 30 -0.70711 0 -0.70711 0 1 0 0.70711 0 -0.70711 t1049.dat
1 494 30 34 30 0.70711 0 -0.70711 0 1 0 0.70711 0 0.70711 t1049.dat
0 // Magnets
1 494 30 34 -30 0.70711 0 0.70711 0 1 0 -0.70711 0 0.70711 t1050.dat
1 494 -30 34 -30 -0.70711 0 0.70711 0 1 0 -0.70711 0 -0.70711 t1050.dat
1 494 -30 34 30 -0.70711 0 -0.70711 0 1 0 0.70711 0 -0.70711 t1050.dat
1 494 30 34 30 0.70711 0 -0.70711 0 1 0 0.70711 0 0.70711 t1050.dat
0 // Pins
1 494 -19.5 29.5 0 1 0 0 0 1 0 0 0 1 t1098.dat
1 494 19.5 29.5 0 1 0 0 0 1 0 0 0 1 t1098.dat
0 // Lever
1 494 -19.5 13.5 0 -0.25882 0.96593 0 -0.96593 -0.25882 0 0 0 1 t1099.dat
