Official File parts/t1108.dat
Part Attributes:
File Header:

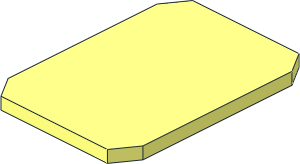

0 ~| Circuit Cubes Buzzer Bottom Plate
0 Name: t1108.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2022-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Electric
0 !HISTORY 2022-09-15 [PTadmin] Official Update 2022-05
Show contents
4 16 15 0 -27 -15 0 -27 -19 0 -21 19 0 -21
1 16 0 0 0 0 0 19 0 -1 0 21 0 0 rect2p.dat
4 16 19 0 21 -19 0 21 -15 0 27 15 0 27
4 16 -19 -3.2 -21 -15 -3.2 -27 15 -3.2 -27 19 -3.2 -21
1 16 0 -3.2 0 0 0 19 0 1 0 -21 0 0 rect2p.dat
4 16 -15 -3.2 27 -19 -3.2 21 19 -3.2 21 15 -3.2 27
1 16 -17 -1.6 -24 0 1 2 1.6 0 0 0 0 -3 rect.dat
1 16 17 -1.6 -24 0 -1 -2 -1.6 0 0 0 0 -3 rect.dat
1 16 17 -1.6 24 0 -1 -2 1.6 0 0 0 0 3 rect.dat
1 16 -17 -1.6 24 0 1 2 -1.6 0 0 0 0 3 rect.dat
1 16 0 -1.6 -27 -15 0 0 0 0 1.6 0 1 0 rect2p.dat
4 16 19 0 21 19 -3.2 21 19 -3.2 -21 19 0 -21
1 16 0 -1.6 27 15 0 0 0 0 1.6 0 -1 0 rect2p.dat
4 16 -19 0 -21 -19 -3.2 -21 -19 -3.2 21 -19 0 21
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
