Official File parts/u8013.dat
Part Attributes:
File Header:

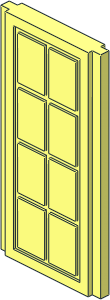

0 ~Mursten Door 1 x 2 x 4 with 8 Panes (Obsolete)
0 Name: u8013.dat
0 Author: J.C. Tchang [tchang]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Obsolete
0 !KEYWORDS Automatic Binding Brick, Lego Mursten
0 !HISTORY 2012-12-28 [PTadmin] Official Update 2012-03
0 !HISTORY 2021-04-23 [PTadmin] Obsoleted and replaced by two-sided u8040
0 !HISTORY 2022-09-15 [PTadmin] Official Update 2022-05
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
1 16 0 0 0 -20 0 0 0 1 0 0 0 -4 rect2p.dat
1 16 -22 0 0 0 0 -2 0 1 0 2 0 0 rect3.dat
1 16 22 0 0 0 0 2 0 1 0 2 0 0 rect3.dat
1 16 0 96 0 20 0 0 0 -1 0 0 0 -4 rect2p.dat
1 16 22 96 0 0 0 2 0 -1 0 2 0 0 rect3.dat
1 16 -22 96 0 0 0 -2 0 -1 0 2 0 0 rect3.dat
0
1 16 -20 48 0 0 -4 0 48 0 0 0 0 2 box3u8p.dat
1 16 -20 48 -3 0 1 0 48 0 0 0 0 -1 rect3.dat
1 16 -20 48 3 0 1 0 -48 0 0 0 0 1 rect3.dat
1 16 20 48 0 0 4 0 48 0 0 0 0 -2 box3u8p.dat
1 16 20 48 3 0 -1 0 48 0 0 0 0 1 rect3.dat
1 16 20 48 -3 0 -1 0 -48 0 0 0 0 -1 rect3.dat
0
4 16 -16 4 -4 16 4 -4 20 0 -4 -20 0 -4
4 16 16 92 -4 -16 92 -4 -20 96 -4 20 96 -4
4 16 16 4 -4 16 92 -4 20 96 -4 20 0 -4
4 16 -16 92 -4 -16 4 -4 -20 0 -4 -20 96 -4
4 16 16 4 4 -16 4 4 -20 0 4 20 0 4
4 16 -16 92 4 16 92 4 20 96 4 -20 96 4
4 16 -16 4 4 -16 92 4 -20 96 4 -20 0 4
4 16 16 92 4 16 4 4 20 0 4 20 96 4
0
0 BFC INVERTNEXT
1 16 0 48 -4 16 0 0 0 0 -44 0 1 0 box5.dat
1 16 -7.5 15.75 -3 -6.5 0 0 0 0 -9.75 0 -1 0 box5.dat
1 16 7.5 15.75 -3 -6.5 0 0 0 0 -9.75 0 -1 0 box5.dat
1 16 -7.5 37.55 -3 -6.5 0 0 0 0 -9.75 0 -1 0 box5.dat
1 16 7.5 37.55 -3 -6.5 0 0 0 0 -9.75 0 -1 0 box5.dat
1 16 -7.5 59.05 -3 -6.5 0 0 0 0 -9.75 0 -1 0 box5.dat
1 16 7.5 59.05 -3 -6.5 0 0 0 0 -9.75 0 -1 0 box5.dat
1 16 -7.5 80.55 -3 -6.5 0 0 0 0 -9.75 0 -1 0 box5.dat
1 16 7.5 80.55 -3 -6.5 0 0 0 0 -9.75 0 -1 0 box5.dat
0
0 BFC INVERTNEXT
1 16 0 48 4 -16 0 0 0 0 -44 0 -1 0 box5.dat
1 16 7.5 15.75 3 6.5 0 0 0 0 -9.75 0 1 0 box5.dat
1 16 -7.5 15.75 3 6.5 0 0 0 0 -9.75 0 1 0 box5.dat
1 16 7.5 37.55 3 6.5 0 0 0 0 -9.75 0 1 0 box5.dat
1 16 -7.5 37.55 3 6.5 0 0 0 0 -9.75 0 1 0 box5.dat
1 16 7.5 59.05 3 6.5 0 0 0 0 -9.75 0 1 0 box5.dat
1 16 -7.5 59.05 3 6.5 0 0 0 0 -9.75 0 1 0 box5.dat
1 16 7.5 80.55 3 6.5 0 0 0 0 -9.75 0 1 0 box5.dat
1 16 -7.5 80.55 3 6.5 0 0 0 0 -9.75 0 1 0 box5.dat
0
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © J.C. Tchang
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
