Official File parts/u8026.dat
Part Attributes:
File Header:

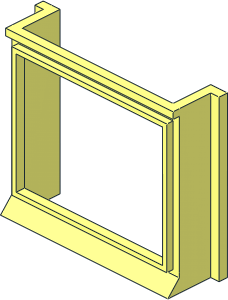

0 Mursten Window 1 x 4 x 3
0 Name: u8026.dat
0 Author: J.C. Tchang [tchang]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Window
0 !KEYWORDS Automatic Binding Brick
0 !HISTORY 2019-09-09 [PTadmin] Official Update 2019-02
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
0 BFC INVERTNEXT
1 16 0 35 -10 35 0 0 0 0 27 0 4 0 box4.dat
1 16 0 35 -10 37 0 0 0 0 29 0 3 0 box4.dat
4 16 -37 6 -10 -35 8 -10 35 8 -10 37 6 -10
4 16 -35 62 -10 -37 64 -10 37 64 -10 35 62 -10
4 16 37 6 -10 35 8 -10 35 62 -10 37 64 -10
4 16 -37 64 -10 -35 62 -10 -35 8 -10 -37 6 -10
1 16 0 1.5 -10 40 0 0 0 0 -1.5 0 3 0 box4o4a.dat
4 16 -40 0 -10 -40 3 -10 40 3 -10 40 0 -10
1 16 0 65 -7 -40 0 0 0 0 1 0 1 0 rect3.dat
2 24 40 3 -7 -40 3 -7
4 16 -40 3 -7 -37 6 -7 37 6 -7 40 3 -7
2 24 -40 3 -7 -40 64 -7
4 16 -37 6 -7 -40 3 -7 -40 64 -7 -37 64 -7
2 24 40 3 -7 40 64 -7
4 16 37 64 -7 40 64 -7 40 3 -7 37 6 -7
4 16 40 72 -6 40 72 -7 -40 72 -7 -40 72 -6
4 16 36 62 -6 36 72 -6 -36 72 -6 -36 62 -6
4 16 35 8 -6 36 8 -6 36 62 -6 35 62 -6
4 16 -35 62 -6 -36 62 -6 -36 8 -6 -35 8 -6
4 16 36 0 -6 36 8 -6 -36 8 -6 -36 0 -6
2 24 -36 72 -6 36 72 -6
2 24 -36 72 -6 -36 0 -6
2 24 36 72 -6 36 0 -6
2 24 36 0 -6 -36 0 -6
4 16 -40 0 -7 40 0 -7 40 0 -6 -40 0 -6
1 16 -40 36 0.5 0 1 0 -36 0 0 0 0 7.5 rect3.dat
1 16 40 36 0.5 0 -1 0 36 0 0 0 0 7.5 rect3.dat
1 16 38 36 -6 0 0 -2 -36 0 0 0 18 0 box4-7a.dat
1 16 -38 36 -6 0 0 2 36 0 0 0 18 0 box4-7a.dat
1 16 -44 36 10 0 4 0 -36 0 0 0 0 2 box4o4a.dat
4 16 -44 72 12 -44 72 8 -44 0 8 -44 0 12
1 16 44 36 10 0 -4 0 -36 0 0 0 0 -2 box4o4a.dat
4 16 44 72 8 44 72 12 44 0 12 44 0 8
1 16 0 72 -9.7 40 0 0 0 -1 0 0 0 -2.75 rect3.dat
4 16 40 72 -12.5 40 66 -7 -40 66 -7 -40 72 -12.5
3 16 -40 66 -7 -40 72 -7 -40 72 -12.5
3 16 40 72 -12.5 40 72 -7 40 66 -7
2 24 -40 72 -12.5 -40 66 -7
2 24 40 72 -12.5 40 66 -7
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © J.C. Tchang
Licensed under CC BY 4.0
