Official File parts/u8027.dat
Part Attributes:
File Header:

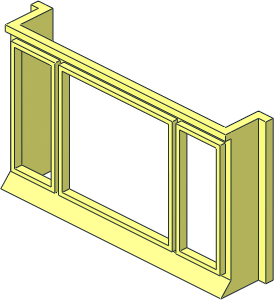

0 Mursten Window 1 x 6 x 3 Triple
0 Name: u8027.dat
0 Author: J.C. Tchang [tchang]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Window
0 !KEYWORDS Automatic Binding Brick
0 !HISTORY 2019-09-09 [PTadmin] Official Update 2019-02
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
0 BFC INVERTNEXT
1 16 0 35 -10 29 0 0 0 0 27 0 4 0 box4.dat
1 16 0 35 -10 31 0 0 0 0 29 0 3 0 box4.dat
4 16 -31 6 -10 -29 8 -10 29 8 -10 31 6 -10
4 16 -29 62 -10 -31 64 -10 31 64 -10 29 62 -10
4 16 31 6 -10 29 8 -10 29 62 -10 31 64 -10
4 16 -31 64 -10 -29 62 -10 -29 8 -10 -31 6 -10
0 BFC INVERTNEXT
1 16 -45 35 -10 10 0 0 0 0 27 0 4 0 box4.dat
1 16 -45 35 -10 12 0 0 0 0 29 0 3 0 box4.dat
4 16 -57 6 -10 -55 8 -10 -35 8 -10 -33 6 -10
4 16 -55 62 -10 -57 64 -10 -33 64 -10 -35 62 -10
4 16 -33 6 -10 -35 8 -10 -35 62 -10 -33 64 -10
4 16 -57 64 -10 -55 62 -10 -55 8 -10 -57 6 -10
0 BFC INVERTNEXT
1 16 45 35 -10 10 0 0 0 0 27 0 4 0 box4.dat
1 16 45 35 -10 12 0 0 0 0 29 0 3 0 box4.dat
4 16 33 6 -10 35 8 -10 55 8 -10 57 6 -10
4 16 35 62 -10 33 64 -10 57 64 -10 55 62 -10
4 16 57 6 -10 55 8 -10 55 62 -10 57 64 -10
4 16 33 64 -10 35 62 -10 35 8 -10 33 6 -10
1 16 0 1.5 -10 60 0 0 0 0 -1.5 0 3 0 box4o4a.dat
4 16 -60 0 -10 -60 3 -10 60 3 -10 60 0 -10
1 16 0 65 -7 -60 0 0 0 0 1 0 1 0 rect3.dat
2 24 60 3 -7 -60 3 -7
4 16 -60 3 -7 -57 6 -7 57 6 -7 60 3 -7
2 24 -60 3 -7 -60 64 -7
4 16 -57 6 -7 -60 3 -7 -60 64 -7 -57 64 -7
2 24 60 3 -7 60 64 -7
4 16 57 64 -7 60 64 -7 60 3 -7 57 6 -7
4 16 31 64 -7 33 64 -7 33 6 -7 31 6 -7
4 16 -31 6 -7 -33 6 -7 -33 64 -7 -31 64 -7
4 16 60 72 -6 60 72 -7 -60 72 -7 -60 72 -6
4 16 56 62 -6 56 72 -6 -56 72 -6 -56 62 -6
4 16 55 8 -6 56 8 -6 56 62 -6 55 62 -6
4 16 -55 62 -6 -56 62 -6 -56 8 -6 -55 8 -6
4 16 56 0 -6 56 8 -6 -56 8 -6 -56 0 -6
4 16 29 8 -6 35 8 -6 35 62 -6 29 62 -6
4 16 -29 62 -6 -35 62 -6 -35 8 -6 -29 8 -6
2 24 -56 72 -6 56 72 -6
2 24 -56 72 -6 -56 0 -6
2 24 56 72 -6 56 0 -6
2 24 56 0 -6 -56 0 -6
4 16 -60 0 -7 60 0 -7 60 0 -6 -60 0 -6
1 16 -60 36 0.5 0 1 0 -36 0 0 0 0 7.5 rect3.dat
1 16 60 36 0.5 0 -1 0 36 0 0 0 0 7.5 rect3.dat
1 16 58 36 -6 0 0 -2 -36 0 0 0 18 0 box4-7a.dat
1 16 -58 36 -6 0 0 2 36 0 0 0 18 0 box4-7a.dat
1 16 -64 36 10 0 4 0 -36 0 0 0 0 2 box4o4a.dat
4 16 -64 72 12 -64 72 8 -64 0 8 -64 0 12
1 16 64 36 10 0 -4 0 -36 0 0 0 0 -2 box4o4a.dat
4 16 64 72 8 64 72 12 64 0 12 64 0 8
1 16 0 72 -9.7 60 0 0 0 -1 0 0 0 -2.75 rect3.dat
4 16 60 72 -12.5 60 66 -7 -60 66 -7 -60 72 -12.5
3 16 -60 66 -7 -60 72 -7 -60 72 -12.5
3 16 60 72 -12.5 60 72 -7 60 66 -7
2 24 -60 72 -12.5 -60 66 -7
2 24 60 72 -12.5 60 66 -7
