Official File parts/u8029.dat
Part Attributes:
File Header:

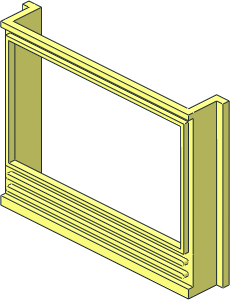

0 ~Mursten Window 1 x 6 x 4 Panorama
0 Name: u8029.dat
0 Author: J.C. Tchang [tchang]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Window
0 !KEYWORDS Automatic Binding Brick, Lego Mursten
0 !HISTORY 2013-12-23 [PTadmin] Official Update 2013-02
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
0 BFC INVERTNEXT
1 16 0 40 -10 55 0 0 0 0 32 0 4 0 box4.dat
1 16 0 40 -10 57 0 0 0 0 34 0 3 0 box4.dat
4 16 -57 6 -10 -55 8 -10 55 8 -10 57 6 -10
4 16 -55 72 -10 -57 74 -10 57 74 -10 55 72 -10
4 16 57 6 -10 55 8 -10 55 72 -10 57 74 -10
4 16 -57 74 -10 -55 72 -10 -55 8 -10 -57 6 -10
1 16 0 85.75 -7 55.75 0 0 0 0 1.25 0 -3 0 box3u8p.dat
1 16 55.75 85.75 -7 0 0 1.25 -1.25 0 0 0 -3 0 2-4cyli.dat
1 16 55.75 85.75 -10 0 0 1.25 1.25 0 0 0 3 0 2-4disc.dat
1 16 55.75 85.75 -10 0 0 1.25 -1.25 0 0 0 -3 0 2-4edge.dat
1 16 55.75 85.75 -7 0 0 1.25 -1.25 0 0 0 -3 0 2-4edge.dat
1 16 -55.75 85.75 -7 0 0 -1.25 -1.25 0 0 0 -3 0 2-4cyli.dat
1 16 -55.75 85.75 -10 0 0 -1.25 1.25 0 0 0 3 0 2-4disc.dat
1 16 -55.75 85.75 -10 0 0 -1.25 -1.25 0 0 0 -3 0 2-4edge.dat
1 16 -55.75 85.75 -7 0 0 -1.25 -1.25 0 0 0 -3 0 2-4edge.dat
1 16 0 79.25 -7 55.75 0 0 0 0 1.25 0 -3 0 box3u8p.dat
1 16 55.75 79.25 -7 0 0 1.25 -1.25 0 0 0 -3 0 2-4cyli.dat
1 16 55.75 79.25 -10 0 0 1.25 1.25 0 0 0 3 0 2-4disc.dat
1 16 55.75 79.25 -10 0 0 1.25 -1.25 0 0 0 -3 0 2-4edge.dat
1 16 55.75 79.25 -7 0 0 1.25 -1.25 0 0 0 -3 0 2-4edge.dat
1 16 -55.75 79.25 -7 0 0 -1.25 -1.25 0 0 0 -3 0 2-4cyli.dat
1 16 -55.75 79.25 -10 0 0 -1.25 1.25 0 0 0 3 0 2-4disc.dat
1 16 -55.75 79.25 -10 0 0 -1.25 -1.25 0 0 0 -3 0 2-4edge.dat
1 16 -55.75 79.25 -7 0 0 -1.25 -1.25 0 0 0 -3 0 2-4edge.dat
1 16 0 1.5 -10 60 0 0 0 0 -1.5 0 3 0 box4o4a.dat
4 16 -60 0 -10 -60 3 -10 60 3 -10 60 0 -10
1 16 0 93.5 -10 60 0 0 0 0 -2.5 0 3 0 box4o4a.dat
4 16 -60 91 -10 -60 96 -10 60 96 -10 60 91 -10
1 16 0 82.5 -7 -60 0 0 0 0 8.5 0 1 0 rect3.dat
2 24 60 3 -7 -60 3 -7
4 16 -60 3 -7 -57 6 -7 57 6 -7 60 3 -7
2 24 -60 3 -7 -60 74 -7
4 16 -57 6 -7 -60 3 -7 -60 74 -7 -57 74 -7
2 24 60 3 -7 60 74 -7
4 16 57 74 -7 60 74 -7 60 3 -7 57 6 -7
4 16 60 96 -6 60 96 -7 -60 96 -7 -60 96 -6
4 16 56 72 -6 56 96 -6 -56 96 -6 -56 72 -6
4 16 55 8 -6 56 8 -6 56 72 -6 55 72 -6
4 16 -55 72 -6 -56 72 -6 -56 8 -6 -55 8 -6
4 16 56 0 -6 56 8 -6 -56 8 -6 -56 0 -6
2 24 -56 96 -6 56 96 -6
2 24 -56 96 -6 -56 0 -6
2 24 56 96 -6 56 0 -6
2 24 56 0 -6 -56 0 -6
4 16 -60 0 -7 60 0 -7 60 0 -6 -60 0 -6
1 16 -60 48 0.5 0 1 0 -48 0 0 0 0 7.5 rect3.dat
1 16 60 48 0.5 0 -1 0 48 0 0 0 0 7.5 rect3.dat
1 16 58 48 -6 0 0 -2 -48 0 0 0 18 0 box4-7a.dat
1 16 -58 48 -6 0 0 2 48 0 0 0 18 0 box4-7a.dat
1 16 -64 48 10 0 4 0 -48 0 0 0 0 2 box4o4a.dat
4 16 -64 96 12 -64 96 8 -64 0 8 -64 0 12
1 16 64 48 10 0 -4 0 -48 0 0 0 0 -2 box4o4a.dat
4 16 64 96 8 64 96 12 64 0 12 64 0 8
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © J.C. Tchang
Licensed under CC BY 4.0
