File Detail parts/u9019.dat

Official File parts/u9019.dat

Part Attributes:

File Header:

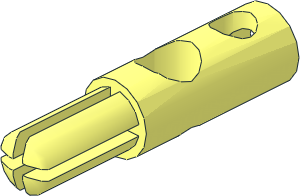

0 ~Pin for Electric Plug (Type 4) Twin
0 Name: u9019.dat
0 Author: Chris Dee [cwdee]
0 !LDRAW_ORG Part UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Electric

0 !HISTORY 2002-11-30 [PTadmin] Official Update 2002-05
0 !HISTORY 2007-09-10 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [guyvivan] Made BFC compliant (2004-05-09)
0 !HISTORY 2008-07-08 [WilliamH] Removed screw and added screw hole (2006-07-15)
0 !HISTORY 2009-10-22 [Steffen] Used plug34.dat primitive
0 !HISTORY 2010-05-26 [PTadmin] Renamed from s/766s01.dat
0 !HISTORY 2011-07-13 [Steffen] Added needs-work note, retitled
0 !HISTORY 2011-12-22 [Steffen] Relocated plug hole 0.5 LDU towards rear to match change in 766a.dat, 766b.dat
0 !HISTORY 2020-03-07 [Cheenzo] Added missing condlines
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
0 !HISTORY 2023-10-05 [kuramapika1] Adapted to new plug34 shape and added edged primitives
0 !HISTORY 2024-08-20 [Holly-Wood] Oriented slots vertical/horizontal again, remodeled screwholes
0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10

Show contents

0 // Needs work: Despite their titles and current implementation suggest that,
0 // it is unclear if parts u9018.dat, u9019.dat, u9134.dat, u9146.dat
0 // are really distinct. We need to investigate geometry more for these and,
0 // if necessary, unify some of them.

1 16 0 0 -22 1 0 0 0 1 0 0 0 1 plug34.dat
