Official File parts/u9228c03.dat
Part Attributes:
Base Part: u9228.dat
File Header:

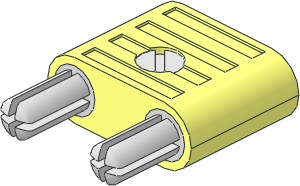

0 Electric Plug (Type 3) Twin with Cable End in Z Direction
0 Name: u9228c03.dat
0 Author: Steffen [Steffen]
0 !LDRAW_ORG Shortcut UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CMDLINE -c7
0 !HISTORY 2019-12-27 [PTadmin] Official Update 2019-03
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 u9228c02.dat
1 16 0 6 22.5 0 10 0 0 0 0.9245 -0.9245 0 0 1-4edge.dat
1 16 0 6 22.5 0 10 0 0 0 2.0755 -2.0755 0 0 1-4edge.dat
1 511 0 7.5 22.5 0 0 1 1 0 0 0 1.5 0 993.dat
1 511 -1.3852 6 22.5 0 1.5 0 1.5 0 0 0 0 -1.5 r04q1000.dat
1 511 1.3852 6 22.5 0 1.5 0 1.5 0 0 0 0 -1.5 r04q1000.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Steffen
Licensed under CC BY 4.0
