Official File parts/u9248.dat
Part Attributes:
File Header:

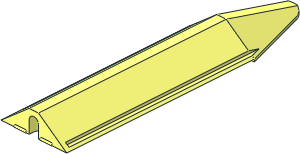

0 Electric Light & Sound Insectoid Tail 4 x 20 x 4.333 Side Prism
0 Name: u9248.dat
0 Author: Paul Easter [pneaster]
0 !LDRAW_ORG Part UPDATE 2022-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Insectoids
0 !HISTORY 2006-12-17 [mikeheide] Fixed bowtie quads, delete identical lines, addes space to part name
0 !HISTORY 2007-09-16 [mikeheide] Fixed wrong dimensions
0 !HISTORY 2018-01-14 [Steffen] split into multiple parts
0 !HISTORY 2022-05-18 [GeraldLasser] Re-Written from Scratch, added inside Geometry
0 !HISTORY 2022-09-15 [PTadmin] Official Update 2022-05
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9248s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\u9248s01.dat
0 // LED Cavity
1 16 0 -10 -136 -4 0 0 0 0 -4 0 1 0 2-4edge.dat
1 16 0 -10 -136 -4 0 0 0 0 -4 0 1 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -10 -132 -4 0 0 0 0 -4 0 4 0 2-8sphe.dat
0 BFC INVERTNEXT
1 16 0 -10 -136 -4 0 0 0 0 -4 0 4 0 2-4cyli.dat
0 BFC INVERTNEXT
1 16 0 -10 -132 -4 0 0 0 10 0 0 0 4 2-4cyli.dat
1 16 0 0 -132 -4 0 0 0 1 0 0 0 4 2-4edge.dat
1 16 0 0 -132 -4 0 0 0 -1 0 0 0 4 2-4ndis.dat
3 16 4 -18 -136 -4 -18 -136 0 -14 -136
2 24 6.5 0 -120 -6.5 0 -120
3 16 6.5 0 -120 0 0 -128 -6.5 0 -120
3 16 -6.5 0 -120 0 -6.5 -120 6.5 0 -120
2 24 0 -6.5 -120 0 -9.1012 -108.5
2 24 0 -9.7143 -108 0 -9.1012 -108.5
2 24 0 -9.7143 -108 0 -9.3274 -107.5
2 24 0 -9.3274 -107.5 0 -11.8155 -96.5
2 24 0 -12.4286 -96 0 -11.8155 -96.5
2 24 0 -12.4286 -96 0 -12.0417 -95.5
2 24 0 -15.1429 -84 .9286 -14.2143 -84
2 24 0 -12.0417 -95.5 0 -14.5298 -84.5
2 24 0 -15.1429 -84 0 -14.5298 -84.5
2 24 0 -15.1429 -84 0 -14.756 -83.5
2 24 0 -14.756 -83.5 0 -16 -78
2 24 0 -16 -78 0 -16 -72.5
2 24 0 -16 -72.5 0 -16.5 -72
2 24 0 -16.5 -72 0 -16 -71.5
2 24 0 -16 -71.5 0 -16 -60.5
2 24 0 -16 -60.5 0 -16.5 -60
2 24 0 -16.5 -60 0 -16 -59.5
2 24 0 -16 -59.5 0 -16 -48.5
2 24 0 -16.5 -48 0 -16 -48.5
2 24 0 -16.5 -48 0 -16 -47.5
2 24 0 -16 -47.5 0 -16 -36.5
2 24 0 -16 -36.5 0 -16.5 -36
2 24 0 -16.5 -36 0 -16 -35.5
2 24 0 -16 -35.5 0 -16 -24.5
2 24 0 -16.5 -24 0 -16 -24.5
2 24 0 -16.5 -24 0 -16 -23.5
2 24 0 -16 -23.5 0 -16 -12.5
2 24 0 -16 -12.5 0 -16.5 -12
2 24 0 -16.5 -12 0 -16 -11.5
2 24 0 -16.5 0 0 -16 .5
2 24 0 -16.5 0 0 -16 -.5
2 24 0 -16 -.5 0 -16 -11.5
2 24 0 -16 9 0 -16 11.5
2 24 0 -16.5 12 0 -16 12.5
2 24 0 -16.5 12 0 -16 11.5
2 24 0 -16 5 0 -16 .5
2 24 0 -16 19.6602 0 -16 12.5
0 // Tip
3 16 .284 -15.0019 23.5 0 -16 19.6602 -.284 -15.0019 23.5
4 16 .284 -15.0019 23.5 -.284 -15.0019 23.5 -.321 -15.372 24 .321 -15.372 24
4 16 .321 -15.372 24 -.321 -15.372 24 -.358 -14.742 24.5 .358 -14.742 24.5
2 24 -.284 -15.0019 23.5 .284 -15.0019 23.5
2 24 .321 -15.372 24 -.321 -15.372 24
2 24 -.358 -14.742 24.5 .358 -14.742 24.5
4 16 1.1716 -11.8827 35.5 .358 -14.742 24.5 -.358 -14.742 24.5 -1.1716 -11.8827 35.5
4 16 -1.2085 -12.2528 36 1.2085 -12.2528 36 1.1716 -11.8827 35.5 -1.1716 -11.8827 35.5
4 16 1.2085 -12.2528 36 -1.2085 -12.2528 36 -1.2455 -11.6228 36.5 1.2455 -11.6228 36.5
2 24 -1.1716 -11.8827 35.5 1.1716 -11.8827 35.5
2 24 1.2085 -12.2528 36 -1.2085 -12.2528 36
2 24 1.2455 -11.6228 36.5 -1.2455 -11.6228 36.5
4 16 2.0591 -8.7636 47.5 1.2455 -11.6228 36.5 -1.2455 -11.6228 36.5 -2.0591 -8.7636 47.5
4 16 2.0591 -8.7636 47.5 -2.0591 -8.7636 47.5 -2.0961 -9.1336 48 2.0961 -9.1336 48
4 16 2.1331 -8.5036 48.5 2.0961 -9.1336 48 -2.0961 -9.1336 48 -2.1331 -8.5036 48.5
2 24 2.0591 -8.7636 47.5 -2.0591 -8.7636 47.5
2 24 2.0961 -9.1336 48 -2.0961 -9.1336 48
2 24 2.1331 -8.5036 48.5 -2.1331 -8.5036 48.5
4 16 2.9467 -5.6444 59.5 2.1331 -8.5036 48.5 -2.1331 -8.5036 48.5 -2.9467 -5.6444 59.5
4 16 -2.9837 -6.0144 60 2.9837 -6.0144 60 2.9467 -5.6444 59.5 -2.9467 -5.6444 59.5
4 16 -3.0206 -5.3845 60.5 3.0206 -5.3845 60.5 2.9837 -6.0144 60 -2.9837 -6.0144 60
2 24 2.9467 -5.6444 59.5 -2.9467 -5.6444 59.5
2 24 2.9837 -6.0144 60 -2.9837 -6.0144 60
2 24 3.0206 -5.3845 60.5 -3.0206 -5.3845 60.5
4 16 4.5528 0 81.215 3.0206 -5.3845 60.5 -3.0206 -5.3845 60.5 -4.5528 0 81.215
3 16 -4.5528 0 81.215 0 .464 83 4.5528 0 81.215
0 // Holder
5 24 0 -6 5.5 0 -7 5.5 -2.1049 -7 5.0815 2.1049 -7 5.0815
5 24 0 -7 5.5 0 -8 5 -1.9135 -8 4.6195 1.9135 -8 4.6195
5 24 0 -5 5 0 -6 5.5 2.1049 -6 5.0815 -2.1049 -6 5.0815
0 // Outside
1 16 0 -18 -56 -4 0 0 0 1 0 0 0 -80 rect.dat
1 16 0 -10.29715 54.5617 0 0 4 -7.70285 1 0 -30.5617 0 0 rect2p.dat
3 16 0 -2.3734 86 -4 -2.5943 85.1234 4 -2.5943 85.1234
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Paul Easter
Licensed under CC BY 4.0
