parts/u9267.dat

Official File parts/u9267.dat

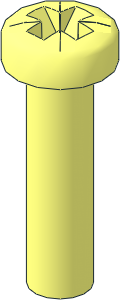

0 ~Screw 30 x  7.5 Dome Cruciform
0 Name: u9267.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Part UPDATE 2013-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Pozidriv

0 !HISTORY 2013-09-01 [MMR1988] Creation
0 !HISTORY 2013-12-23 [PTadmin] Official Update 2013-02

Show file code:

0 // Nomenclature: Screw length_(LDu) x thread_diameter_(LDu) {head type} {slot type}

1 16 0 30.5 0 4 0 0 0 -30.5 0 0 0 4 4-4cylc.dat
1 16 0 0 0 2 0 0 0 -1 0 0 0 2 4-4ring2.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 4-4ring6.dat

1 16 0 0 0 7 0 0 0 -4 0 0 0 7 4-4cyli.dat
1 16 0 0 0 7 0 0 0 1 0 0 0 7 4-4edge.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9267s01.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\u9267s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\u9267s01.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\u9267s01.dat
