File Detail parts/u9272.dat

Official File parts/u9272.dat

Part Attributes:

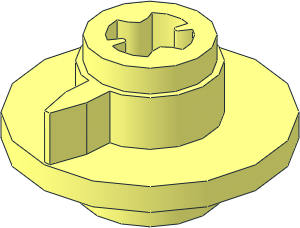

~Electric Motor Unit 6 x 18 x 4 - Selector Bush

File Header:

0 ~Electric Motor Unit  6 x 18 x  4 - Selector Bush
0 Name: u9272.dat
0 Author: Chris Dee [cwdee]
0 !LDRAW_ORG Part UPDATE 2022-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2014-11-25 [Steffen] BFCd
0 !HISTORY 2022-03-11 [Holly-Wood] Corrected edges and overlap
0 !HISTORY 2022-05-07 [PTadmin] Official Update 2022-03

Show contents

0 // Needs Work: Most guesswork based on visible part in assembly

1 16 0 -8 0 .3827 0 .9239 0 20 0 -.9239 0 .3827 axl2hole.dat
1 16 0 12 0 6 0 0 0 1 0 0 0 6 4-4disc.dat
1 16 0 -8 0 3 0 0 0 1 0 0 0 3 4-4ring2.dat
1 16 0 -8 0 9 0 0 0 4 0 0 0 9 4-4cylo.dat
1 16 0 -4 0 .38268 0 .92388 0 1 0 -.92388 0 .38268 7-8ring9.dat
1 16 0 -4 0 3.82683 0 9.2388 0 8 0 -9.2388 0 3.82683 7-8cylo.dat
1 16 0 -4 0 -3.44415 0 8.31492 0 1 0 -8.31492 0 -3.44415 1-8tang.dat
4 16 -1.79 -4 -9 -3.444 -4 -8.315 -3.827 -4 -9.239 -2 -4 -9.602
4 16 0 -4 -9 -1.79 -4 -9 -2 -4 -9.602 0 -4 -10
4 16 1.79 -4 -9 0 -4 -9 0 -4 -10 2 -4 -9.602
4 16 3.444 -4 -8.315 1.79 -4 -9 2 -4 -9.602 3.827 -4 -9.239
4 16 3.827 -4 -9.239 2 -4 -9.602 2 4 -9.602 3.827 4 -9.239
4 16 -2 4 -9.602 -2 -4 -9.602 -3.827 -4 -9.239 -3.827 4 -9.239
2 24 -3.827 -4 -9.239 -2 -4 -9.602
2 24 2 -4 -9.602 3.827 -4 -9.239
2 24 -3.827 4 -9.239 -2 4 -9.602
2 24 2 4 -9.602 3.827 4 -9.239
5 24 -3.827 4 -9.239 -3.827 -4 -9.239 -2 -4 -9.602 -7.071 -4 -7.071
5 24 3.827 4 -9.239 3.827 -4 -9.239 2 -4 -9.602 7.071 -4 -7.071

1 16 0 4 0 9 0 0 0 1 0 0 0 9 4-4ring1.dat
1 16 0 4 0 2 0 0 0 1 0 0 0 2 4-4ring9.dat
1 16 0 4 0 20 0 0 0 4 0 0 0 20 4-4cylo.dat
1 16 0 8 0 10 0 0 0 -1 0 0 0 -10 4-4ring1.dat
1 16 0 16 0 10 0 0 0 -8 0 0 0 10 4-4cylc.dat

2 24 2 -4 -9.602 2 -4 -14
2 24 2 -4 -14 .5 -4 -19.5
2 24 .5 -4 -19.5 -.5 -4 -19.5
2 24 -.5 -4 -19.5 -2 -4 -14
2 24 -2 -4 -14 -2 -4 -9.602
2 24 2 4 -9.602 2 4 -14
2 24 2 4 -14 .5 4 -19.5
2 24 .5 4 -19.5 -.5 4 -19.5
2 24 -.5 4 -19.5 -2 4 -14
2 24 -2 4 -14 -2 4 -9.602
4 16 2 -4 -9.602 2 -4 -14 2 4 -14 2 4 -9.602
4 16 2 -4 -14 .5 -4 -19.5 .5 4 -19.5 2 4 -14
4 16 .5 -4 -19.5 -.5 -4 -19.5 -.5 4 -19.5 .5 4 -19.5
4 16 -.5 -4 -19.5 -2 -4 -14 -2 4 -14 -.5 4 -19.5
4 16 -2 -4 -14 -2 -4 -9.602 -2 4 -9.602 -2 4 -14
4 16 -2 -4 -14 -.5 -4 -19.5 .5 -4 -19.5 2 -4 -14
3 16 2 -4 -14 0 -4 -10 -2 -4 -14
3 16 2 -4 -14 2 -4 -9.602 0 -4 -10
3 16 0 -4 -10 -2 -4 -9.602 -2 -4 -14
2 24 2 -4 -9.602 2 4 -9.602
2 24 2 -4 -14 2 4 -14
2 24 .5 -4 -19.5 .5 4 -19.5
2 24 -.5 -4 -19.5 -.5 4 -19.5
2 24 -2 -4 -14 -2 4 -14
2 24 -2 -4 -9.602 -2 4 -9.602
