Official File parts/u9304.dat
Part Attributes:
File Header:

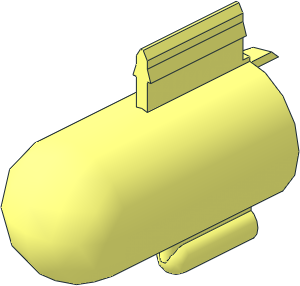

0 ~Boat Keel Weight Half Bottom with Tab
0 Name: u9304.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
0 !HISTORY 2023-03-24 [Philo] Corrected size of bottom tab cylinder
0 !HISTORY 2023-11-19 [OrionP] Official Update 2023-06
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
