Official File parts/u9316.dat
Part Attributes:
File Header:

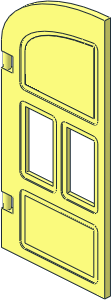

0 Door 1 x 4.5 x 8.333 Fabuland
0 Name: u9316.dat
0 Author: Chris Dee [cwdee]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2014-12-23 [PTadmin] Official Update 2014-02
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
1 16 -2.5 0 -2.5 1 0 0 0 1 0 0 0 1 s\u9316s01.dat
1 16 -2.5 0 2.5 1 0 0 0 1 0 0 0 -1 s\u9316s01.dat
0 BFC INVERTNEXT
1 16 29.5 55.5 -1.5 12 0 0 0 0 23.5 0 3 0 box4.dat
0 BFC INVERTNEXT
1 16 65.5 55.5 -1.5 12 0 0 0 0 23.5 0 3 0 box4.dat
1 16 0 0 0 2.5 0 0 0 12 0 0 0 2.5 4-4cylo.dat
1 16 0 0 0 2.5 0 0 0 -1 0 0 0 2.5 4-4ndis.dat
1 16 0 12 0 2.5 0 0 0 1 0 0 0 2.5 4-4ndis.dat
2 24 -2.5 0 -2.5 -2.5 0 2.5
2 24 -2.5 12 -2.5 -2.5 12 2.5
2 24 7.5 0 -2.5 7.5 0 2.5
2 24 7.5 12 -2.5 7.5 12 2.5
4 16 7.5 0 2.5 7.5 0 -2.5 2.5 0 -2.5 2.5 0 2.5
4 16 2.5 12 2.5 2.5 12 -2.5 7.5 12 -2.5 7.5 12 2.5
4 16 7.5 12 -2.5 7.5 0 -2.5 7.5 0 2.5 7.5 12 2.5
1 16 0 100 0 2.5 0 0 0 12 0 0 0 2.5 4-4cylo.dat
1 16 0 100 0 2.5 0 0 0 -1 0 0 0 2.5 4-4ndis.dat
1 16 0 112 0 2.5 0 0 0 1 0 0 0 2.5 4-4ndis.dat
2 24 -2.5 100 -2.5 -2.5 100 2.5
2 24 -2.5 112 -2.5 -2.5 112 2.5
2 24 7.5 100 -2.5 7.5 100 2.5
2 24 7.5 112 -2.5 7.5 112 2.5
4 16 7.5 100 2.5 7.5 100 -2.5 2.5 100 -2.5 2.5 100 2.5
4 16 2.5 112 2.5 2.5 112 -2.5 7.5 112 -2.5 7.5 112 2.5
4 16 7.5 112 -2.5 7.5 100 -2.5 7.5 100 2.5 7.5 112 2.5
4 16 -2.5 12 -2.5 -2.5 12 2.5 -2.5 100 2.5 -2.5 100 -2.5
4 16 -2.5 -8 -2.5 -2.5 -8 2.5 -2.5 0 2.5 -2.5 0 -2.5
1 16 87.5 -8 -2.5 -90 0 0 0 0 -50 0 5 0 48\1-4cyli.dat
2 24 87.5 -58 2.5 87.5 -58 -2.5
4 16 87.5 -58 2.5 87.5 -58 -2.5 87.5 140 -2.5 87.5 140 2.5
2 24 87.5 140 2.5 87.5 140 -2.5
4 16 87.5 140 2.5 87.5 140 -2.5 -2.5 140 -2.5 -2.5 140 2.5
2 24 -2.5 140 2.5 -2.5 140 -2.5
4 16 -2.5 140 2.5 -2.5 140 -2.5 -2.5 112 -2.5 -2.5 112 2.5
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2025-09-27 02:19:41
2025-09-27 02:19:41
2025-09-29 04:49:56
Release 2025-09
