File Detail parts/u9333.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/u9333.dat

Part Attributes:

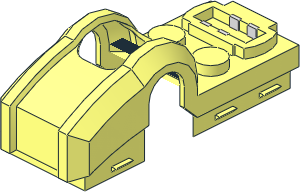

~Electric Power Functions Pole Reverser Top without Secondary Inverter (Needs Work)

File Header:

0 ~Electric Power Functions Pole Reverser Top without Secondary Inverter (Needs Work)
0 Name: u9333.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2020-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03

Show contents

0 // Needs Work: Inner surface not modelled

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9333s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\u9333s01.dat
1 16 0 0 40 0 0 -1 0 1 0 1 0 0 s\58124s01.dat
4 16 10 -4 60 -10 -4 60 -10 -4 56 10 -4 56
4 16 20 0 20 -20 0 20 -20 0 14 20 0 14
4 16 7 8 60 -7 8 60 -10 0 60 10 0 60
4 16 6.5 12 60 -6.5 12 60 -7 8 60 7 8 60
1 16 0 12 59 6.5 0 0 0 -1 0 0 0 1 rect2p.dat
1 16 0 12 14 0 0 18 -4 0 0 0 44 0 box3u2p.dat
1 16 0 9 -8 0 0 -18 -7 0 0 0 -27 0 box3u2p.dat
1 16 0 -2 60 10 0 0 0 0 -2 0 -1 0 rect3.dat
2 24 -10 0 17 10 0 17
1 16 0 3 -38 10 0 0 0 0 -8 0 1 0 rect2p.dat
4 16 -10 -9.51 15.71 10 -9.51 15.71 10 -3 17 -10 -3 17
4 16 -10 -3 17 10 -3 17 10 0 17 -10 0 17
4 16 10 -9.51 15.71 -10 -9.51 15.71 -4 -12.81 13.5 4 -12.81 13.5
5 24 10 -3 17 -10 -3 17 -10 -9.51 15.71 10 0 17
5 24 -10 -9.51 15.71 10 -9.51 15.71 10 -3 17 -4 -12.81 13.5
4 16 -10 -5 -38 10 -5 -38 10 -10 -29 -10 -10 -29
4 16 -10 -12.5 -23 -10 -10 -29 10 -10 -29 10 -12.5 -23
4 16 -10 -12.5 -23 10 -12.5 -23 10 -14.5 -17 -10 -14.5 -17
4 16 -10 -14.5 -17 10 -14.5 -17 4 -15.25 -14 -4 -15.25 -14
3 16 6.3 -15.36 -13.54 4 -15.25 -14 10 -14.5 -17
3 16 -4 -15.25 -14 -6.3 -15.36 -13.54 -10 -14.5 -17
5 24 -10 -10 -29 10 -10 -29 10 -5 -38 10 -12.5 -23
5 24 -10 -12.5 -23 10 -12.5 -23 10 -14.5 -17 10 -10 -29
5 24 -10 -14.5 -17 10 -14.5 -17 4 -15.25 -14 10 -12.5 -23
0 // The two following quads are there to avoid see inside when the switch is tilted
4 0 16 -6 10 16 -6 16 -16 -6 16 -16 -6 10
4 0 16 -6 -21 16 -6 -10 -16 -6 -10 -16 -6 -21
