Official File parts/u9450.dat
Part Attributes:
File Header:

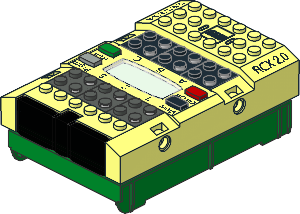

0 ~Electric Mindstorms RCX 2.0 Module
0 Name: u9450.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Shortcut UPDATE 2022-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2022-12-20 [PTadmin] Official Update 2022-06
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 32374p02c01.dat
0 // Curcuit board
1 2 0 0 0 1 0 0 0 1 0 0 0 1 22702.dat
0 // Battery box
1 2 0 40 0 1 0 0 0 1 0 0 0 1 32116.dat
0 // IR Glass
1 32 0 0 0 1 0 0 0 1 0 0 0 1 32110.dat
0 // vision blocker, behind the IR glass
4 0 62 14 -114 62 14 -95 -62 14 -95 -62 14 -114
4 0 62 14 -114 -62 14 -114 -62 40 -114 62 40 -114
0 // Rubber Buttons
0 // green/grey
1 67 -58 12 -9 1 0 0 0 1 0 0 0 1 71645p02.dat
0 // red/black
1 67 58 12 -9 1 0 0 0 1 0 0 0 1 71645p01.dat
0 // Ports
1 0 -40 8 40 0 0 1 0 1 0 -1 0 0 6554c01.dat
1 0 0 8 40 0 0 1 0 1 0 -1 0 0 6554c01.dat
1 0 40 8 40 0 0 1 0 1 0 -1 0 0 6554c01.dat
1 8 -40 8 -60 0 0 1 0 1 0 -1 0 0 6554c01.dat
1 8 0 8 -60 0 0 1 0 1 0 -1 0 0 6554c01.dat
1 8 40 8 -60 0 0 1 0 1 0 -1 0 0 6554c01.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Magnus Forsberg
Licensed under CC BY 4.0
