Official File parts/u9539.dat
Part Attributes:
File Header:

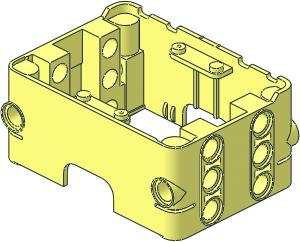

0 ~Electric Powered Up 2 Port Hub Bottom
0 Name: u9539.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2022-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Spike Essential
0 !HISTORY 2022-05-07 [PTadmin] Official Update 2022-03
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9539s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\u9539s02.dat
1 16 0 11 47.5 0 0 11 0 -1 0 1.5 0 0 rect1.dat
1 16 0 11 -47.5 0 0 -11 0 -1 0 -1.5 0 0 rect1.dat
4 16 -51 0 -49 -11 11 -49 11 11 -49 51 0 -49
4 16 -51 0 -49 51 0 -49 53.6361 -6.3639 -49 -53.6361 -6.3639 -49
4 16 -60 -9 -49 -53.6361 -6.3639 -49 53.6361 -6.3639 -49 60 -9 -49
1 16 -60 20 0 0 0 1 0 -1 0 -1 0 0 connhol3.dat
1 16 60 28 0 0 0 2 0 -1 0 2 0 0 4-4ring3.dat
0 BFC INVERTNEXT
1 16 60 30 0 8 0 0 0 -2 0 0 0 8 7-16cylo.dat
1 16 60 30 0 1 0 0 0 -1 0 0 0 1 3-8ring8.dat
1 16 60 30 0 1 0 0 0 -1 0 0 0 -1 3-8ring8.dat
0 BFC INVERTNEXT
1 16 60 30 0 8 0 0 0 -2 0 0 0 -8 7-16cylo.dat
0 BFC INVERTNEXT
1 16 60 12 0 0 0 6 0 16 0 6 0 0 4-4cylo.dat
1 16 -60 30 0 9 0 0 0 -1 0 0 0 9 1-8ndis.dat
1 16 -60 30 0 9 0 0 0 -1 0 0 0 -9 1-8ndis.dat
1 16 60 30 0 -7.39104 0 3.06147 0 -1 0 -3.06147 0 -7.39104 1-16chrd.dat
1 16 60 30 0 -7.39104 0 3.06147 0 -1 0 3.06147 0 7.39104 1-16chrd.dat
1 16 52.3044 29 -3.1597 0 0 0.3044 -1 0 0 0 -1 0.0981 rect.dat
4 16 54.3432 30 -5.6568 53.636 30 -6.3669 52 30 -3.2578 52.6088 30 -3.0616
4 16 -51 30 -31 -53.6361 30 -33.6361 -53.6361 30 -6.3639 -51 30 -9
4 16 -51 30 9 -53.6361 30 6.3639 -53.6361 30 33.6361 -51 30 31
1 16 -51 29.5 0 0 -1 0 0 0 0.5 -40 0 0 rect2p.dat
4 16 -50 29 -46 -51 29 -49 -51 29 49 -50 29 46
1 16 52 19.5 0 0 1 0 -7.5 0 0 0 0 12 rect1.dat
4 16 52 12 12 54 12 6 66 12 6 67 12 12
4 16 52 12 -12 54 12 -6 54 12 6 52 12 12
4 16 66 12 -6 54 12 -6 52 12 -12 67 12 -12
1 16 52.3044 29 3.1597 -0.3044 0 0 0 0 1 0.0981 1 0 rect.dat
4 16 52 30 3.2578 53.636 30 6.3669 54.3432 30 5.6568 52.6088 30 3.0616
2 24 51 29 -12 50 29 -12
2 24 51 29 12 50 29 12
1 16 50 28 29 0 1 0 1 0 0 0 0 -17 rect3.dat
1 16 50 28 -29 0 1 0 -1 0 0 0 0 17 rect3.dat
4 16 50 29 12 50 29 46 51 29 49 51 29 12
4 16 51 29 -49 50 29 -46 50 29 -12 51 29 -12
2 24 52 30 -12 51 30 -12
1 16 51 29.5 -26 0 1 0 -0.5 0 0 0 0 14 rect3.dat
4 16 53.636 30 -33.6331 51 30 -31 51 30 -12 52 30 -12
4 16 53.636 30 -6.3669 53.636 30 -33.6331 52 30 -12 52 30 -3.2578
2 24 52 30 -12 52 27 -12
4 16 52 30 -12 51 30 -12 51 29 -12 52 27 -12
4 16 51 29 -12 50 29 -12 50 27 -12 52 27 -12
2 24 52 30 12 51 30 12
1 16 51 29.5 26 0 1 0 0.5 0 0 0 0 -14 rect3.dat
4 16 51 30 12 51 30 31 53.636 30 33.6331 52 30 12
4 16 52 30 12 53.636 30 33.6331 53.636 30 6.3669 52 30 3.2578
2 24 52 30 12 52 27 12
4 16 51 29 12 51 30 12 52 30 12 52 27 12
4 16 50 27 12 50 29 12 51 29 12 52 27 12
2 24 52 30 -12 52 30 -3.2578
4 16 52 30 -3.2578 52 30 -12 52 27 -12 52 28 -3.2578
3 16 52 28 -3.2578 52 28 0 52.6088 28 -3.0616
2 24 52 30 12 52 30 3.2578
4 16 52 27 12 52 30 12 52 30 3.2578 52 28 3.2578
3 16 52 28 0 52 28 3.2578 52.6088 28 3.0616
4 16 52 28 3.2578 52 28 -3.2578 52 27 -12 52 27 12
2 24 52 28 -3.2578 52 28 3.2578
1 16 0 -19.5 -49 0 0 -60 -10.5 0 0 0 1 0 rect1.dat
4 16 51.25 -30 -46 -51.25 -30 -46 -53 -30 -47 53 -30 -47
4 16 -53 -30 -47 -60 -30 -49 60 -30 -49 53 -30 -47
1 16 0 -29 -46 0 0 51.25 -1 0 0 0 -1 0 rect1.dat
2 24 52 27 12 50 27 12
2 24 52 27 -12 50 27 -12
4 16 52 27 32 51 27 32 50 27 12 52 27 12
4 16 50 27 46 50 27 12 51 27 32 51 27 46
4 16 50 27 -12 51 27 -32 52 27 -32 52 27 -12
4 16 51 27 -32 50 27 -12 50 27 -46 51 27 -46
2 24 -50 29 46 -50 29 -46
4 16 -67 12 12 -66 12 6 -54 12 6 -52 12 12
3 16 -52 12 3 -52 12 12 -54 12 6
3 16 -52 12 -3 -52 12 3 -54 12 6
4 16 -54 12 6 -54 12 -6 -52 12 -12 -52 12 -3
4 16 -67 12 -12 -52 12 -12 -54 12 -6 -66 12 -6
1 16 -49.5 12 0 0 0 2.5 0 1 0 -3 0 0 rect3.dat
1 16 -48.5 28 0 0 0 1.5 0 -1 -1 3 0 0 rect3.dat
1 16 -47 19.5 0 0 -1 0 7.5 0 0 0 0 3 rect2p.dat
1 16 -52 19.5 -7.5 0 -1 0 7.5 0 0 0 0 4.5 rect3.dat
2 24 -52 27 -3 -50 27 -3
4 16 -52 27 -3 -52 27 -32 -51 27 -32 -50 27 -3
4 16 -51 27 -32 -51 27 -46 -50 27 -46 -50 27 -3
4 16 -50 27 -3 -50 29 -3 -47 27 -3 -47 12 -3
4 16 -50 27 -3 -47 12 -3 -52 12 -3 -52 27 -3
1 16 -50 28 -24.5 0 -1 0 0 0 -1 21.5 0 0 rect2a.dat
1 16 -52 19.5 7.5 0 -1 0 -7.5 0 0 0 0 -4.5 rect3.dat
2 24 -52 27 3 -50 27 3
4 16 -51 27 32 -52 27 32 -52 27 3 -50 27 3
4 16 -50 27 46 -51 27 46 -51 27 32 -50 27 3
4 16 -47 27 3 -50 29 3 -50 27 3 -47 12 3
4 16 -52 12 3 -47 12 3 -50 27 3 -52 27 3
1 16 -50 28 24.5 0 -1 0 -1 0 0 0 0 -21.5 rect2a.dat
1 16 0 -6 -46 0 0 -7 17 0 0 0 -1 0 rect1.dat
4 16 54.3432 -28 -46 9 -23 -46 -9 -23 -46 -54.3432 -28 -46
1 16 0 -6 46 0 0 7 17 0 0 0 1 0 rect1.dat
4 16 -6 -34 46 -9 -23 46 9 -23 46 6 -34 46
1 16 0 -34 47.5 6 0 0 0 1 0 0 0 1.5 rect2p.dat
4 16 -11 11 49 -6 -34 49 6 -34 49 11 11 49
0 BFC INVERTNEXT
1 16 -15 -26 38 0 0 -2.6 0 3 0 -2.6 0 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 -15 -29 38 0 0 -1.3 0 3 0 -1.3 0 0 4-4cylo.dat
1 16 -15 -26 38 0 0 -1.3 0 -1 0 -1.3 0 0 4-4ring1.dat
1 16 -15 -29 38 0 0 -1.3 0 1 0 -1.3 0 0 4-4ndis.dat
1 16 -15 -29 38 0 0 -3.9 0 1 0 -3.9 0 0 1-4chrd.dat
3 16 -13.7 -29 36.7 -16.3 -29 36.7 -15 -29 34.1
3 16 -16.3 -29 36.7 -18.9 -29 38 -15 -29 34.1
1 16 -15 -29 38 3.9 0 0 0 1 0 0 0 -3.9 1-4chrd.dat
3 16 -13.7 -29 39.3 -13.7 -29 36.7 -11.1 -29 38
3 16 -13.7 -29 36.7 -15 -29 34.1 -11.1 -29 38
1 16 -15 -29 38 0 0 3.9 0 1 0 3.9 0 0 1-4chrd.dat
3 16 -16.3 -29 39.3 -13.7 -29 39.3 -15 -29 41.9
3 16 -13.7 -29 39.3 -11.1 -29 38 -15 -29 41.9
1 16 -15 -29 38 -3.9 0 0 0 1 0 0 0 3.9 1-4chrd.dat
3 16 -16.3 -29 36.7 -16.3 -29 39.3 -18.9 -29 38
3 16 -16.3 -29 39.3 -15 -29 41.9 -18.9 -29 38
1 16 -15 -23 38 1.83848 0 -1.83848 0 -1 0 -1.83848 0 -1.83848 4-4ndis.dat
4 16 -15 -23 41.677 -18.677 -23 38 -20 -23 38 -20 -23 46
4 16 -15 -23 33 -20 -23 38 -18.677 -23 38 -15 -23 34.323
0 BFC INVERTNEXT
1 16 15 -26 -38 0 0 2.6 0 3 0 2.6 0 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 15 -29 -38 0 0 1.3 0 3 0 1.3 0 0 4-4cylo.dat
1 16 15 -26 -38 0 0 1.3 0 -1 0 1.3 0 0 4-4ring1.dat
1 16 15 -29 -38 0 0 1.3 0 1 0 1.3 0 0 4-4ndis.dat
1 16 15 -29 -38 0 0 3.9 0 1 0 3.9 0 0 1-4chrd.dat
3 16 13.7 -29 -36.7 16.3 -29 -36.7 15 -29 -34.1
3 16 16.3 -29 -36.7 18.9 -29 -38 15 -29 -34.1
1 16 15 -29 -38 -3.9 0 0 0 1 0 0 0 3.9 1-4chrd.dat
3 16 13.7 -29 -39.3 13.7 -29 -36.7 11.1 -29 -38
3 16 13.7 -29 -36.7 15 -29 -34.1 11.1 -29 -38
1 16 15 -29 -38 0 0 -3.9 0 1 0 -3.9 0 0 1-4chrd.dat
3 16 16.3 -29 -39.3 13.7 -29 -39.3 15 -29 -41.9
3 16 13.7 -29 -39.3 11.1 -29 -38 15 -29 -41.9
1 16 15 -29 -38 3.9 0 0 0 1 0 0 0 -3.9 1-4chrd.dat
3 16 16.3 -29 -36.7 16.3 -29 -39.3 18.9 -29 -38
3 16 16.3 -29 -39.3 15 -29 -41.9 18.9 -29 -38
1 16 15 -23 -38 -1.83848 0 1.83848 0 -1 0 1.83848 0 1.83848 4-4ndis.dat
4 16 15 -23 -41.677 18.677 -23 -38 20 -23 -38 20 -23 -46
4 16 15 -23 -33 20 -23 -38 18.677 -23 -38 15 -23 -34.323
1 16 -12.4019 -25.5 -36.5 -0.2887 1 0 0 0 2.5 0.5 0 0 rect.dat
1 16 -15 -25.5 -36 0 0 -2.3094 -2.5 0 0 0 1 0 rect3.dat
1 16 -15.00005 -25.5 -41 0.57735 0 0 0 0 2.5 0 -1 0 rect.dat
1 16 -13.26795 -25.5 -39 1.15475 1 0 0 0 2.5 2 0 0 rect2p.dat
1 16 -17.5981 -25.5 -36.5 0 -1 -0.2887 -2.5 0 0 0 0 -0.5 rect3.dat
1 16 -16.7321 -25.5 -39 1.1547 -1 0 0 0 2.5 -2 0 0 rect2p.dat
4 16 -12.6906 -28 -36 -12.1132 -28 -37 -14.4226 -28 -41 -15.5774 -28 -41
4 16 -15.5774 -28 -41 -17.8868 -28 -37 -17.3094 -28 -36 -12.6906 -28 -36
1 16 -15 -29 -38 0 0 -3.9 0 1 0 3.9 0 0 4-4disc.dat
3 16 -17.3094 -23 -36 -17.8868 -23 -37 -20 -23 -38
3 16 -17.3094 -23 -36 -20 -23 -38 -15 -23 -33
3 16 -17.3094 -23 -36 -15 -23 -33 -12.6906 -23 -36
4 16 -15.5774 -23 -41 -20 -23 -46 -20 -23 -38 -17.8868 -23 -37
3 16 -15.5774 -23 -41 -14.4227 -23 -41 -20 -23 -46
1 16 12.4019 -25.5 36.5 0.2887 -1 0 0 0 2.5 -0.5 0 0 rect.dat
1 16 15 -25.5 36 0 0 2.3094 -2.5 0 0 0 -1 0 rect3.dat
1 16 15.00003 -25.5 41 -0.5774 0 0 0 0 2.5 0 1 0 rect.dat
1 16 13.26793 -25.5 39 -1.1547 -1 0 0 0 2.5 -2 0 0 rect2p.dat
1 16 17.5981 -25.5 36.5 0 1 0.2887 -2.5 0 0 0 0 0.5 rect3.dat
1 16 16.7321 -25.5 39 -1.1547 1 0 0 0 2.5 2 0 0 rect2p.dat
4 16 12.6906 -28 36 12.1132 -28 37 14.4226 -28 41 15.5774 -28 41
4 16 15.5774 -28 41 17.8868 -28 37 17.3094 -28 36 12.6906 -28 36
1 16 15 -29 38 0 0 3.9 0 1 0 -3.9 0 0 4-4disc.dat
3 16 17.3094 -23 36 17.8868 -23 37 20 -23 38
3 16 17.3094 -23 36 20 -23 38 15 -23 33
3 16 17.3094 -23 36 15 -23 33 12.6906 -23 36
4 16 15.5774 -23 41 20 -23 46 20 -23 38 17.8868 -23 37
3 16 15.5774 -23 41 14.4227 -23 41 20 -23 46
4 16 -14.4227 -23 -41 15 -23 -41.677 20 -23 -46 -20 -23 -46
2 24 20 -23 -46 -20 -23 -46
4 16 -14.4227 -23 -41 -12.1132 -23 -37 11.323 -23 -38 15 -23 -41.677
4 16 -12.6906 -23 -36 15 -23 -34.323 11.323 -23 -38 -12.1132 -23 -37
4 16 15 -23 -34.323 -12.6906 -23 -36 -15 -23 -33 15 -23 -33
1 16 0 -24.5 -33 -15 0 0 0 0 -1.5 0 -1 0 rect2p.dat
4 16 -15 -26 -33 -15 -26 -34.1 15 -26 -34.1 15 -26 -33
4 16 -12.2423 -26 -35.2423 12.2423 -26 -35.2423 15 -26 -34.1 -15 -26 -34.1
4 16 -12.2423 -26 -35.2423 -11.1 -26 -38 11.1 -26 -38 12.2423 -26 -35.2423
4 16 -12.2423 -26 -40.7577 12.2423 -26 -40.7577 11.1 -26 -38 -11.1 -26 -38
4 16 12.2423 -26 -40.7577 -12.2423 -26 -40.7577 -15 -26 -41.9 15 -26 -41.9
4 16 20 -26 -46 15 -26 -41.9 -15 -26 -41.9 -20 -26 -46
2 24 20 -26 -46 -20 -26 -46
4 16 14.4227 -23 41 -15 -23 41.677 -20 -23 46 20 -23 46
2 24 -20 -23 46 20 -23 46
4 16 14.4227 -23 41 12.1132 -23 37 -11.323 -23 38 -15 -23 41.677
4 16 12.6906 -23 36 -15 -23 34.323 -11.323 -23 38 12.1132 -23 37
4 16 -15 -23 34.323 12.6906 -23 36 15 -23 33 -15 -23 33
1 16 0 -24.5 33 15 0 0 0 0 -1.5 0 1 0 rect2p.dat
4 16 15 -26 33 15 -26 34.1 -15 -26 34.1 -15 -26 33
4 16 12.2423 -26 35.2423 -12.2423 -26 35.2423 -15 -26 34.1 15 -26 34.1
4 16 12.2423 -26 35.2423 11.1 -26 38 -11.1 -26 38 -12.2423 -26 35.2423
4 16 12.2423 -26 40.7577 -12.2423 -26 40.7577 -11.1 -26 38 11.1 -26 38
4 16 -12.2423 -26 40.7577 12.2423 -26 40.7577 15 -26 41.9 -15 -26 41.9
4 16 -20 -26 46 -15 -26 41.9 15 -26 41.9 20 -26 46
2 24 -20 -26 46 20 -26 46
