Official File parts/u9546.dat
Part Attributes:
File Header:

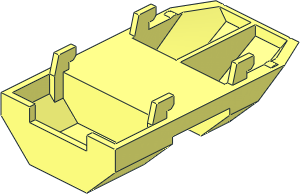

0 ~Electric Light & Sound Insectoid Tail 4 x 20 x 4.333 - Battery Cover
0 Name: u9546.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2022-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2022-09-15 [PTadmin] Official Update 2022-05
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9546s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\u9546s01.dat
0 // Bottom
0 BFC INVERTNEXT
1 16 0 48 -140 16 0 0 0 -4 0 0 0 16 box5.dat
1 16 0 44 -140 1 0 0 0 -1 0 0 0 1 stud4.dat
4 16 20 48 -160 -20 48 -160 -16 48 -156 16 48 -156
4 16 -16 48 -124 -20 48 -120 20 48 -120 16 48 -124
1 16 0 48 -140 20 0 0 0 -1 0 0 0 20 recte4.dat
0 BFC INVERTNEXT
1 16 0 48 -70 16 0 0 0 -4 0 0 0 6 box5.dat
1 16 0 44 -70 1 0 0 0 -1 0 0 0 1 stud3.dat
4 16 20 48 -80 -20 48 -80 -16 48 -76 16 48 -76
4 16 -16 48 -64 -20 48 -60 20 48 -60 16 48 -64
1 16 0 48 -70 20 0 0 0 -1 0 0 0 10 recte4.dat
4 16 36 24 -80 -36 24 -80 -20 48 -80 20 48 -80
4 16 36 24 -120 20 48 -120 -20 48 -120 -36 24 -120
0 BFC INVERTNEXT
1 16 0 24 -100 36 0 0 0 -4 0 0 0 20 box5-2p.dat
1 16 0 20 -100 1 0 0 0 -1 0 0 0 1 stug4-1x3.dat
0 // Side Walls
4 16 40 28 -160 20 24 -160 -20 24 -160 -40 28 -160
4 16 -20 48 -160 20 48 -160 40 28 -160 -40 28 -160
4 16 -20 48 -60 -10 45.6 -56 10 45.6 -56 20 48 -60
4 16 21.975 24.3 -20.5 14.8503 44 -53.3333 -14.8503 44 -53.3333 -21.975 24.3 -20.5
2 24 14.8503 44 -53.3333 -14.8503 44 -53.3333
4 16 -10 45.6 -56 -10 44 -56 10 44 -56 10 45.6 -56
4 16 10 44 -56 -10 44 -56 -14.8503 44 -53.3333 14.8503 44 -53.3333
2 24 -10 45.6 -56 10 45.6 -56
2 24 -10 44 -56 10 44 -56
5 24 10 45.6 -56 10 44 -56 12.2962 44 -55.5434 -10 44 -56
4 16 21.975 24.3 -20.5 -21.975 24.3 -20.5 -22.1545 15 -20.5 22.1545 15 -20.5
2 24 22.1545 15 -20.5 -22.1545 15 -20.5
2 24 -21.975 24.3 -20.5 21.975 24.3 -20.5
0 // Inner Area 1
1 16 0 40 -140 -22.3431 0 0 0 1 0 0 0 -16 rect.dat
4 16 20 24 -156 22.3431 40 -156 -22.3431 40 -156 -20 24 -156
1 16 0 22.4216 -122 32.5 0 0 0 -7.4216 0 0 0 -2 box2-7.dat
4 16 -32.5 29.8432 -124 -22.3431 40 -124 22.3431 40 -124 32.5 29.8432 -124
0 BFC INVERTNEXT
1 16 0 15 -158 0 0 -20 0 9 0 2 0 0 box3u2p.dat
0 // Top
4 16 1.5 15 -76 -1.5 15 -76 -32.5 15 -120 32.5 15 -120
4 16 -1.5 15 -23.5 -1.5 15 -76 1.5 15 -76 1.5 15 -23.5
4 16 -22.2929 15 -20.7071 22.2929 15 -20.7071 22.1545 15 -20.5 -22.1545 15 -20.5
4 16 -1.5 15 -23.5 1.5 15 -23.5 22.2929 15 -20.7071 -22.2929 15 -20.7071
0 // Arrow
1 16 0 35.0899 -37.6499 -6 0 0 0 -6.1739 .5 0 10.29 0 box4-2p.dat
1 16 -9 35.0899 -37.6499 0 0 -3 .5 0 0 0 -1 0 rect3.dat
1 16 9 35.0899 -37.6499 0 0 3 -.5 0 0 0 -1 0 rect3.dat
2 24 0 39.1346 -45.2244 12.292 34.9185 -38.1975
2 24 -12.292 34.9185 -38.1975 0 39.1346 -45.2244
2 24 12 34.5899 -37.6499 12.292 34.9185 -38.1975
2 24 -12.292 34.9185 -38.1975 -12 34.5899 -37.6499
3 16 -12.292 34.9185 -38.1975 -12 34.5899 -37.6499 -12 35.5899 -37.6499
3 16 12 34.5899 -37.6499 12.292 34.9185 -38.1975 12 35.5899 -37.6499
4 16 0 39.1346 -45.2244 -12.292 34.9185 -38.1975 -12 35.5899 -37.6499 0 39.7059 -44.5098
4 16 12 35.5899 -37.6499 12.292 34.9185 -38.1975 0 39.1346 -45.2244 0 39.7059 -44.5098
2 24 0 39.1346 -45.2244 0 39.7059 -44.5098
2 24 12 35.5899 -37.6499 12.292 34.9185 -38.1975
2 24 -12 35.5899 -37.6499 -12.292 34.9185 -38.1975
2 24 -12 35.5899 -37.6499 0 39.7059 -44.5098
2 24 0 39.7059 -44.5098 12 35.5899 -37.6499
3 16 12 35.5899 -37.6499 0 39.7059 -44.5098 6 35.5899 -37.6499
3 16 6 35.5899 -37.6499 0 39.7059 -44.5098 -6 35.5899 -37.6499
3 16 -6 35.5899 -37.6499 0 39.7059 -44.5098 -12 35.5899 -37.6499
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
