File Detail parts/u9548.dat

Official File parts/u9548.dat

Part Attributes:

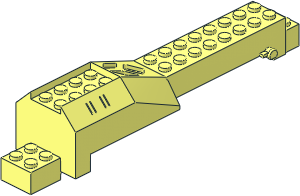

~Electric Light & Sound Insectoid Tail 4 x 20 x 4.333 - Upper Part

File Header:

0 ~Electric Light & Sound Insectoid Tail  4 x 20 x  4.333 - Upper Part
0 Name: u9548.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2022-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2022-09-15 [PTadmin] Official Update 2022-05
