File Detail parts/s/10312s02.dat

Official File parts/s/10312s02.dat

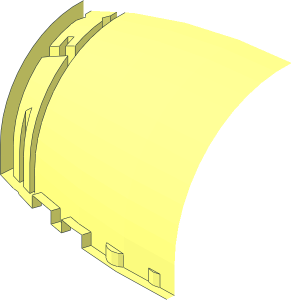

~Windscreen 6 x 10 x 3 Ovoid with 1 x 2 x 1 Cutout - 1/4

File Header:

0 ~Windscreen  6 x 10 x  3 Ovoid with  1 x  2 x  1 Cutout - 1/4
0 Name: s\10312s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2018-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2018-12-08 [PTadmin] Official Update 2018-02

Show contents
