Official File parts/s/196955bs02.dat
File Header:

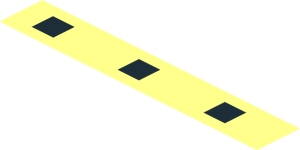

0 ~Timetable 3 Dot Ellipsis
0 Name: s\196955bs02.dat
0 Author: Ulrich Röder [UR]
0 !LDRAW_ORG Subpart UPDATE 2020-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2019-09-06 [cwdee] Minimise thin triangles
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
Show contents
0 // Font: "Swiss BT Bold"
0 // Main
4 16 0.6 0 0.1 0 0 0.1 0 0 -0.1 .6 0 -0.1
4 16 -0.2 0 0.1 -0.8 0 0.1 -0.8 0 -0.1 -0.2 0 -0.1
4 16 1.2 0 -0.2 1.2 0 0.2 0.8 0 0.1 0.8 0 -0.1
4 16 -1 0 -0.1 -1 0 0.1 -1.2 0 0.2 -1.2 0 -0.2
3 16 -0.8 0 -0.1 -1 0 -0.1 -1.2 0 -0.2
3 16 -0.2 0 -0.1 -0.8 0 -0.1 -1.2 0 -0.2
4 16 0 0 -0.1 -0.2 0 -0.1 -1.2 0 -0.2 1.2 0 -0.2
3 16 0.6 0 -0.1 0 0 -0.1 1.2 0 -0.2
3 16 1.2 0 -0.2 0.8 0 -0.1 0.6 0 -0.1
3 16 -1.2 0 0.2 -1 0 0.1 -0.8 0 0.1
3 16 -1.2 0 0.2 -0.8 0 0.1 -0.2 0 0.1
4 16 1.2 0 0.2 -1.2 0 0.2 -0.2 0 0.1 0 0 0.1
3 16 1.2 0 0.2 0 0 0.1 0.6 0 0.1
3 16 0.6 0 0.1 0.8 0 0.1 1.2 0 0.2
0 // Black
4 0 -0.8 0 -0.1 -0.8 0 0.1 -1 0 0.1 -1 0 -0.1
4 0 0 0 -0.1 0 0 0.1 -0.2 0 0.1 -0.2 0 -0.1
4 0 0.8 0 -0.1 0.8 0 0.1 0.6 0 0.1 0.6 0 -0.1
Status:
Official
This part has the following warnings
- Number in description may need a leading space
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Ulrich Röder
Licensed under CC BY 4.0
