File Detail parts/s/23816s01.dat

Official File parts/s/23816s01.dat

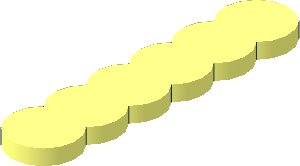

~Electric Power Functions 2.0 6-Wire Ribbon Cable End

File Header:

0 ~Electric Power Functions  2.0 6-Wire Ribbon Cable End
0 Name: s\23816s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2016-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2016-12-31 [PTadmin] Official Update 2016-01

Show contents

0 // To be used to indicate location of cable attachment
0 // in PF 2.0 elements with integral cable
