Official File parts/20684.dat
External site data provided by Rebrickable.com

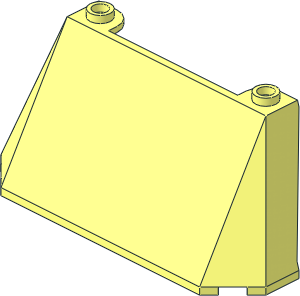

Windscreen 3 x 8 x 3
0 Windscreen  3 x  8 x  3
0 Name: 20684.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2016-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Scooby Doo, Set 75902

0 !HISTORY 2016-12-31 [PTadmin] Official Update 2016-01
Show file code:
0 // Bottom
4 16 60 72 -50 -60 72 -50 -58 72 -46 58 72 -46
4 16 -60 72 -50 -65.6159 72 -44.3841 -62.6159 72 -41.3841 -58 72 -46
0 BFC INVERTNEXT
1 16 -68.5 72 -38.5 1.5 0 -4.38406 0 -4 0 1.5 0 4.38406 box3u5p.dat
4 16 -74.3841 72 -35.6159 -80 72 -30 -76 72 -28 -71.3841 72 -32.6159
4 16 -80 72 -30 -80 72 -10 -76 72 -14 -76 72 -28
4 16 -80 72 -10 -70 72 -10 -70 72 -14 -76 72 -14
4 16 -60 72 -20 -60 72 -30 -64 72 -34 -64 72 -20
4 16 -60 72 -30 60 72 -30 64 72 -34 -64 72 -34
4 16 64 72 -34 60 72 -30 60 72 -20 64 72 -20
4 16 70 72 -14 70 72 -10 80 72 -10 76 72 -14
4 16 76 72 -14 80 72 -10 80 72 -30 76 72 -28
4 16 76 72 -28 80 72 -30 74.38406 72 -35.61594 71.38406 72 -32.61594
0 BFC INVERTNEXT
1 16 68.5 72 -38.5 -1.5 0 4.38406 0 -4 0 1.5 0 4.38406 box3u5p.dat
4 16 62.61594 72 -41.38406 65.61594 72 -44.38406 60 72 -50 58 72 -46
2 24 60 72 -20 64 72 -20
2 24 -60 72 -20 -64 72 -20
2 24 -80 72 -10 -70 72 -10
2 24 -70 72 -10 -70 72 -14
2 24 80 72 -10 70 72 -10
2 24 70 72 -10 70 72 -14
1 16 40 68 -40 -1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 20 68 -40 -1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 0 68 -40 -1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 -20 68 -40 -1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 -40 68 -40 -1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 0 70 -46 58 0 0 0 0 2 0 -1 0 rect.dat
1 16 -73.69203 70 -30.30797 0 -1 2.30797 -2 0 0 0 0 -2.30797 rect3.dat
1 16 -60.30797 70 -43.69203 0 -1 -2.30797 2 0 0 0 0 2.30797 rect3.dat
0 BFC INVERTNEXT
1 16 -73 70 -21 0 0 -3 2 0 0 0 7 0 box2-5.dat
1 16 0 70 -20 0 0 -64 2 0 0 0 -14 0 box3u2p.dat
0 BFC INVERTNEXT
1 16 73 70 -21 0 0 3 2 0 0 0 7 0 box2-5.dat
1 16 73.69203 70 -30.30797 0 1 -2.30797 -2 0 0 0 0 -2.30797 rect3.dat
1 16 60.30797 70 -43.69203 0 1 2.30797 2 0 0 0 0 2.30797 rect3.dat
4 16 -58 68 -46 -64 68 -34 64 68 -34 58 68 -46
3 16 -62.61594 68 -41.38406 -64 68 -34 -58 68 -46
3 16 -62.61594 68 -41.38406 -71.38406 68 -32.61594 -64 68 -34
4 16 -64 68 -34 -71.38406 68 -32.61594 -76 68 -28 -64 68 -20
3 16 -70 68 -20 -64 68 -20 -76 68 -28
4 16 -70 68 -14 -70 68 -20 -76 68 -28 -76 68 -14
1 16 -64 68 -14 -6 0 0 0 -1 0 0 0 -6 1-4ndis.dat
3 16 58 68 -46 64 68 -34 62.61594 68 -41.38406
3 16 64 68 -34 71.38406 68 -32.61594 62.61594 68 -41.38406
4 16 76 68 -28 71.38406 68 -32.61594 64 68 -34 64 68 -20
3 16 76 68 -28 64 68 -20 70 68 -20
4 16 76 68 -28 70 68 -20 70 68 -14 76 68 -14
1 16 64 68 -14 6 0 0 0 -1 0 0 0 -6 1-4ndis.dat
1 16 0 70 -50 60 0 0 0 0 -2 0 1 0 rect2p.dat
1 16 -77.19203 70 -32.80797 0 1 -2.80797 -2 0 0 0 0 2.80797 rect3.dat
1 16 -62.80797 70 -47.19203 0 1 2.80797 2 0 0 0 0 -2.80797 rect3.dat
1 16 -80 70 -20 0 1 0 -2 0 0 0 0 10 rect3.dat
1 16 62.80797 70 -47.19203 0 -1 -2.80797 2 0 0 0 0 -2.80797 rect3.dat
1 16 77.19203 70 -32.80797 0 -1 2.80797 2 0 0 0 0 2.80797 rect3.dat

1 16 80 70 -20 0 -1 0 2 0 0 0 0 10 rect3.dat
2 24 78.823529 64 -10 80 68 -10
2 24 74.654107 64 -10 70 64 -10
2 24 74.654107 64 -10 78.823529 64 -10
2 24 70 64 -10 70 72 -10
4 16 74.654107 64 -10 78.823529 64 -10 80 68 -10 80 72 -10
4 16 70 72 -10 70 64 -10 74.654107 64 -10 80 72 -10
4 16 70 72 -10 70 72 -14 70 68 -14 70 64 -10
3 16 70 64 -14 70 64 -10 70 68 -14
0 BFC INVERTNEXT
1 16 64 68 -14 6 0 0 0 -4 0 0 0 -6 1-4cylo.dat
4 16 60 64 -20 64 68 -20 64 72 -20 60 72 -20
3 16 64 64 -20 64 68 -20 60 64 -20
2 24 70 64 -14 70 64 -10
2 24 64 64 -20 60 64 -20
0 BFC INVERTNEXT
1 16 0 68 -20 0 0 -60 4 0 0 0 -10 0 box3u2p.dat
4 16 -64 72 -20 -64 68 -20 -60 64 -20 -60 72 -20
3 16 -60 64 -20 -64 68 -20 -64 64 -20
0 BFC INVERTNEXT
1 16 -64 68 -14 -6 0 0 0 -4 0 0 0 -6 1-4cylo.dat
4 16 -70 68 -14 -70 72 -14 -70 72 -10 -70 64 -10
3 16 -70 68 -14 -70 64 -10 -70 64 -14
4 16 -80 68 -10 -78.823529 64 -10 -74.654107 64 -10 -80 72 -10
4 16 -74.654107 64 -10 -70 64 -10 -70 72 -10 -80 72 -10
2 24 -60 64 -20 -64 64 -20
2 24 -70 64 -14 -70 64 -10
2 24 -70 64 -10 -70 72 -10
2 24 -74.654107 64 -10 -78.823529 64 -10
2 24 -70 64 -10 -74.654107 64 -10
2 24 -80 68 -10 -78.823529 64 -10
3 16 70 64 -14 74.654107 64 -10 70 64 -10
4 16 70 64 -14 70 64 -20 74.654107 64 -26.866262 74.654107 64 -10
1 16 64 64 -14 6 0 0 0 1 0 0 0 -6 1-4ndis.dat
3 16 60 64 -30 64 64 -20 60 64 -20
3 16 60 64 -30 70 64 -20 64 64 -20
4 16 74.654107 64 -26.866262 70 64 -20 60 64 -30 58.514035 64 -43.006334
4 16 60 64 -30 -60 64 -30 -58.514035 64 -43.006334 58.514035 64 -43.006334
4 16 -60 64 -30 -70 64 -20 -74.654107 64 -26.866262 -58.514035 64 -43.006334
3 16 -60 64 -20 -64 64 -20 -60 64 -30
3 16 -64 64 -20 -70 64 -20 -60 64 -30
1 16 -64 64 -14 -6 0 0 0 1 0 0 0 -6 1-4ndis.dat
4 16 -74.654107 64 -26.866262 -70 64 -20 -70 64 -14 -74.654107 64 -10
3 16 -70 64 -10 -74.654107 64 -10 -70 64 -14
2 24 74.654107 64 -26.866262 74.654107 64 -10
2 24 58.514035 64 -43.006334 74.654107 64 -26.866262
2 24 -74.654107 64 -26.866262 -74.654107 64 -10
2 24 -58.514035 64 -43.006334 -74.654107 64 -26.866262
2 24 -58.514035 64 -43.006334 58.514035 64 -43.006334
0 // Screen
4 16 56.71293 3 9.11765 60.88235 3 9.11765 78.82353 64 -10 74.65411 64 -10
4 16 58.51404 9.12376 -10.72619 56.71293 3 9.11765 74.65411 64 -10 74.65411 64 -26.86626
3 16 56.71293 3 9.11765 58.51404 9.12376 -10.72619 56.71293 3 -7.12398
3 16 58.51404 9.12376 -10.72619 74.65411 64 -26.86626 58.51404 64 -43.00633
4 16 -58.51404 9.12376 -10.72619 -56.71293 3 -7.12398 56.71293 3 -7.12398 58.51404 9.12376 -10.72619
4 16 58.51404 64 -43.00633 -58.51404 64 -43.00633 -58.51404 9.12376 -10.72619 58.51404 9.12376 -10.72619
3 16 -74.65411 64 -26.86626 -58.51404 9.12376 -10.72619 -58.51404 64 -43.00633
3 16 -56.71293 3 9.11765 -56.71293 3 -7.12398 -58.51404 9.12376 -10.72619
4 16 -56.71293 3 9.11765 -58.51404 9.12376 -10.72619 -74.65411 64 -26.86626 -74.65411 64 -10
4 16 -78.82353 64 -10 -60.88235 3 9.11765 -56.71293 3 9.11765 -74.65411 64 -10
2 24 60.88235 3 9.11765 78.82353 64 -10
2 24 56.71293 3 9.11765 74.65411 64 -10
2 24 58.51404 9.12376 -10.72619 74.65411 64 -26.86626
2 24 58.51404 64 -43.00633 58.51404 9.12376 -10.72619
2 24 56.71293 3 -7.12398 58.51404 9.12376 -10.72619
2 24 -58.51404 64 -43.00633 -58.51404 9.12376 -10.72619
2 24 -58.51404 9.12376 -10.72619 -74.65411 64 -26.86626
2 24 -56.71293 3 9.11765 -74.65411 64 -10
2 24 -60.88235 3 9.11765 -78.82353 64 -10
2 24 -56.71293 3 -7.12398 -58.51404 9.12376 -10.72619
3 16 80 68 -10 78.82353 64 -10 80 68 -30
4 16 78.82353 64 -10 60.88235 3 9.11765 60 0 -10 80 68 -30
3 16 60 0 9.11765 60 0 -10 60.88235 3 9.11765
3 16 60 0 -10 74.38406 68 -35.61594 80 68 -30
3 16 60 0 -10 65.61594 68 -44.38406 74.38406 68 -35.61594
3 16 60 68 -50 65.61594 68 -44.38406 60 0 -10
4 16 60 0 -10 -60 0 -10 -60 68 -50 60 68 -50
3 16 -60 68 -50 -60 0 -10 -65.61594 68 -44.38406
3 16 -65.61594 68 -44.38406 -60 0 -10 -74.38406 68 -35.61594
3 16 -74.38406 68 -35.61594 -60 0 -10 -80 68 -30
3 16 -78.82353 64 -10 -80 68 -10 -80 68 -30
4 16 -60 0 -10 -60.88235 3 9.11765 -78.82353 64 -10 -80 68 -30
3 16 -60 0 -10 -60 0 9.11765 -60.88235 3 9.11765
2 24 60 0 -10 80 68 -30
2 24 60 0 -10 60 68 -50
2 24 -60 0 -10 -80 68 -30
2 24 -60 0 -10 -60 68 -50
2 24 56.71293 3 9.11765 56.71293 3 -7.12398
2 24 56.71293 3 -7.12398 -56.71293 3 -7.12398
2 24 -56.71293 3 9.11765 -56.71293 3 -7.12398
1 16 49 3 -.88235 -10 0 0 0 -1 0 0 0 10 1-4disc.dat
4 16 39 3 -6 39 3 -.88235 49 3 -.88235 56.71293 3 -7.12398
4 16 56.71293 3 -7.12398 49 3 -.88235 49 3 9.11765 56.71293 3 9.11765
4 16 56.71293 3 -7.12398 -56.71293 3 -7.12398 -39 3 -6 39 3 -6
4 16 -49 3 -.88235 -39 3 -.88235 -39 3 -6 -56.71293 3 -7.12398
4 16 -49 3 9.11765 -49 3 -.88235 -56.71293 3 -7.12398 -56.71293 3 9.11765
1 16 -49 3 -.88235 10 0 0 0 -1 0 0 0 10 1-4disc.dat
4 16 60.88235 3 9.11765 56.71293 3 9.11765 49 0 9.11765 60 0 9.11765
3 16 56.71293 3 9.11765 49 3 9.11765 49 0 9.11765
1 16 49 0 -.88235 -10 0 0 0 3 0 0 0 10 1-4cylo.dat
0 BFC INVERTNEXT
1 16 0 1.5 -.88236 0 0 -39 1.5 0 0 0 -5.11764 0 box3u4a.dat
1 16 -49 0 -.88235 10 0 0 0 3 0 0 0 10 1-4cylo.dat
4 16 -49 0 9.11765 -56.71293 3 9.11765 -60.88235 3 9.11765 -60 0 9.11765
3 16 -56.71293 3 9.11765 -49 0 9.11765 -49 3 9.11765
2 24 60.88235 3 9.11765 56.71293 3 9.11765
2 24 56.71293 3 9.11765 49 3 9.11765
2 24 -49 3 9.11765 -56.71293 3 9.11765
2 24 -60.88235 3 9.11765 -56.71293 3 9.11765
2 24 60.88235 3 9.11765 60 0 9.11765
2 24 60 0 9.11765 49 0 9.11765
2 24 60 0 -10 60 0 9.11765
2 24 -60.88235 3 9.11765 -60 0 9.11765
2 24 -60 0 9.11765 -49 0 9.11765
2 24 -60 0 -10 -60 0 9.11765
2 24 -60 0 -10 60 0 -10
4 16 60 0 9.11765 49 0 9.11765 49 0 -.88235 60 0 -10
4 16 60 0 -10 49 0 -.88235 39 0 -.88235 39 0 -6
1 16 49 0 -.88235 -10 0 0 0 1 0 0 0 10 1-4disc.dat
4 16 -60 0 -10 60 0 -10 39 0 -6 -39 0 -6
1 16 -49 0 -.88235 10 0 0 0 1 0 0 0 10 1-4disc.dat
4 16 -39 0 -.88235 -49 0 -.88235 -60 0 -10 -39 0 -6
4 16 -49 0 -.88235 -49 0 9.11765 -60 0 9.11765 -60 0 -10
1 16 50 0 0 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 -50 0 0 1 0 0 0 1 0 0 0 1 stud2.dat

Status

Official Official
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line 72: 2 24 78.823529 64 -10 80 68 -10
    Line 73: 2 24 74.654107 64 -10 70 64 -10
    Line 74: 2 24 74.654107 64 -10 78.823529 64 -10
    Line 76: 4 16 74.654107 64 -10 78.823529 64 -10 80 68 -10 80 72 -10
    Line 77: 4 16 70 72 -10 70 64 -10 74.654107 64 -10 80 72 -10
    Line 94: 4 16 -80 68 -10 -78.823529 64 -10 -74.654107 64 -10 -80 72 -10
    Line 95: 4 16 -74.654107 64 -10 -70 64 -10 -70 72 -10 -80 72 -10
    Line 99: 2 24 -74.654107 64 -10 -78.823529 64 -10
    Line 100: 2 24 -70 64 -10 -74.654107 64 -10
    Line 101: 2 24 -80 68 -10 -78.823529 64 -10
    Line 102: 3 16 70 64 -14 74.654107 64 -10 70 64 -10
    Line 103: 4 16 70 64 -14 70 64 -20 74.654107 64 -26.866262 74.654107 64 -10
    Line 107: 4 16 74.654107 64 -26.866262 70 64 -20 60 64 -30 58.514035 64 -43.006334
    Line 108: 4 16 60 64 -30 -60 64 -30 -58.514035 64 -43.006334 58.514035 64 -43.006334
    Line 109: 4 16 -60 64 -30 -70 64 -20 -74.654107 64 -26.866262 -58.514035 64 -43.006334
    Line 113: 4 16 -74.654107 64 -26.866262 -70 64 -20 -70 64 -14 -74.654107 64 -10
    Line 114: 3 16 -70 64 -10 -74.654107 64 -10 -70 64 -14
    Line 115: 2 24 74.654107 64 -26.866262 74.654107 64 -10
    Line 116: 2 24 58.514035 64 -43.006334 74.654107 64 -26.866262
    Line 117: 2 24 -74.654107 64 -26.866262 -74.654107 64 -10
    Line 118: 2 24 -58.514035 64 -43.006334 -74.654107 64 -26.866262
    Line 119: 2 24 -58.514035 64 -43.006334 58.514035 64 -43.006334
