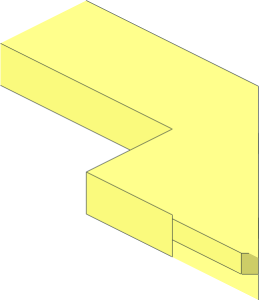

0 ~Plate 6 x 6 Octagonal Open Center Quadrant
0 Name: s\30062s4.dat
0 Author: Mark Kennedy [mkennedy]
0 !LDRAW_ORG Subpart UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
1 16 40 4 40 0 0 -1 0 1 0 1 0 0 ribt45.dat
1 16 48.87 4 29.13 1 0 -4.13 0 -1 0 1 0 4.13 rect1.dat
1 16 29.13 4 48.87 1 0 -4.13 0 -1 0 1 0 4.13 rect1.dat
0 BFC INVERTNEXT
1 16 0 8 50 20 0 0 0 -4 0 0 0 6 box5.dat
1 16 0 4 50 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 -18 6 50 2 0 0 0 2 0 0 0 1 box.dat
1 16 18 6 50 2 0 0 0 2 0 0 0 1 box.dat
3 16 52 4 24 24 4 24 24 4 52
4 16 -20 0 40 20 0 40 20 0 60 -20 0 60
3 16 20 0 60 20 0 20 60 0 20
4 16 -20 8 60 20 8 60 20 8 56 -20 8 56
3 16 20 8 60 26 8 54 24 8 52
4 16 20 8 60 24 8 52 24 8 24 20 8 20
4 16 20 8 20 24 8 24 52 8 24 60 8 20
3 16 60 8 20 52 8 24 54 8 26
4 16 -20 8 44 20 8 44 20 8 40 -20 8 40
0 BFC INVERTNEXT
1 16 38 6 38 0 -14 0 2 0 0 0 0 -14 box2-5.dat
1 16 30 4 30 0 -10 0 4 0 0 0 0 -10 box2-5.dat
1 16 0 4 40 20 0 0 0 0 4 0 1 0 rect2p.dat
1 16 0 4 60 20 0 0 0 0 4 0 -1 0 rect.dat
0
1 16 25 6 53 0 0 1 2 0 0 0 1 1 rect3.dat
1 16 53 6 25 0 0 1 2 0 0 0 -1 1 rect3.dat
1 16 40 2 40 0 0 -20 -2 0 0 0 -1 20 rect1.dat
1 16 57 6 23 0 0 -3 2 0 0 0 -1 3 rect1.dat
1 16 23 6 57 0 0 -3 2 0 0 0 -1 3 rect1.dat
0
