Official File parts/s/30072s02.dat
File Header:

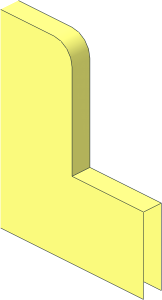

0 ~Brick 12 x 24 Underside Edge Fillet
0 Name: s\30072s02.dat
0 Author: William Howard [WilliamH]
0 !LDRAW_ORG Subpart UPDATE 2025-09
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2013-07-21 [PTadmin] Official Update 2013-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
1 16 -2 -8 -1 2 0 0 0 0 -2 0 1 0 1-4disc.dat
1 16 -2 -8 -1 2 0 0 0 0 -2 0 2 0 1-4cyli.dat
1 16 -5 -10 0 3 0 0 0 2 0 0 0 1 rect2p.dat
1 16 4 2 0 4 0 0 0 2 0 0 0 1 rect.dat
1 16 0 -3 0 0 -2 0 5 0 0 0 0 1 rect2p.dat
1 16 -2 -8 1 0 0 2 -2 0 0 0 -1 0 1-4disc.dat
4 16 -2 -10 1 -2 -8 1 -8 10 1 -8 -10 1
4 16 -2 -8 1 0 -8 1 0 2 1 -8 10 1
4 16 0 2 1 8 2 1 8 10 1 -8 10 1
4 16 -8 10 -1 -2 -8 -1 -2 -10 -1 -8 -10 -1
4 16 0 2 -1 0 -8 -1 -2 -8 -1 -8 10 -1
4 16 8 10 -1 8 2 -1 0 2 -1 -8 10 -1
1 16 -2 -8 -1 2 0 0 0 0 -2 0 1 0 1-4edge.dat
1 16 -2 -8 1 2 0 0 0 0 -2 0 1 0 1-4edge.dat
2 24 -8 10 -1 8 10 -1
2 24 8 2 -1 8 10 -1
2 24 8 2 1 8 10 1
2 24 -8 10 1 8 10 1
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © William Howard
Licensed under CC BY 2.0
