File Detail parts/s/30296s01.dat

Official File parts/s/30296s01.dat

File Header:

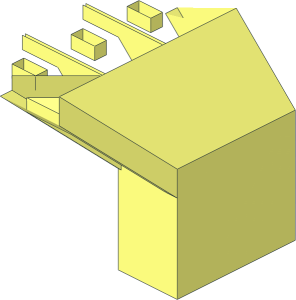

0 ~Arch  2 x 14 x  2.333 - Leg
0 Name: s\30296s01.dat
0 Author: Joseph H. Cardana
0 !LDRAW_ORG Subpart UPDATE 2025-09
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2005-03-26 [Holly-Wood] Fixed and overhauled part, subfiled, BFCed
0 !HISTORY 2010-04-05 [PTadmin] Official Update 2010-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09

Show contents

2 24 124 56 -6 136 56 -6
2 24 124 56 -6 124 56 26
2 24 124 56 26 136 56 26
2 24 136 56 -6 136 56 26
2 24 120 56 -10 140 56 -10
2 24 120 56 30 120 56 -10
2 24 120 56 30 140 56 30
2 24 140 56 30 140 56 -10
2 24 136 24 -6 136 56 -6
2 24 124 6 -6 124 56 -6
2 24 124 6 26 124 56 26
2 24 136 24 26 136 56 26
2 24 140 20 -10 140 56 -10
2 24 140 20 30 140 56 30
2 24 120 56 30 120 28 30
2 24 120 56 -10 120 28 -10
2 24 136 24 -6 124 6 -6
2 24 124 6 -6 124 6 26
2 24 136 24 26 124 6 26
2 24 136 24 -6 136 24 26
2 24 120 0 -30 140 20 -10
2 24 120 0 30 120 0 -30
2 24 120 0 30 140 20 30
2 24 140 20 30 140 20 -10
2 24 136 28 -10 140 28 -10
2 24 121 28 -10 120 28 -10
2 24 120 28 -10 120 28 -6
2 24 120 28 11 120 28 10
2 24 120 28 30 120 28 26
2 24 136 28 -10 136 24 -10
2 24 121 28 -10 121 9 -10
2 24 115.5 4 -10.5 115.5 23.5 -10.5
2 24 116.5 4 -9.5 116.5 24.5 -9.5
2 24 120 28 -6 120 4 -6
2 24 120 4 10 120 28 10
2 24 120 4 11 120 28 11
2 24 120 4 26 120 28 26
2 24 120 8 -30 140 28 -10
2 24 120 12 -26 136 28 -10
2 24 120 8 -26 136 24 -10
2 24 136 24 -10 121 9 -10
2 24 121 28 -10 105 12 -26
2 24 100 8 -30 120 28 -10
2 24 116.5 24.5 -9.5 120 28 -6
2 24 100 8 -26 115.5 23.5 -10.5
2 24 100 8 -10.5 115.5 23.5 -10.5
2 24 100 8 -9.5 116.5 24.5 -9.5
2 24 100 8 10 120 28 10
2 24 100 8 11 120 28 11
2 24 100 8 26 120 28 26
2 24 100 8 30 120 28 30
2 24 120 12 -26 105 12 -26
2 24 105 12 -26 105 8 -26
2 24 120 12 -26 120 8 -26
2 24 120 8 -26 105 8 -26
2 24 120 8 -11 105 8 -26
2 24 120 8 -11 120 8 -26
2 24 120 8 -11 121 9 -10
2 24 100 8 -30 100 8 -26
2 24 100 8 -10.5 88 8 -10.5
2 24 100 8 -9.5 100 8 -10.5
2 24 100 8 -9.5 88 8 -9.5
2 24 100 8 10 88 8 10
2 24 100 8 11 100 8 10
2 24 100 8 11 88 8 11
2 24 100 8 30 100 8 26
2 24 120 8 -30 120 0 -30
2 24 100 4 -26 100 8 -26
2 24 88 8 -10.5 88 4 -10.5
2 24 88 8 -9.5 88 4 -9.5
2 24 88 8 10 88 4 10
2 24 88 8 11 88 4 11
2 24 116.5 4 -9.5 120 4 -6
2 24 100 4 -26 115.5 4 -10.5
2 24 120 4 26 120 4 -6
2 24 115.5 4 -10.5 88 4 -10.5
2 24 116.5 4 -9.5 88 4 -9.5
2 24 120 4 10 88 4 10
2 24 120 4 11 88 4 11

1 16 100 4 -20 4 0 0 0 4 0 0 0 2 box5.dat
1 16 100 4 0 4 0 0 0 4 0 0 0 2 box5.dat
1 16 100 4 19 4 0 0 0 4 0 0 0 2 box5.dat

4 16 120 56 -10 124 56 -6 136 56 -6 140 56 -10
4 16 120 56 30 124 56 26 124 56 -6 120 56 -10
4 16 140 56 30 136 56 26 124 56 26 120 56 30
4 16 140 56 -10 136 56 -6 136 56 26 140 56 30
4 16 136 24 -6 136 56 -6 124 56 -6 124 6 -6
4 16 124 6 -6 124 56 -6 124 56 26 124 6 26
4 16 124 6 26 124 56 26 136 56 26 136 24 26
4 16 136 56 -6 136 24 -6 136 24 26 136 56 26
4 16 124 6 26 136 24 26 136 24 -6 124 6 -6
4 16 140 56 -10 140 28 -10 120 28 -10 120 56 -10
3 16 120 28 -6 120 56 -10 120 28 -10
3 16 120 28 10 120 56 -10 120 28 -6
4 16 120 56 30 120 56 -10 120 28 10 120 28 11
3 16 120 28 26 120 56 30 120 28 11
3 16 120 28 30 120 56 30 120 28 26
4 16 120 28 30 140 20 30 140 56 30 120 56 30
4 16 140 56 30 140 20 30 140 20 -10 140 56 -10
4 16 115.5 4 -10.5 115.5 23.5 -10.5 100 8 -26 100 4 -26
4 16 120 4 -6 120 28 -6 116.5 24.5 -9.5 116.5 4 -9.5
4 16 120 4 10 120 28 10 120 28 -6 120 4 -6
4 16 120 4 26 120 28 26 120 28 11 120 4 11
4 16 100 8 30 120 0 30 140 20 30 120 28 30
4 16 100 8 -9.5 116.5 24.5 -9.5 115.5 23.5 -10.5 100 8 -10.5
4 16 100 8 -10.5 88 8 -10.5 88 8 -9.5 100 8 -9.5
4 16 100 8 11 120 28 11 120 28 10 100 8 10
4 16 100 8 10 88 8 10 88 8 11 100 8 11
4 16 100 8 26 100 8 30 120 28 30 120 28 26
3 16 100 8 -10.5 116 23.5 -10.5 115.5 4 -10.5
4 16 88 4 -10.5 88 8 -10.5 100 8 -10.5 116 4 -10.5
3 16 116.5 4 -9.5 116.5 24.5 -9.5 100 8 -9.5
4 16 116.5 4 -9.5 100 8 -9.5 88 8 -9.5 88 4 -9.5
3 16 100 8 10 120 28 10 120 4 10
4 16 88 4 10 88 8 10 100 8 10 120 4 10
3 16 120 4 11 120 28 11 100 8 11
4 16 120 4 11 100 8 11 88 8 11 88 4 11
3 16 120 28 26 120 4 26 100 8 26
4 16 120 0 -30 140 20 -10 140 20 30 120 0 30
4 16 121 9 -10 121 28 -10 136 28 -10 136 24 -10
4 16 105 8 -26 105 12 -26 121 28 -10 121 9 -10
3 16 105 8 -26 121 9 -10 120 8 -11
4 16 120 8 -26 120 8 -11 121 9 -10 136 24 -10
3 16 105 8 -26 120 8 -11 120 8 -26
4 16 120 8 -26 136 24 -10 136 28 -10 120 12 -26
4 16 120 12 -26 105 12 -26 105 8 -26 120 8 -26
4 16 140 28 -10 120 8 -30 120 12 -26 136 28 -10
4 16 120 8 -30 140 28 -10 140 20 -10 120 0 -30
4 16 105 12 -26 120 12 -26 120 8 -30 100 8 -30
4 16 100 8 -30 120 28 -10 121 28 -10 105 12 -26
4 16 100 8 -30 100 8 -26 120 28 -6 120 28 -10
