Official File parts/s/30394s02.dat
File Header:

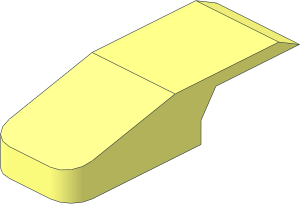

0 ~Excavator Bucket 6 x 3 with Click Hinge 2-Finger - Tooth
0 Name: s\30394s02.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Subpart UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2022-11-06 [Philo] Refined shape
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
2 24 4 -1.905 -1.5 4 -4 -0.0648
2 24 4 0 -1.5 4 -1.905 -1.5
2 24 -4 -1.905 -1.5 -4 -4 -0.0648
2 24 -4 0 -1.5 -4 -1.905 -1.5
2 24 -4 -4 8 -4 -4 -0.0648
2 24 4 -4 8 4 -4 -0.0648
3 16 -4 -1.905 -1.5 -4 0 -1.5 -4 -5 -4
3 16 -4 -4 -0.0648 -4 -1.905 -1.5 -4 -5 -4
3 16 4 -1.905 -1.5 4 -4 -0.0648 4 -5 -4
3 16 4 0 -1.5 4 -1.905 -1.5 4 -5 -4
4 16 -4 -4 -0.0648 -4 -5 -4 -4 -5 6 -4 -4 8
4 16 4 -4 8 4 -5 6 4 -5 -4 4 -4 -0.0648
1 16 0 -4.5 7 0 0 -4 0.5 1 0 1 0 0 rect.dat
1 16 0 -5 1 -4 0 0 0 1 0 0 0 -5 rect3.dat
1 16 0 -1.25 -14 -2 0 0 0 0 1.25 0 1 0 rect2p.dat
4 16 -4 0 -12 4 0 -12 2 0 -14 -2 0 -14
1 16 0 0 -6.75 0 0 -4 0 -1 0 -5.25 0 0 rect2p.dat
4 16 4 -5 -4 4 -3 -12 4 0 -12 4 0 -1.5
4 16 -4 0 -1.5 -4 0 -12 -4 -3 -12 -4 -5 -4
1 16 -2 0 -12 -2 0 0 0 -3 0 0 0 -2 1-4edge.dat
1 16 -2 0 -12 -2 0 0 0 -3 0 0 0 -2 1-4chrd.dat
1 16 2 0 -12 0 0 2 0 -3 0 -2 0 0 1-4edge.dat
1 16 2 0 -12 0 0 2 0 -3 0 -2 0 0 1-4chrd.dat
1 16 -2 -3 -12 -2 0 0 0 1 0.5 0 0 -2 1-4edge.dat
1 16 -2 -3 -12 -2 0 0 0 1 0.5 0 0 -2 1-4chrd.dat
1 16 -2 -2.5 -12 0 0 -2 0 -0.5 0 -2 0 0 1-4cyls.dat
1 16 -2 0 -12 -2 0 0 0 -2.5 0 0 0 -2 1-4cyli.dat
1 16 -2 0 -12 0 0 -2 0 -3 0 -2 0 0 1-4chrd.dat
1 16 2 -3 -12 2 0 0 0 1 0.5 0 0 -2 1-4edge.dat
1 16 2 -3 -12 2 0 0 0 1 0.5 0 0 -2 1-4chrd.dat
1 16 2 -2.5 -12 0 0 2 0 -0.5 0 -2 0 0 1-4cyls.dat
1 16 2 0 -12 2 0 0 0 -2.5 0 0 0 -2 1-4cyli.dat
4 16 -2 -2.5 -14 2 -2.5 -14 4 -3 -12 -4 -3 -12
1 16 0 -4 -8 0 0 -4 -1 1 0 4 0 0 rect2p.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Michael Heidemann
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Philippe Hurbain,
Orion Pobursky,
