File Detail parts/s/31000s01.dat

Official File parts/s/31000s01.dat

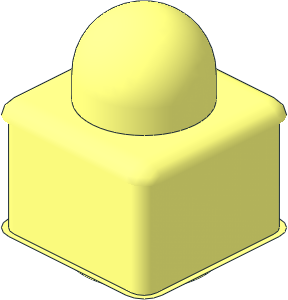

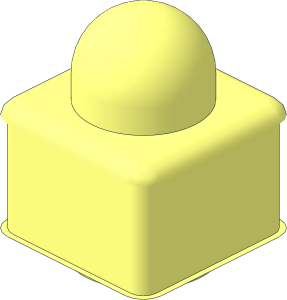

~Duplo Primo Brick 1 x 1 without Side Faces

File Header:

0 ~Duplo Primo Brick  1 x  1 without Side Faces
0 Name: s\31000s01.dat
0 Author: Steffen [Steffen]
0 !LDRAW_ORG Subpart UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2011-12-10 [Steffen] subfiled from 31000.dat
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 primotop.dat
1 16 0 4 0 1 0 0 0 92 0 0 0 1 primobot.dat
4 16 46 0 -46 40 0 -40 -40 0 -40 -46 0 -46
4 16 46 0 46 40 0 40 40 0 -40 46 0 -46
4 16 -46 0 46 -40 0 40 40 0 40 46 0 46
4 16 -46 0 -46 -40 0 -40 -40 0 40 -46 0 46
4 16 -44 4 -44 44 4 -44 46 4 -46 -46 4 -46
4 16 44 4 -44 44 4 44 46 4 46 46 4 -46
4 16 44 4 44 -44 4 44 -46 4 46 46 4 46
4 16 -44 4 44 -44 4 -44 -46 4 -46 -46 4 46
4 16 -46 82 56 46 82 56 46 10 56 -46 10 56
4 16 46 10 -56 46 82 -56 -46 82 -56 -46 10 -56
4 16 56 82 46 56 82 -46 56 10 -46 56 10 46
4 16 -56 82 -46 -56 82 46 -56 10 46 -56 10 -46
2 24 46 82 -60 -46 82 -60
2 24 46 82 60 -46 82 60
2 24 -60 82 -46 -60 82 46
2 24 60 82 46 60 82 -46
2 24 46 82 -56 -46 82 -56
2 24 46 82 56 -46 82 56
2 24 -56 82 -46 -56 82 46
2 24 56 82 46 56 82 -46
4 16 46 82 -56 46 82 -60 -46 82 -60 -46 82 -56
4 16 -46 82 56 -46 82 60 46 82 60 46 82 56
4 16 -56 82 -46 -60 82 -46 -60 82 46 -56 82 46
4 16 56 82 46 60 82 46 60 82 -46 56 82 -46
1 16 -46 10 -46 0 92 0 0 0 -10 -14 0 0 1-4cyli.dat
1 16 46 10 46 0 -92 0 0 0 -10 14 0 0 1-4cyli.dat
1 16 -46 10 -46 -14 0 0 0 0 -10 0 92 0 1-4cyli.dat
1 16 46 10 46 14 0 0 0 0 -10 0 -92 0 1-4cyli.dat
0 BFC INVERTNEXT
1 16 -46 10 -46 0 92 0 0 0 -6 -10 0 0 1-4cyli.dat
0 BFC INVERTNEXT
1 16 46 10 46 0 -92 0 0 0 -6 10 0 0 1-4cyli.dat
0 BFC INVERTNEXT
1 16 -46 10 -46 -10 0 0 0 0 -6 0 92 0 1-4cyli.dat
0 BFC INVERTNEXT
1 16 46 10 46 10 0 0 0 0 -6 0 -92 0 1-4cyli.dat
1 16 46 10 46 14 0 0 0 -10 0 0 0 14 1-8sphe.dat
1 16 -46 10 -46 -14 0 0 0 -10 0 0 0 -14 1-8sphe.dat
1 16 46 10 -46 0 0 14 0 -10 0 -14 0 0 1-8sphe.dat
1 16 -46 10 46 0 0 -14 0 -10 0 14 0 0 1-8sphe.dat
0 BFC INVERTNEXT
1 16 46 10 46 10 0 0 0 -6 0 0 0 10 1-8sphe.dat
0 BFC INVERTNEXT
1 16 -46 10 -46 -10 0 0 0 -6 0 0 0 -10 1-8sphe.dat
0 BFC INVERTNEXT
1 16 46 10 -46 0 0 10 0 -6 0 -10 0 0 1-8sphe.dat
0 BFC INVERTNEXT
1 16 -46 10 46 0 0 -10 0 -6 0 10 0 0 1-8sphe.dat
0 BFC INVERTNEXT
1 16 46 10 46 10 0 0 0 72 0 0 0 10 1-4cyli.dat
0 BFC INVERTNEXT
1 16 -46 10 -46 -10 0 0 0 72 0 0 0 -10 1-4cyli.dat
0 BFC INVERTNEXT
1 16 46 10 -46 0 0 10 0 72 0 -10 0 0 1-4cyli.dat
0 BFC INVERTNEXT
1 16 -46 10 46 0 0 -10 0 72 0 10 0 0 1-4cyli.dat
1 16 46 82 46 2 0 0 0 -1 0 0 0 2 1-4ring5.dat
1 16 -46 82 -46 -2 0 0 0 -1 0 0 0 -2 1-4ring5.dat
1 16 46 82 -46 0 0 2 0 -1 0 -2 0 0 1-4ring5.dat
1 16 -46 82 46 0 0 -2 0 -1 0 2 0 0 1-4ring5.dat
1 16 46 82 46 2 0 0 0 -1 0 0 0 2 1-4ring6.dat
1 16 -46 82 -46 -2 0 0 0 -1 0 0 0 -2 1-4ring6.dat
1 16 46 82 -46 0 0 2 0 -1 0 -2 0 0 1-4ring6.dat
1 16 -46 82 46 0 0 -2 0 -1 0 2 0 0 1-4ring6.dat
1 16 46 82 46 10 0 0 0 1 0 0 0 10 1-4edge.dat
1 16 -46 82 -46 -10 0 0 0 1 0 0 0 -10 1-4edge.dat
1 16 46 82 -46 0 0 10 0 1 0 -10 0 0 1-4edge.dat
1 16 -46 82 46 0 0 -10 0 1 0 10 0 0 1-4edge.dat
1 16 46 82 46 14 0 0 0 1 0 0 0 14 1-4edge.dat
1 16 -46 82 -46 -14 0 0 0 1 0 0 0 -14 1-4edge.dat
1 16 46 82 -46 0 0 14 0 1 0 -14 0 0 1-4edge.dat
1 16 -46 82 46 0 0 -14 0 1 0 14 0 0 1-4edge.dat

Status:

Official
