Official File parts/s/3195s01.dat
File Header:

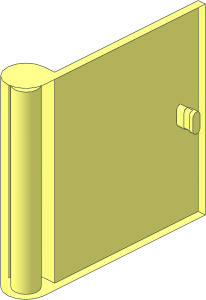

0 ~Door 1 x 5 x 4 Left without Front Face
0 Name: s\3195s01.dat
0 Author: James Jessiman
0 !LDRAW_ORG Subpart UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2004-07-26 [cwdee] Subfiled from complete part, BFCed
0 !HISTORY 2004-11-06 [PTadmin] Official Update 2004-04
0 !HISTORY 2007-08-31 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2024-08-03 [RainbowDolphin] Made BFC CCW, removed T-junctions
0 !HISTORY 2025-04-26 [MagFors] Reworked bottom surface
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08
Show contents
1 16 0 96 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
2 24 6 96 10 6 96 90
2 24 6 96 90 10 96 90
2 24 10 96 90 10 96 0
1 16 0 96 0 10 0 0 0 1 0 0 0 -10 3-4edge.dat
2 24 0 96 10 6 96 10
1 16 0 4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
2 24 6 0 10 6 0 90
2 24 6 0 90 10 0 90
2 24 10 0 90 10 0 0
1 16 0 0 0 10 0 0 0 1 0 0 0 -10 3-4edge.dat
2 24 0 0 10 6 0 10
2 24 6 0 10 6 96 10
2 24 6 0 90 6 96 90
2 24 10 0 90 10 96 90
2 24 6 43 80 6 53 80
2 24 6 45 78 6 51 78
2 24 10 45 82 10 51 82
2 24 10 45 78 10 51 78
2 24 13 43 80 13 53 80
2 24 13 45 78 13 51 78
2 24 15 45 82 15 51 82
2 24 15 45 78 15 51 78
2 24 10 43 80 12 43 80
2 24 10 53 80 12 53 80
1 16 6 45 80 0 1 0 -2 0 0 0 0 -2 1-4edge.dat
1 16 6 51 80 0 1 0 2 0 0 0 0 -2 1-4edge.dat
1 16 10 45 80 0 1 0 0 0 -2 2 0 0 2-4edge.dat
1 16 10 51 80 0 1 0 0 0 2 2 0 0 2-4edge.dat
1 16 13 45 80 0 1 0 -2 0 0 0 0 -2 1-4edge.dat
1 16 13 51 80 0 1 0 2 0 0 0 0 -2 1-4edge.dat
1 16 15 45 80 0 1 0 0 0 -2 2 0 0 2-4edge.dat
1 16 15 51 80 0 1 0 0 0 2 2 0 0 2-4edge.dat
2 24 13 53 80 6 53 80
2 24 13 43 80 6 43 80
1 16 0 96 0 6 0 0 0 -1 0 0 0 6 4-4ndis.dat
1 16 0 96 0 -10 0 0 0 -1 0 0 0 10 1-8chrd.dat
1 16 0 96 0 0 0 -10 0 -1 0 10 0 0 1-8chrd.dat
1 16 0 96 0 0 0 -10 0 -1 0 -10 0 0 1-8chrd.dat
1 16 0 96 0 -10 0 0 0 -1 0 0 0 -10 1-8chrd.dat
1 16 0 96 0 10 0 0 0 -1 0 0 0 -10 1-8chrd.dat
1 16 0 96 0 0 0 10 0 -1 0 -10 0 0 1-8chrd.dat
4 16 0 96 10 0 96 6 -6 96 6 -7.071 96 7.071
4 16 -7.071 96 7.071 -6 96 6 -6 96 0 -10 96 0
4 16 -10 96 0 -6 96 0 -6 96 -6 -7.071 96 -7.071
4 16 -7.071 96 -7.071 -6 96 -6 0 96 -6 0 96 -10
4 16 0 96 -10 0 96 -6 6 96 -6 7.071 96 -7.071
4 16 7.071 96 -7.071 6 96 -6 6 96 0 10 96 0
4 16 0 96 6 0 96 10 6 96 10 6 96 6
3 16 10 96 0 6 96 6 6 96 10
3 16 10 96 0 6 96 0 6 96 6
4 16 6 96 90 10 96 90 10 96 0 6 96 10
0 BFC INVERTNEXT
1 16 0 4 0 6 0 0 0 92 0 0 0 6 4-4cyli.dat
1 16 0 4 0 6 0 0 0 -1 0 0 0 6 4-4disc.dat
4 16 6 96 10 6 53 78 6 53 80 6 96 90
4 16 6 96 90 6 53 80 6 43 80 6 0 90
4 16 6 0 90 6 43 80 6 43 78 6 0 10
4 16 6 0 10 6 43 78 6 53 78 6 96 10
4 16 6 96 90 6 0 90 10 0 90 10 96 90
1 16 0 0 0 0 0 -10 0 96 0 -10 0 0 2-4cyli.dat
4 16 0 96 10 0 0 10 6 0 10 6 96 10
1 16 0 0 0 10 0 0 0 1 0 0 0 -10 3-4chrd.dat
3 16 6 0 10 0 0 10 10 0 0
4 16 10 0 90 6 0 90 6 0 10 10 0 0
4 16 10 45 82 15 45 82 15 51 82 10 51 82
4 16 13 53 80 13 43 80 6 43 80 6 53 80
4 16 15 51 78 15 45 78 13 45 78 13 51 78
4 16 6 45 78 10 45 78 10 51 78 6 51 78
4 16 13 51 78 13 45 78 13 45 80 13 51 80
4 16 15 45 82 15 45 78 15 51 78 15 51 82
1 16 6 45 80 0 1 0 -2 0 0 0 0 -2 1-4ndis.dat
1 16 6 51 80 0 1 0 2 0 0 0 0 -2 1-4ndis.dat
1 16 10 45 80 0 -1 0 0 0 -2 2 0 0 2-4ndis.dat
1 16 10 51 80 0 -1 0 0 0 2 2 0 0 2-4ndis.dat
1 16 13 45 80 0 1 0 -2 0 0 0 0 -2 1-4disc.dat
1 16 13 51 80 0 1 0 2 0 0 0 0 -2 1-4disc.dat
1 16 15 45 80 0 -1 0 0 0 -2 2 0 0 2-4disc.dat
1 16 15 51 80 0 -1 0 0 0 2 2 0 0 2-4disc.dat
1 16 10 45 80 0 5 0 -2 0 0 0 0 2 1-4cyli.dat
1 16 10 51 80 0 5 0 2 0 0 0 0 2 1-4cyli.dat
0 BFC INVERTNEXT
1 16 6 45 80 0 4 0 -2 0 0 0 0 -2 1-4cyli.dat
0 BFC INVERTNEXT
1 16 6 51 80 0 4 0 2 0 0 0 0 -2 1-4cyli.dat
1 16 13 45 80 0 2 0 -2 0 0 0 0 -2 1-4cyli.dat
1 16 13 51 80 0 2 0 2 0 0 0 0 -2 1-4cyli.dat
