File Detail parts/s/32087s01.dat

Official File parts/s/32087s01.dat

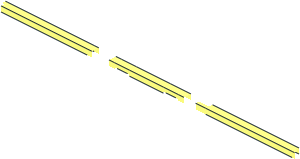

~Train Track 9V Crossing - Metal Rail Parts

File Header:

0 ~Train Track  9V Crossing - Metal Rail Parts
0 Name: s\32087s01.dat
0 Author: Ludo Soete [ludo]
0 !LDRAW_ORG Subpart UPDATE 2020-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2002-11-30 [PTadmin] Official Update 2002-05
0 !HISTORY 2007-08-31 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2007-08-31 [PTadmin] Replaced box3#8p references with box3u8p
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2013-04-23 [MagFors] Modified with WINDZ for BFC compliance
0 !HISTORY 2013-05-18 [MMR1988] Removed t-junctions, Removed 3 of 4 Rails
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03

Show contents

0 // Center Rail

1 16 -35.125 -14.125 48.5 2.875 0 0 0 -1.875 0 0 0 -1.75 box2-11.dat
1 16 -35.125 -14.125 52 2.875 0 0 0 -1.875 0 0 0 1.75 box2-11.dat
1 16 -24.75 -14.125 48.5 7.5 0 0 0 -1.875 0 0 0 -1.75 box2-11.dat
1 16 -24.75 -14.125 52 7.5 0 0 0 -1.875 0 0 0 1.75 box2-11.dat
1 16 0 -14.125 48.5 17.25 0 0 0 -1.875 0 0 0 -1.75 box2-11.dat
1 16 0 -14.125 52 17.25 0 0 0 -1.875 0 0 0 1.75 box2-11.dat
1 16 24.75 -14.125 48.5 7.5 0 0 0 -1.875 0 0 0 -1.75 box2-11.dat
1 16 24.75 -14.125 52 7.5 0 0 0 -1.875 0 0 0 1.75 box2-11.dat
1 16 35.125 -14.125 48.5 2.875 0 0 0 -1.875 0 0 0 -1.75 box2-11.dat
1 16 35.125 -14.125 52 2.875 0 0 0 -1.875 0 0 0 1.75 box2-11.dat
4 16 -38 -11 46.75 -32.25 -11 46.75 -32.25 -12.25 46.75 -38 -12.25 46.75
4 16 -38 -12.25 53.75 -32.25 -12.25 53.75 -32.25 -11 53.75 -38 -11 53.75
1 16 0 -11.625 53.75 0 0 17.25 0.625 0 0 0 -1 0 rect1.dat
1 16 0 -11.625 46.75 0 0 17.25 0.625 0 0 0 1 0 rect1.dat
4 16 38 -12.25 46.75 32.25 -12.25 46.75 32.25 -11 46.75 38 -11 46.75
4 16 38 -11 53.75 32.25 -11 53.75 32.25 -12.25 53.75 38 -12.25 53.75

1 16 -24.75 -12.25 52.5 -5 0 0 0 -1 0 0 0 -1.25 rect.dat
1 16 -24.75 -12.25 48 -5 0 0 0 -1 0 0 0 -1.25 rect.dat
1 16 24.75 -12.25 52.5 -5 0 0 0 -1 0 0 0 -1.25 rect.dat
1 16 24.75 -12.25 48 -5 0 0 0 -1 0 0 0 -1.25 rect.dat

0 // Rail-Down - 1/2

1 16 54.875 -14.125 48.5 5.125 0 0 0 -1.875 0 0 0 -1.75 box2-11.dat
1 16 103.75 -14.125 48.5 43.75 0 0 0 -1.875 0 0 0 -1.75 box2-11.dat
1 16 103.75 -14.125 52 43.75 0 0 0 -1.875 0 0 0 1.75 box2-11.dat
1 16 148.75 -14.125 48.5 1.25 0 0 0 -1.875 0 0 0 -1.75 box2-11.dat
4 16 60 -12.25 46.75 49.75 -12.25 46.75 49.75 -11 46.75 60 -11 46.75
1 16 103.75 -11.625 53.75 0 0 43.75 0.625 0 0 0 -1 0 rect1.dat
1 16 103.75 -11.625 46.75 0 0 43.75 0.625 0 0 0 1 0 rect1.dat
4 16 150 -12.25 46.75 147.5 -12.25 46.75 147.5 -11 46.75 150 -11 46.75

1 16 125 -11 52.5 -5 0 0 0 -1 0 0 0 -1.25 rect3.dat
1 16 125 -11 48 -5 0 0 0 -1 0 0 0 1.25 rect3.dat
1 16 67.5 -11 52.5 -5 0 0 0 -1 0 0 0 -1.25 rect3.dat
1 16 67.5 -11 48 -5 0 0 0 -1 0 0 0 1.25 rect3.dat

0 // Rail-Up - 2/2
1 16 -148.75 -13.55 52 1.25 0 0 0 -2.5 0 0 0 1.75 box2-11.dat
1 16 -103.75 -13.55 52 -43.75 0 0 0 -2.5 0 0 0 1.75 box2-11.dat
1 16 -103.75 -13.55 48.5 -43.75 0 0 0 -2.5 0 0 0 -1.75 box2-11.dat
1 16 -57.675 -13.55 52 -2.375 0 0 0 -2.5 0 0 0 1.75 box2-11.dat
1 16 -57.675 -13.55 48.5 -2.375 0 0 0 -2.5 0 0 0 -1.75 box2-11.dat
2 24 -147.5 -11 53.75 -60 -11 53.75
2 24 -60 -11 46.75 -147.5 -11 46.75

1 16 -125 -11 48 5 0 0 0 -1 0 0 0 1.25 rect3.dat
1 16 -125 -11 52.5 5 0 0 0 -1 0 0 0 -1.25 rect3.dat
1 16 -67.5 -11 48 5 0 0 0 -1 0 0 0 1.25 rect3.dat
1 16 -67.5 -11 52.5 5 0 0 0 -1 0 0 0 -1.25 rect3.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

None

Creative Commons Attribution License information

This part is copyright © Ludo Soete
Licensed under CC BY 4.0
