File Header:

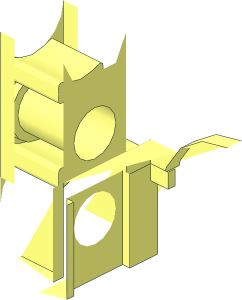

0 ~Electric Technic Motor 4.5V 6 x 17 x 5 - Main Half Base Type 1
0 Name: s\32289as01.dat
0 Author: Guy Vivan [guyvivan]
0 !LDRAW_ORG Subpart UPDATE 2023-06
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2012-11-03 [mikeheide] Moved origin
0 !HISTORY 2019-06-23 [kuramapika1] Refactored part
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
0 !HISTORY 2023-07-19 [MagFors] Adapted to rounded npeg corners
0 !HISTORY 2023-11-19 [OrionP] Official Update 2023-06
Show contents
3 16 -34 92 31 -22 92 31 -22 70 31
1 16 -38 59 31 -2 0 0 0 0 17 0 1 0 rect1.dat
3 16 -22 70 49 -22 88.4 49 -34 88.4 49
1 16 -38 59 49 -2 0 0 0 0 -17 0 -1 0 rect1.dat
1 16 0 82 56 0 0 -19 -19 0 0 0 1 0 1-8chrd.dat
1 16 0 82 56 0 0 -19 -19 0 0 0 4 0 3-16cylo.dat
1 16 0 82 60 0 0 -19 -19 0 0 0 -1 0 3-16chrd.dat
4 16 -17.5541 74.7287 60 -17.8069 76 60 -17.8069 76 56 -17.5541 74.7287 56
5 24 -17.5541 74.7287 60 -17.5541 74.7287 56 -14.3939 70 56 -17.8069 76 60
4 16 -22 76 56 -22 76 60 -40 76 60 -36 76 56
1 16 -19.90345 76 58 0 0 2.09655 0 1 0 -2 0 0 rect3.dat
4 16 -20 96 48 -22 96 48 -26 96 60 -20 96 56
2 24 -20 96 48 -20 96 56
3 16 -26 88 60 -22 76 60 -17.8069 76 60
4 16 -22 76 56 -22 88.4 49 -22 70 49 -22 70 56
3 16 -22 88.4 49 -22 76 56 -22 85.6 56
4 16 -22 76 56 -22 70 56 -14.3939 70 56 -17.5541 74.7287 56
3 16 -17.5541 74.7287 56 -17.8069 76 56 -22 76 56
4 16 -20 78 54 -20 74 54 -20 74 48 -20 96 48
4 16 -20 78 54 -20 96 48 -20 96 56 -20 78 56
1 16 -40 52 40 0 14 0 0 0 -1 1 0 0 npeghol2.dat
1 16 -40 72 40 0 14 0 0 0 -1 1 0 0 npeghol2.dat
1 16 -22 62 40 0 1 0 0 0 -6 6 0 0 4-4edge.dat
1 16 -22 82 40 0 -1 0 0 0 6 6 0 0 4-4ndis.dat
1 16 -22 62 40 0 -1 0 0 0 6 6 0 0 4-4ndis.dat
1 16 -40 62 40 0 1 0 0 0 -1 1 0 0 peghole.dat
0 BFC INVERTNEXT
1 16 -38 62 40 0 16 0 0 0 6 6 0 0 4-4cyli.dat
1 16 -40 62 40 0 1 0 0 0 1 1 0 0 4-4ring8.dat
4 16 -22 88 40 -22 88 34 -22 96 32 -22 96 48
3 16 -22 88 40 -22 96 48 -22 88 46
4 16 -22 68 46 -22 68 40 -22 70 31 -22 70 49
3 16 -22 70 31 -22 68 40 -22 68 34
4 16 -22 74 48 -22 74 32 -22 76 40 -22 76 46
4 16 -34 92 31 -34 92 30 -22 92 28 -22 92 31
2 24 -34 92 31 -22 92 31
3 16 -22 70 56 -22 70 49 -14.3939 70 56
3 16 -22 70 31 -14.3939 70 56 -22 70 49
1 16 -22 81 29.5 0 1 0 0 0 11 1.5 0 0 rect2a.dat
3 16 -22 96 48 -26 96 32.6088 -26 96 60
4 16 -22 96 48 -22 96 32 -26 96 28 -26 96 32.6088
4 16 -22 96 32 -20 96 32 -20 96 30 -26 96 28
3 16 -22 74 32 -22 76 34 -22 76 40
4 16 -22 96 48 -22 74 48 -22 76 46 -22 82 46
3 16 -22 88 46 -22 96 48 -22 82 46
4 16 -22 70 49 -22 42 49 -22 56 46 -22 62 46
3 16 -22 48 46 -22 56 46 -22 42 49
3 16 -22 62 46 -22 68 46 -22 70 49
4 16 -22 56 46 -22 48 46 -22 48 40 -22 56 40
4 16 -22 56 34 -22 56 40 -22 48 40 -22 48 34
3 16 -22 56 34 -22 48 34 -22 42 31
4 16 -22 62 34 -22 56 34 -22 42 31 -22 70 31
3 16 -22 70 31 -22 68 34 -22 62 34
4 16 -22 88 34 -22 82 34 -22 74 32 -22 96 32
3 16 -22 76 34 -22 74 32 -22 82 34
1 16 -21 85 48 -1 0 0 0 0 11 0 1 0 rect3.dat
1 16 -21 85 31 0 1 0 11 0 0 0 0 1 box2-7.dat
1 16 -17.5 76 55 2.5 0 0 0 2 0 0 0 -1 box3-3.dat
2 24 -17.5541 74.7287 60 -17.8069 76 60
2 24 -17.5541 74.7287 56 -17.8069 76 56
2 24 -40 76 60 -22 76 60
2 24 -36 76 56 -22 76 56
2 24 -22 88.4 49 -22 85.6 56
2 24 -22 76 56 -22 70 56
2 24 -22 85.6 56 -22 76 56
2 24 -20 74 48 -20 74 54
2 24 -20 78 56 -20 96 56
2 24 -22 88.4 49 -22 70 49
2 24 -22 96 32 -22 96 48
2 24 -22 96 32 -22 74 32
2 24 -20 96 30 -20 74 30
Status:
Official
This part has the following warnings
-
Decimal precision exceeds library recommendationLine 25: 1 16 -19.90345 76 58 0 0 2.09655 0 1 0 -2 0 0 rect3.dat
