File Detail parts/s/3241s06.dat

Official File parts/s/3241s06.dat

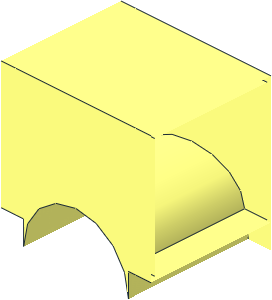

~Train Track 12V Insert: Plug Socket Metal Portion

File Header:

0 ~Train Track 12V Insert: Plug Socket Metal Portion
0 Name: s\3241s06.dat
0 Author: Steffen [Steffen]
0 !LDRAW_ORG Subpart UPDATE 2012-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CW

0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01

Show contents

1 16 0 9.5 16 -3.5 0 0 0 0 -3.5 0 -1 0 2-4ndis.dat
4 16 3.5 0 8 3.5 6 8 -3.5 6 8 -3.5 0 8
4 16 3.5 0 16 3.5 9.5 16 5 9.5 16 5 0 16
4 16 4 0 8 4 8 8 3.5 8 8 3.5 0 8
1 16 0 9.5 8 -3.5 0 0 0 0 -3.5 0 1 0 2-4ndis.dat
4 16 -3.5 0 16 -3.5 6 16 3.5 6 16 3.5 0 16
4 16 -3.5 0 8 -3.5 8 8 -4 8 8 -4 0 8
1 16 0 9.5 8 3.5 0 0 0 0 -3.5 0 -1 0 2-4edge.dat
4 16 -5 0 16 -5 9.5 16 -3.5 9.5 16 -3.5 0 16
2 24 -4 0 16 4 0 16
4 16 3.5 8 8 5 8 8 5 8 16 3.5 8 16
4 16 5 7.75 8.25 3.5 7.75 8.25 3.5 7.75 15.75 5 7.75 15.75
4 16 -5 7.75 15.75 -3.5 7.75 15.75 -3.5 7.75 8.25 -5 7.75 8.25
4 16 3.5 8 16 3.5 9.5 16 3.5 9.5 8 3.5 8 8
2 24 4 0 8 5 0 8
2 24 5 0 16 4 0 16
2 24 4 8 8 5 8 8
4 16 4 0 16 5 0 16 5 0 8 4 0 8
4 16 5 0 8 5 8 8 4 8 8 4 0 8
4 16 4 0 16 4 8 16 5 8 16 5 0 16
4 16 -5 8 8 -3.5 8 8 -3.5 8 16 -5 8 16
4 16 -3.5 9.5 16 -3.5 8 16 -3.5 8 8 -3.5 9.5 8
2 24 -3.5 8 8 -3.5 8 16
2 24 3.5 8 8 3.5 8 16
2 24 -4 0 8 4 0 8
2 24 -5 0 8 -4 0 8
2 24 -4 0 16 -5 0 16
2 24 -5 8 8 -4 8 8
4 16 -5 0 16 -4 0 16 -4 0 8 -5 0 8
4 16 -4 0 8 -4 8 8 -5 8 8 -5 0 8
4 16 -5 0 16 -5 8 16 -4 8 16 -4 0 16
0 BFC INVERTNEXT
1 16 0 9.5 16 3.5 0 0 0 0 -3.5 0 -8 0 2-4cyli.dat
1 16 0 7.75 15.75 3.5 0 0 0 0 -2.25 0 -7.5 0 2-4cyli.dat
1 16 0 7.75 15.75 3.5 0 0 0 0 -2.25 0 1 0 2-4ndis.dat
1 16 0 7.75 15.75 3.5 0 0 0 0 -2.25 0 1 0 2-4edge.dat
1 16 0 7.75 8.25 -3.5 0 0 0 0 -2.25 0 -1 0 2-4ndis.dat
1 16 0 7.75 8.25 -3.5 0 0 0 0 -2.25 0 -1 0 2-4edge.dat
4 16 -5 0 8 -5 0 16 5 0 16 5 0 8
4 16 -5 0.25 15.75 -5 0.25 8.25 5 0.25 8.25 5 0.25 15.75
4 16 -5 0.25 8.25 -3.5 5.5 8.25 3.5 5.5 8.25 5 0.25 8.25
4 16 -5 7.75 8.25 -3.5 7.75 8.25 -3.5 5.5 8.25 -5 0.25 8.25
4 16 5 0.25 8.25 3.5 5.5 8.25 3.5 7.75 8.25 5 7.75 8.25
4 16 5 0.25 15.75 3.5 5.5 15.75 -3.5 5.5 15.75 -5 0.25 15.75
4 16 -5 0.25 15.75 -3.5 5.5 15.75 -3.5 7.75 15.75 -5 7.75 15.75
4 16 5 7.75 15.75 3.5 7.75 15.75 3.5 5.5 15.75 5 0.25 15.75
1 16 0 9.5 16 3.5 0 0 0 0 -3.5 0 -1 0 2-4edge.dat
2 24 3.5 7.75 15.75 3.5 7.75 8.25
2 24 -3.5 7.75 15.75 -3.5 7.75 8.25
2 24 -3.5 7.75 15.75 -5 7.75 15.75
2 24 -3.5 7.75 8.25 -5 7.75 8.25
2 24 5 7.75 15.75 3.5 7.75 15.75
2 24 5 7.75 8.25 3.5 7.75 8.25
2 24 5 0.25 8.25 -5 0.25 8.25
2 24 5 0.25 15.75 -5 0.25 15.75
2 24 3.5 8 8 3.5 9.5 8
2 24 -3.5 8 8 -3.5 9.5 8
2 24 -3.5 8 8 -4 8 8
2 24 3.5 8 8 4 8 8

Status:

Official

This part has the following errors

All parts must be BFC CERTIFY CCW

Unofficial parents

Part Events:

Archived Part Events:

None
