Official File parts/s/33213s01.dat
File Header:

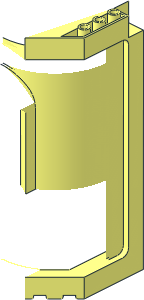

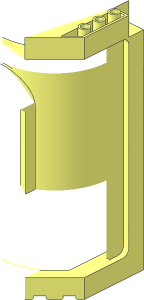

0 ~Panel 6 x 8 x 12 Tower with Arched Window - Half
0 Name: s\33213s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2020-09-05 [PTadmin] Official Update 2020-02
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
0 // Bottom
1 16 70 268 20 0 0 -1 0 -5 0 1 0 0 stug3-1x3.dat
4 16 76 288 56 80 288 60 80 288 -20 76 288 -16
4 16 64 288 56 64 288 -16 60 288 -20 60 288 60
4 16 64 288 56 60 288 60 80 288 60 76 288 56
4 16 64 288 -16 76 288 -16 76 288 -18.3431 64 288 -18.3431
3 16 64 288 -16 64 288 -18.3431 60 288 -20
3 16 76 288 -18.3431 76 288 -16 80 288 -20
3 16 64 288 -18.3431 64 288 -21.6569 60 288 -20
4 16 55.6568 288 -24.3432 60 288 -20 64 288 -21.6569 58.4852 288 -27.1716
4 16 44.3431 288 -35.6569 47.1715 288 -38.4853 41.6569 288 -44 40 288 -40
4 16 72.8284 288 -21.5148 76 288 -18.3431 80 288 -20 75.6568 288 -24.3432
4 16 52.8284 288 -41.5148 61.5147 288 -32.8285 64.3431 288 -35.6569 55.6568 288 -44.3432
4 16 38.3431 288 -56 41.5148 288 -52.8284 44.3432 288 -55.6568 40 288 -60
4 16 38.3431 288 -56 36 288 -56 36 288 -44 38.3431 288 -44
3 16 38.3431 288 -44 36 288 -44 40 288 -40
3 16 36 288 -56 38.3431 288 -56 40 288 -60
3 16 41.6569 288 -44 38.3431 288 -44 40 288 -40
2 24 60 288 -20 55.6568 288 -24.3432
2 24 64 288 -21.6569 58.4852 288 -27.1716
2 24 44.3431 288 -35.6569 40 288 -40
2 24 47.1715 288 -38.4853 41.6569 288 -44
2 24 76 288 -18.3431 72.8284 288 -21.5148
2 24 75.6568 288 -24.3432 80 288 -20
2 24 55.6568 288 -44.3432 64.3431 288 -35.6569
2 24 40 288 -60 44.3432 288 -55.6568
2 24 52.8284 288 -41.5148 61.5147 288 -32.8285
2 24 38.3431 288 -56 41.5148 288 -52.8284
2 24 80 288 -20 80 288 60
2 24 80 288 60 60 288 60
1 16 47.1715 286 -38.4853 0 -2.828427 1.414214 2 0 0 0 2.828427 1.414214 8\1-4cylo.dat
1 16 47.1715 286 -38.4853 0 -1 1.414214 2 0 0 0 0 1.414214 8\1-4chrd.dat
1 16 44.3431 286 -35.6569 0 1 1.414214 2 0 0 0 0 1.414214 8\1-4chrd.dat
1 16 58.4852 286 -27.1716 -1.414214 -2.828428 0 0 0 2 -1.414214 2.828428 0 8\1-4cylo.dat
1 16 58.4852 286 -27.1716 -1.414214 -1 0 0 0 2 -1.414214 0 0 8\1-4chrd.dat
1 16 55.6568 286 -24.3432 -1.414214 1 0 0 0 2 -1.414214 0 0 8\1-4chrd.dat
1 16 41.5148 286 -52.8284 1.414214 2.828427 0 0 0 2 1.414214 -2.828427 0 8\1-4cylo.dat
1 16 41.5148 286 -52.8284 1.414214 1 0 0 0 2 1.414214 0 0 8\1-4chrd.dat
1 16 44.3432 286 -55.6568 1.414214 -1 0 0 0 2 1.414214 0 0 8\1-4chrd.dat
1 16 55.6568 286 -44.3432 -1.414214 -2.828427 0 0 0 2 -1.414214 2.828427 0 8\1-4cylo.dat
1 16 55.6568 286 -44.3432 -1.414214 -1 0 0 0 2 -1.414214 0 0 8\1-4chrd.dat
1 16 52.8284 286 -41.5148 -1.414214 1 0 0 0 2 -1.414214 0 0 8\1-4chrd.dat
1 16 61.5147 286 -32.8285 1.414214 2.828427 0 0 0 2 1.414214 -2.828427 0 8\1-4cylo.dat
1 16 61.5147 286 -32.8285 1.414214 1 0 0 0 2 1.414214 0 0 8\1-4chrd.dat
1 16 64.3431 286 -35.6569 1.414214 -1 0 0 0 2 1.414214 0 0 8\1-4chrd.dat
1 16 75.6568 286 -24.3432 -1.414214 -2.828427 0 0 0 2 -1.414214 2.828427 0 8\1-4cylo.dat
1 16 75.6568 286 -24.3432 -1.414214 -1 0 0 0 2 -1.414214 0 0 8\1-4chrd.dat
1 16 72.8284 286 -21.5148 -1.414214 1 0 0 0 2 -1.414214 0 0 8\1-4chrd.dat
0 BFC INVERTNEXT
1 16 70 288 20 0 0 -6 0 -20 0 36 0 0 box5.dat
0 BFC INVERTNEXT
1 16 70 278 -20 0 -6 0 10 0 0 0 0 1.6569 box2-5.dat
0 BFC INVERTNEXT
1 16 48.5858 286 -48.5858 -1.414214 0 4.242641 0 -2 0 1.414214 0 4.242641 box3u4a.dat
0 BFC INVERTNEXT
1 16 51.4142 286 -31.4142 -1.414214 0 4.242641 0 -2 0 1.414214 0 4.242641 box3u4a.dat
0 BFC INVERTNEXT
1 16 68.5858 286 -28.5858 -1.414214 0 4.242641 0 -2 0 1.414214 0 4.242641 box3u4a.dat
4 16 57.071 284 -28.5858 57.071 286 -28.5858 58.4852 288 -27.1716 64 288 -21.6569
4 16 41.6569 288 -44 47.1715 288 -38.4853 48.5857 286 -37.0711 48.5858 284 -37.0711
3 16 41.6569 268 -44 41.6569 288 -44 48.5858 284 -37.0711
3 16 57.071 284 -28.5858 64 288 -21.6569 64 268 -21.6569
4 16 64 268 -21.6569 41.6569 268 -44 48.5858 284 -37.0711 57.071 284 -28.5858
4 16 42.9289 286 -51.4142 41.5148 288 -52.8284 38.3431 288 -56 42.9289 284 -51.4142
4 16 61.5147 288 -32.8285 52.828373 288 -41.514773 51.4142 286 -42.929 62.9289 286 -31.4143
4 16 62.928945 284 -31.414227 62.9289 286 -31.4143 51.4142 286 -42.929 51.4142 284 -42.9289
4 16 62.928945 284 -31.414227 51.4142 284 -42.9289 38.3431 268 -56 76 268 -18.3431
4 16 76 288 -18.3431 72.828373 288 -21.514773 71.4142 286 -22.929 71.4142 284 -22.929
3 16 76 288 -18.3431 71.4142 284 -22.929 76 268 -18.3431
3 16 71.4142 284 -22.929 62.9289 284 -31.4142 76 268 -18.3431
3 16 38.3431 288 -56 38.3431 268 -56 42.9289 284 -51.4142
3 16 42.9289 284 -51.4142 38.3431 268 -56 51.4142 284 -42.9289
0 BFC INVERTNEXT
1 16 40 278 -50 0 0 -1.6569 10 0 0 0 6 0 box2-5.dat
3 16 38.3431 268 -56 38.3431 268 -44 41.6569 268 -44
4 16 38.3431 268 -56 41.6569 268 -44 64 268 -21.6569 76 268 -18.3431
3 16 64 268 -21.6569 64 268 -18.3431 76 268 -18.3431
2 24 76 268 -18.3431 38.3431 268 -56
2 24 41.6569 268 -44 64 268 -21.6569
0 // Bottom Inside
4 16 60 288 60 60 264 60 76 264 60 80 288 60
4 16 60 288 -20 55.656772 288 -24.343172 54.242558 286 -25.757386 54.242627 284 -25.757345
4 16 45.757345 284 -34.242627 45.757287 286 -34.242659 44.343073 288 -35.656873 40 288 -40
4 16 54.242627 284 -25.757345 45.757345 284 -34.242627 40 264 -40 60 264 -20
3 16 54.242627 284 -25.757345 60 264 -20 60 288 -20
3 16 45.757345 284 -34.242627 40 288 -40 40 264 -40
1 16 60 276 20 0 1 0 -12 0 0 0 0 40 rect.dat
2 24 40 264 -40 60 264 -20
2 24 60 264 60 76 264 60
0 // Bottom Outside
4 16 80 288 60 80 264 40 80 264 32 80 288 -20
3 16 80 264 -20 80 288 -20 80 264 32
2 24 80 288 -20 80 264 -20
4 16 74.242655 284 -25.757373 74.2426 286 -25.7574 75.6568 288 -24.3432 80 288 -20
3 16 80 264 -20 74.2427 284 -25.7574 80 288 -20
3 16 74.242655 284 -25.757373 80 264 -20 65.7574 284 -34.2427
3 16 40 264 -60 45.7574 284 -54.2427 54.2427 284 -45.7574
3 16 45.7574 284 -54.2427 40 264 -60 40 288 -60
4 16 40 288 -60 44.3432 288 -55.6568 45.7574 286 -54.2427 45.7574 284 -54.2427
4 16 54.2427 284 -45.7574 54.2426 286 -45.7574 65.757314 286 -34.242686 65.7574 284 -34.2427
4 16 64.3431 288 -35.6569 65.757314 286 -34.242686 54.2426 286 -45.7574 55.6568 288 -44.3432
4 16 54.2427 284 -45.7574 65.7574 284 -34.2427 80 264 -20 40 264 -60
4 16 60 264 60 70 264 44 76 264 44 76 264 60
4 16 70 264 20 70 264 44 60 264 60 60 264 -20
4 16 60 264 -20 40 264 -40 40 264 -60 80 264 -20
4 16 80 264 32 73 264 32 73 264 20 80 264 -20
4 16 73 264 20 70 264 20 60 264 -20 80 264 -20
2 24 80 264 -20 80 264 32
2 24 40 264 -60 80 264 -20
3 16 60 264 -20 57.1248 264 -23.8336 62.352 264 -16
3 16 43.8336 264 -37.1248 40 264 -40 36 264 -42.352
0 // Side Walls
0 BFC INVERTNEXT
1 16 73 146 52 0 3 0 118 0 0 0 0 -8 box2-5.dat
3 16 70 28 20 70 28 44 70 48 20
3 16 70 48 20 70 28 44 70 80.16 20
4 16 70 80.16 20 70 28 44 70 264 44 70 175 20
3 16 70 175 20 70 264 44 70 264 20
2 24 70 28 44 70 28 20
2 24 70 264 20 70 264 44
4 16 80 288 60 76 264 60 76 28 60 80 24 60
4 16 80 32 40 80 256 40 80 288 60 80 24 60
3 16 80 24 40 80 32 40 80 24 60
3 16 80 288 60 80 256 40 80 264 40
2 24 80 24 60 80 288 60
0 BFC INVERTNEXT
1 16 73 256 32 0 7 0 0 0 8 8 0 0 1-4cylo.dat
1 16 80 256 32 0 -1 0 0 0 8 8 0 0 1-4ndis.dat
1 16 73 256 32 0 -1 0 0 0 8 8 0 0 1-4chrd.dat
1 16 76.5 144 40 0 0 -3.5 -112 0 0 0 1 0 rect2p.dat
4 16 73 24 32 73 24 20 73 48 20 73 32 40
3 16 73 32 40 73 48 20 73 80.16 20
4 16 73 80.16 20 73 175 20 73 256 40 73 32 40
4 16 73 175 20 73 264 20 73 264 32 73 256 40
2 24 73 264 20 73 264 32
2 24 73 24 20 73 24 32
0 BFC INVERTNEXT
1 16 73 32 32 0 7 0 0 0 -8 8 0 0 1-4cylo.dat
1 16 80 32 32 0 -1 0 0 0 -8 8 0 0 1-4ndis.dat
1 16 73 32 32 0 -1 0 0 0 -8 8 0 0 1-4chrd.dat
0 // Top
4 16 73 24 20 73 24 32 80 24 32 80 24 -20
3 16 57.9182 24 -24.4424 73 24 20 80 24 -20
4 16 40 24 -60 27.9371 24 -47.4447 57.9182 24 -24.4424 80 24 -20
3 16 27.9371 24 -47.4447 40 24 -60 0 24 -53
1 16 0 28 20 70 0 0 0 -1 0 0 0 -70 48\1-12chrd.dat
1 16 0 28 20 70 0 0 0 -1 0 0 0 -70 48\1-12edge.dat
4 16 56 28 60 76 28 60 76 28 44 70 28 44
3 16 56 28 60 60.62 28 -15 56 28 -21.92364
4 16 56 28 60 70 28 44 70 28 20 60.62 28 -15
2 24 60.62 28 -15 56 28 -21.92364
2 24 56 28 60 56 28 -21.92364
2 24 56 28 60 76 28 60
4 16 80 24 60 76 28 60 56 28 60 60 24 60
4 16 60 24 60 56 28 60 56 4 60 60 0 60
4 16 56 4 60 56 28 60 56 28 -21.92364 56 20 -21.92364
4 16 56 4 60 56 20 -21.9236 56 20 -38.3432 56 4 -38.3431
2 24 56 4 60 56 28 60
0 BFC INVERTNEXT
1 16 70 12 50 -10 0 0 0 12 0 0 0 -10 box3-3.dat
4 16 80 0 40 80 0 -20 80 24 -20 80 24 32
3 16 80 24 40 80 0 40 80 24 32
2 24 80 0 -20 80 0 40
2 24 80 24 32 80 24 -20
1 16 60 12 -40 0 -1 -20 -12 0 0 0 0 -20 rect.dat
2 24 56 28 -21.92364 56 20 -21.92364
2 24 56 20 -38.34315 56 20 -21.92364
3 16 55.538 20 -22.616 49.497 20 -29.497 56 20 -38.34315
3 16 49.497 20 -29.497 42.616 20 -35.538 56 20 -38.34315
3 16 56 20 -38.34315 56 20 -21.92364 55.538 20 -22.616
4 16 56 20 -38.3432 42.616 20 -35.538 35 20 -40.62 38.3431 20 -56
3 16 35 20 -40.62 26.789 20 -44.673 38.3431 20 -56
3 16 38.3431 20 -56 26.789 20 -44.673 18.116 20 -47.613
3 16 38.3431 20 -56 18.116 20 -47.613 9.135 20 -49.398
3 16 38.3431 20 -56 9.135 20 -49.398 0 20 -50
1 16 47.17155 12 -47.17155 8.82845 1 0 0 0 8 8.82845 0 0 rect.dat
4 16 77.5 0 37.5 77.5 0 -18.96447 80 0 -20 80 0 40
4 16 77.5 0 37.5 80 0 40 60 0 40 62.5 0 37.5
4 16 77.5 0 -18.96447 62.5 0 -33.9645 40 0 -60 80 0 -20
4 16 40 0 -60 62.5 0 -33.9645 62.5 0 37.5 60 0 40
0 BFC INVERTNEXT
1 16 70 10 9.26775 0 0 7.5 10 0 0 0 28.23225 0 box2-5.dat
1 16 70 10 -26.4645 0 1 -7.5 10 0 0 0 0 -7.5 rect3.dat
1 16 62.5 10 1.76775 0 -1 0 0 0 10 -35.73225 0 0 rect2p.dat
4 16 77.5 20 37.5 62.5 20 37.5 62.5 20 -33.9645 77.5 20 -18.9645
0 // Round Part
0 BFC INVERTNEXT
1 16 0 80.16 20 70 0 0 0 94.84 0 0 0 -70 48\1-6cyli.dat
0 BFC INVERTNEXT
1 16 0 48 20 70 0 0 0 32.16 0 0 0 -70 48\1-6cyli.dat
0 BFC INVERTNEXT
1 16 0 48 20 0 0 70 0 240 0 -70 0 0 48\1-12cyls.dat
0 BFC INVERTNEXT
1 16 0 20 20 0 0 70 0 8 0 -70 0 0 48\1-6cyli.dat
1 16 0 20 20 0 0 70 0 1 0 -70 0 0 48\1-6edge.dat
1 16 0 48 20 73 0 0 0 32.16 0 0 0 -73 48\1-6cyli.dat
1 16 0 80.16 20 73 0 0 0 94.84 0 0 0 -73 48\1-6cyli.dat
1 16 0 48 20 0 0 73 0 240 0 -73 0 0 48\1-12cyls.dat
4 16 30 168 -36 30 85 -36 37 85 -36 37 175 -36
1 16 37 130 -46 0 -1 0 0 0 45 -10 0 0 rect3.dat
1 16 30 126.5 -46 0 1 0 0 0 41.5 10 0 0 rect3.dat
4 16 37 85 -56 30 85 -56 30 168 -56 37 175 -56
1 16 0 264 20 0 0 2 0 -1 0 -2 0 0 48\1-4ring35.dat
2 24 35 175 -40.62 37 175 -39.284575
0 // Arch Intersection Line
2 24 4.8285 48.3182 -52.6818 0 48 -53
2 24 4.8285 48.3182 -52.6818 9.5265 49.251941 -52.3722
2 24 36.6818 80.1715 -43.096689 36.5 79.256796 -43.218
2 24 37 85 -42.88436 36.6818 80.1715 -43.096689
2 24 29.3558 62.4744 -46.744421 27.9371 60.85843 -47.4447
2 24 29.3558 62.4744 -46.744421 32.042 66.5 -45.418496
2 24 36.5 79.256796 -43.218 35.7383 75.4244 -43.59398
2 24 34.1843 70.8401 -44.361044 32.042 66.5 -45.418496
2 24 35.7383 75.4244 -43.59398 34.1843 70.8401 -44.361044
2 24 27.9371 60.85843 -47.4447 26.1627 58.8373 -48.046192
2 24 18.8924 53.21984 -50.5107 22.5256 55.6442 -49.279107
2 24 26.1627 58.8373 -48.046192 22.5256 55.6442 -49.279107
2 24 14.1599 50.8157 -51.451298 9.5756 49.2617 -52.362441
2 24 18.5 52.958 -50.588691 14.1599 50.8157 -51.451298
2 24 9.5756 49.2617 -52.362441 9.5265 49.251941 -52.3722
2 24 18.5 52.958 -50.588691 18.8924 53.21984 -50.5107
0 // Inside
2 24 0 48 -50 4.8285 48.3182 -49.6818
2 24 4.8285 48.3182 -49.6818 9.135 49.174129 -49.398
2 24 36.6818 80.1715 -39.497019 35.7383 75.4244 -40.12694
2 24 37 85 -39.284575 36.6818 80.1715 -39.497019
2 24 34.99846 73.241871 -40.620889 35.7383 75.4244 -40.12694
2 24 18.116 52.768455 -47.613 18.5 52.958 -47.482831
2 24 26.789 59.550687 -44.673 26.1627 58.8373 -44.885305
2 24 18.5 52.958 -47.482831 22.5256 55.6442 -46.11822
2 24 26.1627 58.8373 -44.885305 22.5256 55.6442 -46.11822
2 24 9.5756 49.2617 -49.310429 14.1599 50.8157 -48.399286
2 24 14.1599 50.8157 -48.399286 18.116 52.768455 -47.613
2 24 9.135 49.174129 -49.398 9.5756 49.2617 -49.310429
2 24 29.3558 62.4744 -43.406012 26.789 59.550687 -44.673
2 24 29.3558 62.4744 -43.406012 32.042 66.5 -42.080087
2 24 32.042 66.5 -42.080087 34.1843 70.8401 -41.022635
2 24 35 73.246415 -40.62 34.1843 70.8401 -41.022635
0 // Vertical
2 24 37 85 -42.88436 37 175 -42.88436
2 24 37 175 -39.284575 37 85 -39.284575
1 16 76 20 -10 -1 0 0 0 -19 0 0 0 1 boxjcyl4.dat
1 16 76.75 20 -10 -.75 0 0 0 -19 0 0 0 1 box3u5p.dat
1 16 76 20 10 -1 0 0 0 -19 0 0 0 1 boxjcyl4.dat
1 16 76.75 20 10 -.75 0 0 0 -19 0 0 0 1 box3u5p.dat
1 16 76 20 30 -1 0 0 0 -19 0 0 0 1 boxjcyl4.dat
1 16 76.75 20 30 -.75 0 0 0 -19 0 0 0 1 box3u5p.dat
1 16 64 20 -10 1 0 0 0 -19 0 0 0 1 boxjcyl4.dat
1 16 63.25 20 -10 .75 0 0 0 -19 0 0 0 1 box3u5p.dat
1 16 64 20 10 1 0 0 0 -19 0 0 0 1 boxjcyl4.dat
1 16 63.25 20 10 .75 0 0 0 -19 0 0 0 1 box3u5p.dat
1 16 64 20 30 1 0 0 0 -19 0 0 0 1 boxjcyl4.dat
1 16 63.25 20 30 .75 0 0 0 -19 0 0 0 1 box3u5p.dat
1 16 70 20 36 0 0 1 0 -19 0 -1 0 0 boxjcyl4.dat
1 16 70 20 36.75 0 0 1 0 -19 0 -.75 0 0 box3u5p.dat
1 16 70 20 10 0 0 -1 0 6 0 1 0 0 stud2a.dat
1 16 70 20 10 0 0 -4 0 1 0 4 0 0 4-4edge.dat
1 16 70 20 10 0 0 -6 0 1 0 6 0 0 4-4edge.dat
1 16 70 20 30 0 0 -1 0 6 0 1 0 0 stud2a.dat
1 16 70 20 30 0 0 -4 0 1 0 4 0 0 4-4edge.dat
1 16 70 20 30 0 0 -6 0 1 0 6 0 0 4-4edge.dat
1 16 70 20 -10 0 0 -1 0 6 0 1 0 0 stud2a.dat
1 16 70 20 -10 0 0 -4 0 1 0 4 0 0 4-4edge.dat
1 16 70 20 -10 0 0 -6 0 1 0 6 0 0 4-4edge.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Update ring primitives via script. Do not hold.
2024-03-23 00:56:36
2024-03-24 17:26:20
Release 2024-02
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
