Official File parts/s/39367s01.dat
File Header:

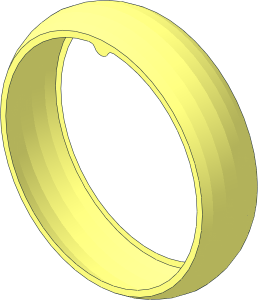

0 ~Tyre for Wheel 14 x 48 with 4 Spokes with Integral Tyre
0 Name: s\39367s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\39367s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\39367s02.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 1 s\39367s02.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 -1 s\39367s02.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\39367s02.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 -1 s\39367s02.dat
1 16 0 0 0 0 1 0 -1 0 0 0 0 1 s\39367s02.dat
1 16 0 0 0 0 1 0 -1 0 0 0 0 -1 s\39367s02.dat
1 16 0 0 17.5 64.10323 0 0 0 0 64.10323 0 1 0 48\4-4edge.dat
1 16 0 0 17.5 60.20983 0 7.92678 -7.92678 0 60.20983 0 1 0 48\3-4edge.dat
1 16 0 0 17.5 -7.92678 0 60.20983 -60.20983 0 -7.92678 0 -1 0 48\1-24chrd.dat
1 16 0 0 17.5 60.20983 0 -7.92678 -7.92678 0 -60.20983 0 1 0 48\5-24edge.dat
1 16 0 0 17.5 3.37385 0 0 0 0 3.37385 0 -1 0 48\4-4ring18.dat
1 16 0 -60.75 17.5 4.43462 0 -1.83688 1.83688 0 4.43462 0 1 0 3-8edge.dat
1 16 0 -60.75 17.5 4.43462 0 -1.83688 1.83688 0 4.43462 0 -1 0 3-8chrd.dat
2 24 -5.4942 -59.9558 17.5 -4.4346 -58.9131 17.5
2 24 -7.9252 -60.2071 17.5 -5.4942 -59.9558 17.5
2 24 5.4942 -59.9558 17.5 4.4346 -58.9131 17.5
2 24 7.9258 -60.2081 17.5 5.4942 -59.9558 17.5
4 16 -7.9252 -60.2071 17.5 7.9258 -60.2081 17.5 5.4942 -59.9558 17.5 -5.4942 -59.9558 17.5
4 16 -4.4346 -58.9131 17.5 -5.4942 -59.9558 17.5 5.4942 -59.9558 17.5 4.4346 -58.9131 17.5
1 16 0 0 -17.5 64.10323 0 0 0 0 64.10323 0 -1 0 48\4-4edge.dat
1 16 0 0 -17.5 60.20983 0 7.92678 -7.92678 0 60.20983 0 -1 0 48\3-4edge.dat
1 16 0 0 -17.5 -7.92678 0 60.20983 -60.20983 0 -7.92678 0 1 0 48\1-24chrd.dat
1 16 0 0 -17.5 60.20983 0 -7.92678 -7.92678 0 -60.20983 0 -1 0 48\5-24edge.dat
1 16 0 0 -17.5 3.37385 0 0 0 0 3.37385 0 1 0 48\4-4ring18.dat
1 16 0 -60.75 -17.5 4.43462 0 -1.83688 1.83688 0 4.43462 0 -1 0 3-8edge.dat
1 16 0 -60.75 -17.5 4.43462 0 -1.83688 1.83688 0 4.43462 0 1 0 3-8chrd.dat
2 24 -5.4942 -59.9558 -17.5 -4.4346 -58.9131 -17.5
2 24 -7.9252 -60.2071 -17.5 -5.4942 -59.9558 -17.5
2 24 5.4942 -59.9558 -17.5 4.4346 -58.9131 -17.5
2 24 7.9258 -60.2081 -17.5 5.4942 -59.9558 -17.5
4 16 5.4942 -59.9558 -17.5 7.9258 -60.2081 -17.5 -7.9252 -60.2071 -17.5 -5.4942 -59.9558 -17.5
4 16 5.4942 -59.9558 -17.5 -5.4942 -59.9558 -17.5 -4.4346 -58.9131 -17.5 4.4346 -58.9131 -17.5
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright ©
Philippe Hurbain
Licensed under
CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky
