Official File parts/s/39369s01.dat

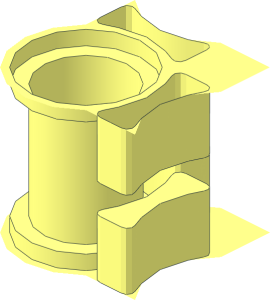

~Technic Beam 19 x 11 Baseplate Middle Hole
File Header:
0 ~Technic Beam 19 x 11 Baseplate Middle Hole 0 Name: s\39369s01.dat 0 Author: Philippe Hurbain [Philo] 0 !LDRAW_ORG Subpart UPDATE 2023-03 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2020-06-28 [PTadmin] Official Update 2020-01 0 !HISTORY 2022-07-08 [SwampKryakwa] Updated part to use new version of npeghol primitives 0 !HISTORY 2022-11-16 [Holly-Wood] Fixed T-junk 0 !HISTORY 2023-06-24 [OrionP] Official Update 2023-03
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 connhole.dat 1 16 0 -10 10 1 0 0 0 8 0 0 0 1 npeghole.dat 1 16 10 -10 0 0 0 1 0 8 0 -1 0 0 npeghole.dat 1 16 0 10 10 1 0 0 0 -8 0 0 0 1 npeghole.dat 1 16 10 10 0 0 0 1 0 -8 0 -1 0 0 npeghole.dat 3 16 6.3639 -10 8.46788 6.3639 -10 6.3639 8.46788 -10 6.3639 4 16 6.3639 -10 10 6.3639 -10 8.46788 8.46788 -10 6.3639 10 -10 6.3639 4 16 6.3639 -10 11.5321 6.3639 -10 10 10 -10 6.3639 11.5321 -10 6.3639 4 16 6.3639 -10 13.6361 6.3639 -10 11.5321 11.5321 -10 6.3639 13.63603 -10 6.36396 4 16 8.46788 -10 13.6361 6.3639 -10 13.6361 13.63603 -10 6.36396 13.6361 -10 8.46788 4 16 10 -10 13.6361 8.46788 -10 13.6361 13.6361 -10 8.46788 13.6361 -10 10 4 16 11.5321 -10 13.6361 10 -10 13.6361 13.6361 -10 10 13.6361 -10 11.5321 3 16 11.5321 -10 13.6361 13.6361 -10 11.5321 13.63603 -10 13.63604 3 16 6.3639 10 6.3639 6.3639 10 8.46788 8.46788 10 6.3639 4 16 8.46788 10 6.3639 6.3639 10 8.46788 6.3639 10 10 10 10 6.3639 4 16 10 10 6.3639 6.3639 10 10 6.3639 10 11.5321 11.5321 10 6.3639 4 16 11.5321 10 6.3639 6.3639 10 11.5321 6.3639 10 13.6361 13.63603 10 6.36396 4 16 13.63603 10 6.36396 6.3639 10 13.6361 8.46788 10 13.6361 13.6361 10 8.46788 4 16 13.6361 10 8.46788 8.46788 10 13.6361 10 10 13.6361 13.6361 10 10 4 16 13.6361 10 10 10 10 13.6361 11.5321 10 13.6361 13.6361 10 11.5321 3 16 13.6361 10 11.5321 11.5321 10 13.6361 13.63603 10 13.63604
Status:
Official Official
This part has the following warnings
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 16 6.3639 -10 8.46788 6.3639 -10 6.3639 8.46788 -10 6.3639
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 6.3639 -10 10 6.3639 -10 8.46788 8.46788 -10 6.3639 10 -10 6.3639
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 6.3639 -10 13.6361 6.3639 -10 11.5321 11.5321 -10 6.3639 13.63603 -10 6.36396
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 8.46788 -10 13.6361 6.3639 -10 13.6361 13.63603 -10 6.36396 13.6361 -10 8.46788
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 10 -10 13.6361 8.46788 -10 13.6361 13.6361 -10 8.46788 13.6361 -10 10
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 16 11.5321 -10 13.6361 13.6361 -10 11.5321 13.63603 -10 13.63604
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 16 6.3639 10 6.3639 6.3639 10 8.46788 8.46788 10 6.3639
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 8.46788 10 6.3639 6.3639 10 8.46788 6.3639 10 10 10 10 6.3639
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 11.5321 10 6.3639 6.3639 10 11.5321 6.3639 10 13.6361 13.63603 10 6.36396
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 13.63603 10 6.36396 6.3639 10 13.6361 8.46788 10 13.6361 13.6361 10 8.46788
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 13.6361 10 8.46788 8.46788 10 13.6361 10 10 13.6361 13.6361 10 10
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 16 13.6361 10 11.5321 11.5321 10 13.6361 13.63603 10 13.63604
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
