Official File parts/s/39793s01.dat
File Header:

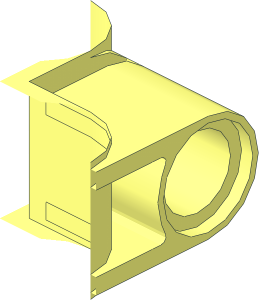

0 ~Technic Connector Block 3 x 3 with 9 Perpendicular Holes Quarter
0 Name: s\39793s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2023-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2020-06-28 [PTadmin] Official Update 2020-01
0 !HISTORY 2023-07-21 [MagFors] Adapted to rounded npeg corners
0 !HISTORY 2023-10-31 [OrionP] Official Update 2023-05
Show contents
