Official File parts/s/40242s01.dat

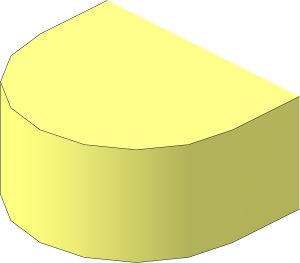

0 ~Door 1 x 8 x 6 Frame - Shutter Holder
0 Name: s\40242s01.dat
0 Author: Willy Tschager [Holly-Wood]
0 !LDRAW_ORG Subpart UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2007-08-25 {LEGO Universe Team} Original part shape
0 !HISTORY 2008-04-10 [Holly-Wood] File preparation for LDraw Parts Tracker
0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show file code
1 16 4.3 4.12 -3 -1.9 0 0 0 1 0 0 0 -1.9 4-4edge.dat
1 16 4.3 4.12 -3 -4.3 0 0 0 1 0 0 0 -4.3 2-4edge.dat
1 16 4.3 0 -3 -4.3 0 0 0 1 0 0 0 -4.3 2-4edge.dat
1 16 4.3 4.12 -3 -1.9 0 0 0 -1 0 0 0 -1.9 4-4ndis.dat
4 16 0 4.12 0 8.6 4.12 0 6.2 4.12 -1.1 2.4 4.12 -1.1
4 16 0 4.12 -3 0 4.12 0 2.4 4.12 -1.1 2.4 4.12 -4.9
4 16 0.327 4.12 -4.646 0 4.12 -3 2.4 4.12 -4.9 1.259 4.12 -6.041
4 16 2.4 4.12 -4.9 4.3 4.12 -7.3 2.654 4.12 -6.973 1.259 4.12 -6.041
3 16 4.3 4.12 -7.3 2.4 4.12 -4.9 6.2 4.12 -4.9
4 16 7.341 4.12 -6.041 5.946 4.12 -6.973 4.3 4.12 -7.3 6.2 4.12 -4.9
4 16 7.341 4.12 -6.041 6.2 4.12 -4.9 8.6 4.12 -3 8.273 4.12 -4.646
4 16 8.6 4.12 -3 6.2 4.12 -4.9 6.2 4.12 -1.1 8.6 4.12 0
0 BFC INVERTNEXT
1 16 4.3 4.12 -3 -1.9 0 0 0 -0.6 0 0 0 -1.9 4-8sphe.dat
1 16 4.3 4.12 -1.5 0 0 4.3 0 -4.12 0 1.5 0 0 box3u8p.dat
1 16 4.3 0 -3 -4.3 0 0 0 4.12 0 0 0 -4.3 2-4disc.dat
1 16 4.3 0 -3 -4.3 0 0 0 4.12 0 0 0 -4.3 2-4cyli.dat
0Status
Official
