Official File parts/s/42022s01.dat

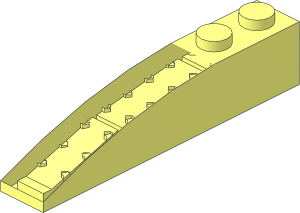

0 ~Slope Brick Curved 6 x 1 without Top Surface
0 Name: s\42022s01.dat
0 Author: Franklin W. Cain [fwcain]
0 !LDRAW_ORG Subpart UPDATE 2026-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2007-09-09 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2010-01-19 [Eldar] Add BFC
0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02
0 !HISTORY 2021-10-04 [Holly-Wood] Primitive substitution, added underside ribs
0 !HISTORY 2022-07-18 [PTadmin] Official Update 2022-04
0 !HISTORY 2022-07-18 [KnightOfTarenta] Adapted Curve to match 61678.dat
0 !HISTORY 2026-10-26 [OrionP] Official Update 2026-10Show file code:
0 // Top Studs
1 16 0 0 -10 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 0 0 10 0 0 1 0 1 0 -1 0 0 stud.dat
0 // Outer Surface
1 16 0 12 0 10 0 0 0 -12 0 0 0 20 box2-7.dat
1 16 0 22 -100 10 0 0 0 0 -2 0 1 0 rect.dat
1 16 -10 149.254 -20 0 1 0 -149.254 0 0 0 0 -159.993 48\1-12edge.dat
1 16 -10 149.254 -20 0 1 0 -149.254 0 0 0 0 -159.993 48\1-12chrd.dat
3 16 -10 24 20 -10 0 -20 -10 0 20
4 16 -10 24 20 -10 24 -100 -10 20 -100 -10 0 -20
1 16 10 149.254 -20 0 -1 0 -149.254 0 0 0 0 -159.993 48\1-12edge.dat
1 16 10 149.254 -20 0 -1 0 -149.254 0 0 0 0 -159.993 48\1-12chrd.dat
3 16 10 24 20 10 0 20 10 0 -20
4 16 10 0 -20 10 20 -100 10 24 -100 10 24 20
0 // Flat Bottom
4 16 10 24 20 6 24 16 -6 24 16 -10 24 20
4 16 -10 24 -100 -10 24 20 -6 24 16 -6 24 -96
4 16 10 24 20 10 24 -100 6 24 -96 6 24 16
4 16 -10 24 -100 -6 24 -96 6 24 -96 10 24 -100
2 24 -10 24 20 10 24 20
2 24 10 24 20 10 24 -100
2 24 -10 24 -100 -10 24 20
2 24 6 24 16 6 24 -96
2 24 -6 24 16 -6 24 -96
0 // Inner Structure
0 // Back Chamber
0 BFC INVERTNEXT
1 16 0 14 -1.5 6 0 0 0 -10 0 0 0 17.5 box2-5.dat
3 16 6 20 -61 6 24 -96 6 20 -92
3 16 6 20 -92 6 24 -96 6 20 -96
4 16 6 24 16 6 20 -19 6 4 -19 6 4 16
4 16 6 20 -19 6 24 16 6 24 -96 6 20 -61
3 16 -6 24 -96 -6 20 -61 -6 20 -92
3 16 -6 24 -96 -6 20 -92 -6 20 -96
4 16 -6 4 -19 -6 20 -19 -6 24 16 -6 4 16
4 16 -6 24 -96 -6 24 16 -6 20 -19 -6 20 -61
0 // Divider Back
4 16 -6 4 -19 6 4 -19 6 20 -19 -6 20 -19
4 16 -6 20 -19 6 20 -19 6 20 -21 -6 20 -21
4 16 -6 20 -21 6 20 -21 6 4 -21 -6 4 -21
2 24 -6 4 -19 -6 20 -19
2 24 6 4 -19 6 20 -19
2 24 -6 20 -19 -6 20 -21
2 24 6 20 -19 6 20 -21
2 24 -6 4 -21 -6 20 -21
2 24 6 4 -21 6 20 -21
2 24 -6 20 -19 6 20 -19
2 24 -6 4 -21 6 4 -21
2 24 -6 20 -21 6 20 -21
0 // Center Chamber
4 16 -6 10 -59 -6 20 -59 -6 20 -21 -6 4 -21
4 16 6 4 -21 6 20 -21 6 20 -59 6 10 -59
4 16 -6 4 -21 6 4 -21 6 10 -59 -6 10 -59
2 24 -6 4 -21 -6 10 -59
2 24 6 4 -21 6 10 -59
0 // Divider Front
4 16 -6 10 -59 6 10 -59 6 20 -59 -6 20 -59
4 16 -6 20 -59 6 20 -59 6 20 -61 -6 20 -61
4 16 -6 20 -61 6 20 -61 6 10 -61 -6 10 -61
2 24 -6 10 -59 -6 20 -59
2 24 6 10 -59 6 20 -59
2 24 -6 20 -59 -6 20 -61
2 24 6 20 -59 6 20 -61
2 24 -6 10 -61 -6 20 -61
2 24 6 10 -61 6 20 -61
2 24 -6 10 -59 6 10 -59
2 24 -6 20 -59 6 20 -59
2 24 -6 10 -61 6 10 -61
2 24 -6 20 -61 6 20 -61
0 // Front Chamber
3 16 -6 20 -92 -6 20 -61 -6 10 -61
3 16 6 10 -61 6 20 -61 6 20 -92
4 16 -6 10 -61 6 10 -61 6 20 -92 -6 20 -92
2 24 -6 10 -61 -6 20 -92
2 24 6 10 -61 6 20 -92
0 BFC INVERTNEXT
1 16 0 22 -94 6 0 0 0 0 -2 0 -2 0 box2-5.dat
0 // Ridges Back
1 16 6 23.9 5 0 0 -1 0 19.9 0 1 0 0 ridge.dat
1 16 6 23.9 -5 0 0 -1 0 19.9 0 1 0 0 ridge.dat
1 16 6 23.9 -15 0 0 -1 0 19.9 0 1 0 0 ridge.dat
1 16 -6 23.9 5 0 0 1 0 19.9 0 1 0 0 ridge.dat
1 16 -6 23.9 -5 0 0 1 0 19.9 0 1 0 0 ridge.dat
1 16 -6 23.9 -15 0 0 1 0 19.9 0 1 0 0 ridge.dat
0 // Ridges Center
1 16 6 4.8684 -25 0 0 -1 0 .4737 0 1 0 0 ridges.dat
1 16 6 23.9 -25 0 0 -1 0 19.0316 0 1 0 0 ridgea.dat
1 16 6 6.4474 -35 0 0 -1 0 .4737 0 1 0 0 ridges.dat
1 16 6 23.9 -35 0 0 -1 0 17.4526 0 1 0 0 ridgea.dat
1 16 6 8.0263 -45 0 0 -1 0 .4737 0 1 0 0 ridges.dat
1 16 6 23.9 -45 0 0 -1 0 15.8737 0 1 0 0 ridgea.dat
1 16 6 9.6053 -55 0 0 -1 0 .4737 0 1 0 0 ridges.dat
1 16 6 23.9 -55 0 0 -1 0 14.2947 0 1 0 0 ridgea.dat
1 16 -6 4.8684 -25 0 0 1 0 .4737 0 1 0 0 ridges.dat
1 16 -6 23.9 -25 0 0 1 0 19.0316 0 1 0 0 ridgea.dat
1 16 -6 6.4474 -35 0 0 1 0 .4737 0 1 0 0 ridges.dat
1 16 -6 23.9 -35 0 0 1 0 17.4526 0 1 0 0 ridgea.dat
1 16 -6 8.0263 -45 0 0 1 0 .4737 0 1 0 0 ridges.dat
1 16 -6 23.9 -45 0 0 1 0 15.8737 0 1 0 0 ridgea.dat
1 16 -6 9.6053 -55 0 0 1 0 .4737 0 1 0 0 ridges.dat
1 16 -6 23.9 -55 0 0 1 0 14.2947 0 1 0 0 ridgea.dat
0 // Ridges Front
1 16 6 11.7742 -65 0 0 -1 0 .9677 0 1 0 0 ridges.dat
1 16 6 23.9 -65 0 0 -1 0 12.1258 0 1 0 0 ridgea.dat
1 16 6 15 -75 0 0 -1 0 .9677 0 1 0 0 ridges.dat
1 16 6 23.9 -75 0 0 -1 0 8.9 0 1 0 0 ridgea.dat
1 16 6 18.2258 -85 0 0 -1 0 .9677 0 1 0 0 ridges.dat
1 16 6 23.9 -85 0 0 -1 0 5.6742 0 1 0 0 ridgea.dat
1 16 -6 11.7742 -65 0 0 1 0 .9677 0 1 0 0 ridges.dat
1 16 -6 23.9 -65 0 0 1 0 12.1258 0 1 0 0 ridgea.dat
1 16 -6 15 -75 0 0 1 0 .9677 0 1 0 0 ridges.dat
1 16 -6 23.9 -75 0 0 1 0 8.9 0 1 0 0 ridgea.dat
1 16 -6 18.2258 -85 0 0 1 0 .9677 0 1 0 0 ridges.dat
1 16 -6 23.9 -85 0 0 1 0 5.6742 0 1 0 0 ridgea.datStatus
Official
