Official File parts/s/4266s02.dat
File Header:

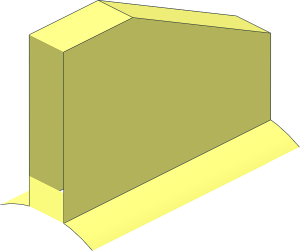

0 ~Wheel 20 x 30 Smooth with 6 Pegholes - 1/6 without Axlehole
0 Name: s\4266s02.dat
0 Author: Niels Bugge [SirBugge]
0 !LDRAW_ORG Subpart UPDATE 2012-03
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2010-05-31 [Philo] Various little improvements
0 !HISTORY 2012-12-28 [PTadmin] Official Update 2012-03
Show contents
2 24 -1.5 -7.842 18 -2.0704 -7.7272 18
2 24 -1.5 -7.842 36 -2.0704 -7.7272 36
2 24 1.5 -7.842 18 2.0704 -7.7272 18
2 24 1.5 -7.842 36 2.0704 -7.7272 36
4 16 2.0704 -7.7272 18 2.0704 -7.7272 36 1.5 -7.842 36 1.5 -7.842 18
4 16 -1.5 -7.842 18 -1.5 -7.842 36 -2.0704 -7.7272 36 -2.0704 -7.7272 18
1 16 0 0 18 -2.07055 0 -7.72741 -7.72741 0 2.07055 0 1 0 48\1-24edge.dat
1 16 0 0 18 2.07055 0 7.72741 -7.72741 0 2.07055 0 -1 0 48\1-24edge.dat
1 16 0 0 18 2.07055 0 7.72741 -7.72741 0 2.07055 0 18 0 48\1-24cyli.dat
1 16 0 0 18 -2.07055 0 -7.72741 -7.72741 0 2.07055 0 18 0 48\1-24cyli.dat
1 16 0 0 36 -2.07055 0 -7.72741 -7.72741 0 2.07055 0 1 0 48\1-24edge.dat
1 16 0 0 36 2.07055 0 7.72741 -7.72741 0 2.07055 0 -1 0 48\1-24edge.dat
2 24 1.5 -7.842 36 1.5 -7.842 18
2 24 -1.5 -7.842 36 -1.5 -7.842 18
2 24 1.5 -20 18 1.5 -7.842 18
2 24 -1.5 -20 18 -1.5 -7.842 18
2 24 1.5 -14 36 1.5 -20 24
2 24 -1.5 -14 36 -1.5 -20 24
1 16 0 -20 21 1.5 0 0 0 1 0 0 0 3 rect3.dat
1 16 0 -10.921 36 -1.5 0 0 0 0 -3.079 0 -1 0 rect3.dat
4 16 -1.5 -14 36 -1.5 -7.842 36 -1.5 -7.842 18 -1.5 -20 18
3 16 -1.5 -20 24 -1.5 -14 36 -1.5 -20 18
4 16 1.5 -20 24 1.5 -14 36 -1.5 -14 36 -1.5 -20 24
4 16 -1.5 -10 18 -1.5 -7.842 18 1.5 -7.842 18 1.5 -10 18
4 16 1.5 -20 18 1.5 -7.842 18 1.5 -7.842 36 1.5 -14 36
3 16 1.5 -20 18 1.5 -14 36 1.5 -20 24
Status:
Official
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 0 18 -2.07055 0 -7.72741 -7.72741 0 2.07055 0 1 0 48\1-24edge.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 0 18 2.07055 0 7.72741 -7.72741 0 2.07055 0 -1 0 48\1-24edge.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 0 18 2.07055 0 7.72741 -7.72741 0 2.07055 0 18 0 48\1-24cyli.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 0 18 -2.07055 0 -7.72741 -7.72741 0 2.07055 0 18 0 48\1-24cyli.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 0 36 -2.07055 0 -7.72741 -7.72741 0 2.07055 0 1 0 48\1-24edge.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 0 36 2.07055 0 7.72741 -7.72741 0 2.07055 0 -1 0 48\1-24edge.dat
- Number in description may need a leading space
