Official File parts/s/43722s01.dat
File Header:

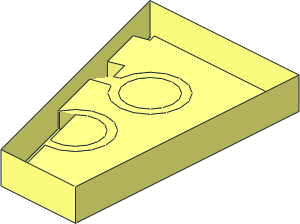

0 ~Wing 2 x 3 Right without Studs and Top Face
0 Name: s\43722s01.dat
0 Author: Donald Sutter [technog]
0 !LDRAW_ORG Subpart UPDATE 2025-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2004-11-06 [PTadmin] Official Update 2004-04
0 !HISTORY 2007-09-05 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2023-03-28 [Sirio] Removed top patternable faces; updated description; BFC CCW
0 !HISTORY 2025-04-27 [OrionP] Official Update 2025-04
Show contents
0 // Primitives
0 BFC INVERTNEXT
1 16 .875 6 25.130 0 -15.415 -0.29 2 0 0 0 0 0.87 box2-5.dat
1 16 16 6 0 0 1 0 0 0 2 26 0 0 rect2p.dat
0 BFC INVERTNEXT
1 16 7.905 6 -21.985 0 1.345 -6.75 2 0 0 0 -4.015 0 box2-5.dat
1 16 0 4 0 0 20 0 4 0 0 0 0 30 box2-5.dat
1 16 10 4 -30 0 0 -10 4 0 0 0 1 0 rect3.dat
0 // Faces
4 16 16 4 26 16 4 -26 2.5 4 -26 -14.83 4 26
4 16 -20 8 30 -14.83 8 26 -14.25 8 24.26 -17.73 8 23.19
4 16 -20 8 30 20 8 30 16 8 26 -14.83 8 26
4 16 20 8 -30 16 8 -26 16 8 26 20 8 30
4 16 20 8 -30 0 8 -30 2.5 8 -26 16 8 -26
4 16 -20 0 30 -20 8 30 -17.73 8 23.19 -17.73 4 23.19
3 16 -20 0 30 -17.73 4 23.19 -14.27 4 12.81
4 16 -20 0 30 -14.27 4 12.81 -11.9 4 5.7 0 0 -30
3 16 0 0 -30 -11.9 4 5.7 -7.66 4 -7.02
4 16 0 0 -30 -7.66 4 -7.02 -7.66 8 -7.02 0 8 -30
0 // Edges
2 24 -20 8 30 -17.73 8 23.19
2 24 0 8 -30 -7.66 8 -7.02
2 24 -17.73 4 23.19 -14.27 4 12.81
2 24 -20 0 30 0 0 -30
0 // Half understud
0 BFC INVERTNEXT
1 16 0 4 -10 0 0 6 0 4 0 -6 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 0 4 -10 6 0 0 0 4 0 0 0 6 3-8cylo.dat
1 16 0 8 -10 0 0 2 0 -1 0 -2 0 0 1-4ring3.dat
1 16 0 8 -10 2 0 0 0 -1 0 0 0 2 3-8ring3.dat
1 16 0 4 -10 0 0 8 0 4 0 -8 0 0 1-4cylo.dat
1 16 0 4 -10 8 0 0 0 4 0 0 0 8 3-8cylo.dat
0 // Complete understud
0 BFC INVERTNEXT
1 16 0 4 10 6 0 0 0 4 0 0 0 6 4-4cylo.dat
1 16 0 8 10 2 0 0 0 -1 0 0 0 -2 7-16ring3.dat
1 16 0 8 10 2 0 0 0 -1 0 0 0 2 2-4ring3.dat
1 16 0 8 10 -6 0 0 0 -1 0 0 0 -6 1-16tndis.dat
1 16 0 4 10 0 0 -8 0 4 0 -8 0 0 3-16cylo.dat
1 16 0 4 10 0 0 8 0 4 0 -8 0 0 3-4cylo.dat
0 // Complementary faces
1 16 -15.99 6 23.725 1.74 -1 0 0 0 2 .535 0 0 rect.dat
1 16 -12.55 6 13.405 1.72 1 0 0 0 2 .595 0 0 rect.dat
0 BFC INVERTNEXT
1 16 -9.415 6 12 0 -.68 .735 2 0 0 0 -.205 -2.205 box2-7.dat
1 16 -13.085 6 9.255 0 1 1.185 2 0 0 0 0 -3.555 rect1.dat
1 16 -9.6456 6 6.3192 0 -1 2.2544 2 0 0 0 0 .6192 rect.dat
1 16 -6.524 6 -5.6408 .8672 1 0 0 0 2 1.2976 0 0 rect2p.dat
1 16 -7.5256 6 -6.9792 .1344 1 0 0 0 2 .0408 0 0 rect.dat
0 BFC INVERTNEXT
1 16 -2.1213 6 -10.8787 0 -.445 1.6763 2 0 0 0 .0885 -5.0328 box2-7.dat
1 16 -.095 6 -17.985 -.095 1 0 0 0 2 .015 0 0 rect2p.dat
0 // Faces
4 16 -11.9 8 5.7 -14.27 8 12.81 -10.83 8 14 -9.36 8 9.59
4 16 -11.9 8 5.7 -9.36 8 9.59 -8 8 10 -6 8 10
3 16 -11.9 8 5.7 -6 8 10 -6 8 7.7038
4 16 -11.9 8 5.7 -6 8 7.7038 -5.5434 8 7.7038 -7.3912 8 6.9384
4 16 -.89 8 -15.823 -7.3912 8 -6.9384 -5.6568 8 -4.3432 -4.2426 8 -5.7574
4 16 -.89 8 -15.823 -.19 8 -17.97 -7.66 8 -7.02 -7.3912 8 -6.9384
4 16 -.89 8 -15.823 0 8 -16 0 8 -18 -.19 8 -17.97
4 16 0 8 -30 -7.66 8 -7.02 -.19 8 -17.97 2.5 8 -26
4 16 -14.27 4 12.81 -17.73 4 23.19 -14.25 4 24.26 -10.83 4 14
4 16 -9.36 4 9.59 -7.3912 4 -6.9384 -7.66 4 -7.02 -11.9 4 5.7
3 16 -9.36 4 9.59 -4.2426 4 -5.7574 -7.3912 4 -6.9384
0 // Edges
2 24 -8 8 10 -8 4 10
2 24 -4.2426 8 -5.7574 -4.2426 4 -5.7574
2 24 -11.9 4 5.7 -7.66 4 -7.02
0 // Conditional lines
5 24 -5.6568 8 -4.3432 -5.6568 4 -4.3432 -3.0616 8 -2.6088 -7.3912 8 -6.9384
5 24 0 8 -16 0 4 -16 2.2962 8 -15.5434 -.89 8 -15.823
5 24 0 8 -18 0 4 -18 3.0616 8 -17.3912 -.19 8 -17.97
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2023-04-30 20:52:59
BFC error
The gaps in hi-res could be closed...
There may be some problems left around the simple underside trapezoid:
4 16 16 4 26 16 4 -26 2.5 4 -26 -14.83 4 26
4 16 16 4 26 16 4 -26 2.5 4 -26 -14.83 4 26
* I'm not happy with the rotated rect
1 16 -13.045 6 9.135 0 1 1.225 2 0 0 0 0 -3.675 rect1.dat
1 16 -13.045 6 9.135 0 1 1.225 2 0 0 0 0 -3.675 rect1.dat
This feature:
1 16 -7.5256 6 -6.9792 .1344 1 0 0 0 2 .0408 0 0 rect.dat
…seems needlessly small, especially as it has an edge line. It could either be made more prominent, or eliminated completely (real-world parts show both variations).
Or why not go back to the 7-16cylo that seems to be the cause of it in the first place?
Hold because of trailing zeroes error in DATHeader.
1 16 -7.5256 6 -6.9792 .1344 1 0 0 0 2 .0408 0 0 rect.dat
…seems needlessly small, especially as it has an edge line. It could either be made more prominent, or eliminated completely (real-world parts show both variations).
Or why not go back to the 7-16cylo that seems to be the cause of it in the first place?
Hold because of trailing zeroes error in DATHeader.
The wing geometry is not correct. Itis not pointed at the blunt end. there is a small parallel section, see all the modern wings in the library nows (65429, 3545) THis is a general issue with some of the older wings that bothers me (along with gaps in the mesh...)
This small section is also missin in the BI mesh
The part is not 40 LDU wide at the bottom, but 38.5, that sould be catered for, and we should redo the 3x6 wings in the same go as they share geometry...
I could do that
This small section is also missin in the BI mesh
The part is not 40 LDU wide at the bottom, but 38.5, that sould be catered for, and we should redo the 3x6 wings in the same go as they share geometry...
I could do that
2024-06-07 08:48:37
I could do that if you want
2024-06-07 09:02:00
- Missing edge at the large understud
2 1 -8 8 10 -8 4 10
- Intersection of the Fillet with studs
2 4 -11.875674 4 5.627022 -11.875674 8 5.627022
2 4 -10.500452 8 5.900485 -10.500452 4 5.900485
2 1 -8 8 10 -8 4 10
- Intersection of the Fillet with studs
2 4 -11.875674 4 5.627022 -11.875674 8 5.627022
2 4 -10.500452 8 5.900485 -10.500452 4 5.900485
2024-06-07 12:46:29
I would say the part is correct. Both designs exists.
In my set of 76918 I have them both, printed Metallic silver
In my set of 76918 I have them both, printed Metallic silver
2024-06-07 14:15:11
Alright, then we need a "b" version, nevertheless, the hold stand due to the intersection with the stud
Fixed missing edge and intersection with stud.
For version b, I'll leave it up to you.
For version b, I'll leave it up to you.
2024-06-10 02:01:27
Why not:
1 4 0 4 -10 8 0 0 0 4 0 0 0 8 1-4cylo.dat
1 4 0 8 -10 2 0 0 0 -1 0 0 0 2 1-4ring3.dat
1 4 0 4 -10 0 0 -8 0 4 0 8 0 0 3-16cylo.dat
1 4 0 8 -10 0 0 -2 0 4 0 2 0 0 3-16ring3.dat
1 4 0 4 -10 8 0 0 0 4 0 0 0 8 1-4cylo.dat
1 4 0 8 -10 2 0 0 0 -1 0 0 0 2 1-4ring3.dat
1 4 0 4 -10 0 0 -8 0 4 0 8 0 0 3-16cylo.dat
1 4 0 8 -10 0 0 -2 0 4 0 2 0 0 3-16ring3.dat
2024-06-10 12:22:05
2025-04-26 10:58:27
2025-04-27 00:31:34
2025-04-27 06:57:30
Release 2025-04
