Official File parts/s/46212aph1s03.dat
File Header:

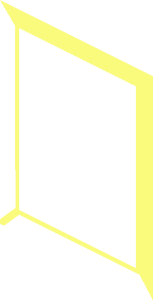

0 ~Window Pane Pattern - Shadowed Area
0 Name: s\46212aph1s03.dat
0 Author: Vincent Messenet [Cheenzo]
0 !LDRAW_ORG Subpart UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
4 16 0 24 -10 .5 24 -10 2 21.5 -10 0 23.5 -10
4 16 2.5 22 -10 2.5 21.5 -10 2 21.5 -10 .5 24 -10
4 16 17.75 21.5 -10 2.5 21.5 -10 2.5 22 -10 18.25 22 -10
4 16 18.25 22 -10 20 24 -10 20 0 -10 17.75 2 -10
3 16 17.75 21.5 -10 18.25 22 -10 17.75 2 -10
3 16 20 0 -10 2.5 2 -10 17.75 2 -10
4 16 2.5 2 -10 20 0 -10 0 0 -10 2 2 -10
4 16 2 21.5 -10 2.5 21.5 -10 2.5 2 -10 2 2 -10
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Vincent Messenet
Licensed under CC BY 4.0
