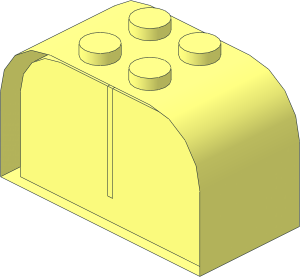

0 ~Brick 2 x 4 x 2 with Curved Top without Front and Back Face
0 Name: s\4744s01.dat
0 Author: James Jessiman
0 !LDRAW_ORG Subpart UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2003-11-16 [cwdee] Created subfile structure
0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2007-09-09 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2022-09-08 [RainbowDolphin] Removed T-junctions by replacing 1-4disc with 1-4chrd
0 !HISTORY 2022-10-03 [RainbowDolphin] Improved geometry of underside supports, based on s\6213s01 by Magnus Forsberg [MagFors]
0 !HISTORY 2022-10-03 [MagFors] Reworked top end of understuds, reduced filesize
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
Show contents
1 16 20 4 0 0 0 6 0 1 1.193 6 0 0 2-4edge.dat
0 BFC INVERTNEXT
1 16 20 5.193 0 6 0 0 0 -1.193 0 0 0 -6 1-4cyls.dat
0 BFC INVERTNEXT
1 16 20 5.193 0 6 0 0 0 -1.193 0 0 0 6 1-4cyls.dat
0 BFC INVERTNEXT
1 16 20 5.193 0 0 0 6 0 .307 0 6 0 0 2-4cyli.dat
1 16 20 4 0 0 0 8 0 1 1.6 -8 0 0 3-16edge.dat
1 16 20 5.5 0 8 0 0 0 -1.5 0 0 0 -8 1-4cyls.dat
1 16 20 1.17 0 8 0 0 5.3 1 0 0 0 -8 1-8edge.dat
1 16 20 4 0 0 0 8 0 1 1.6 8 0 0 3-16edge.dat
1 16 20 5.5 0 8 0 0 0 -1.5 0 0 0 8 1-4cyls.dat
1 16 20 1.17 0 8 0 0 5.3 1 0 0 0 8 1-8edge.dat
1 16 20 4 0 0 0 -6 0 1 0 6 0 0 2-4edge.dat
0 BFC INVERTNEXT
1 16 20 4 0 0 0 -6 0 1.5 0 6 0 0 2-4cyli.dat
1 16 20 4 0 0 0 -8 0 1 0 8 0 0 2-4edge.dat
1 16 20 4 0 0 0 -8 0 1.5 0 8 0 0 2-4cyli.dat
1 16 -20 4 0 0 0 -6 0 1 1.193 6 0 0 2-4edge.dat
0 BFC INVERTNEXT
1 16 -20 5.193 0 -6 0 0 0 -1.193 0 0 0 -6 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -20 5.193 0 -6 0 0 0 -1.193 0 0 0 6 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -20 5.193 0 0 0 -6 0 .307 0 6 0 0 2-4cyli.dat
1 16 -20 4 0 0 0 -8 0 1 1.6 -8 0 0 3-16edge.dat
1 16 -20 5.5 0 -8 0 0 0 -1.5 0 0 0 -8 1-4cyls.dat
1 16 -20 1.17 0 -8 0 0 5.3 1 0 0 0 -8 1-8edge.dat
1 16 -20 4 0 0 0 -8 0 1 1.6 8 0 0 3-16edge.dat
1 16 -20 5.5 0 -8 0 0 0 -1.5 0 0 0 8 1-4cyls.dat
1 16 -20 1.17 0 -8 0 0 5.3 1 0 0 0 8 1-8edge.dat
1 16 -20 4 0 0 0 6 0 1 0 6 0 0 2-4edge.dat
0 BFC INVERTNEXT
1 16 -20 4 0 0 0 6 0 1.5 0 6 0 0 2-4cyli.dat
1 16 -20 4 0 0 0 8 0 1 0 8 0 0 2-4edge.dat
1 16 -20 4 0 0 0 8 0 1.5 0 8 0 0 2-4cyli.dat
1 16 0 4 0 1 0 0 0 -11 0 0 0 1 stud4.dat
1 16 20 5.5 0 1 0 0 0 -10.625 0 0 0 1 stud4a.dat
1 16 -20 5.5 0 1 0 0 0 -10.625 0 0 0 1 stud4a.dat
1 16 0 4 -11.90115 0 0 -1 0 36 0 -4.0994 0 0 box3u4p.dat
2 24 1 40 -7.80115 0 40 -8
2 24 -1 40 -7.80115 0 40 -8
2 24 1 40 -16 -1 40 -16
1 16 0 4 11.90115 0 0 -1 0 36 0 4.0994 0 0 box3u4p.dat
2 24 1 40 7.80115 0 40 8
2 24 -1 40 7.80115 0 40 8
2 24 1 40 16 -1 40 16
2 24 40 48 20 -40 48 20
2 24 -40 48 -20 40 48 -20
4 16 40 48 20 36 48 16 -36 48 16 -40 48 20
4 16 -40 48 20 -36 48 16 -36 48 -16 -40 48 -20
4 16 -40 48 -20 -36 48 -16 36 48 -16 40 48 -20
4 16 40 48 -20 36 48 -16 36 48 16 40 48 20
1 16 0 4 0 20 0 0 0 -1 0 0 0 -16 rect2p.dat
0 BFC INVERTNEXT
1 16 20 20 16 16 0 0 0 0 -16 0 -32 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -20 20 16 -16 0 0 0 0 -16 0 -32 0 1-4cylo.dat
1 16 0 0 0 -20 0 0 0 1 0 0 0 -20 rect2p.dat
1 16 20 20 20 20 0 0 0 0 -20 0 -40 0 1-4cylo.dat
1 16 -20 20 20 -20 0 0 0 0 -20 0 -40 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 0 48 0 36 0 0 0 -28 0 0 0 16 box4o4a.dat
1 16 40 34 0 0 -1 0 0 0 14 -20 0 0 rect3.dat
1 16 -40 34 0 0 1 0 0 0 14 20 0 0 rect3.dat
4 16 36 20 16 20 4 16 -20 4 16 -36 20 16
1 16 20 20 16 16 0 0 0 0 -16 0 1 0 1-4chrd.dat
1 16 -20 20 16 -16 0 0 0 0 -16 0 1 0 1-4chrd.dat
4 16 -20 4 -16 20 4 -16 36 20 -16 -36 20 -16
1 16 20 20 -16 16 0 0 0 0 -16 0 -1 0 1-4chrd.dat
1 16 -20 20 -16 -16 0 0 0 0 -16 0 -1 0 1-4chrd.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug-2x2.dat
